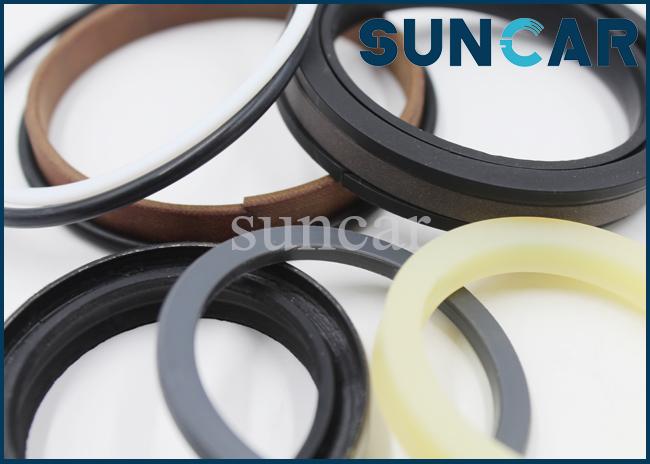

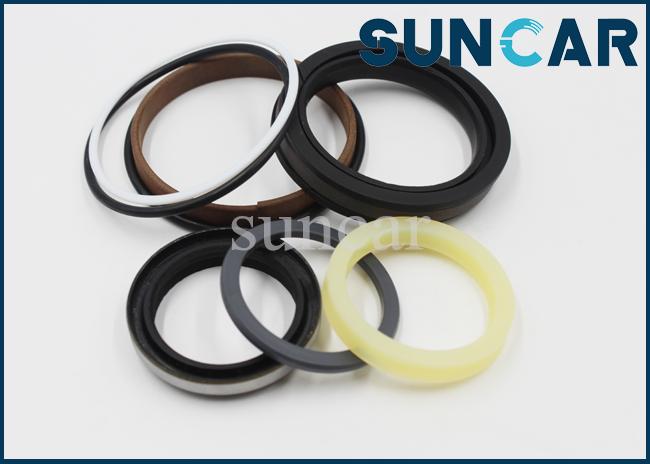

707-99-14760 Komatsu WA200 Wheel Loaders Hydraulic Cylinder Seal Kit Equipment Inner Parts
707-99-14760 Komatsu WA200 Wheel Loaders Hydraulic Cylinder Seal Kit Equipment Inner Parts
| Product name | 707-99-14760 Komatsu WA200 Wheel Loaders Hydraulic Cylinder Seal Kit Equipment Inner Parts |
| Model Number | WA200 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Feature | Corrosion resistance, highly cost effective |
| Packing | PP bag inside, carton box outside |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| MOQ | 1 sets (Acceptiable trial order) |
| Shipping Mode | By air, by sea, by express |
| Part No. | 707-99-14760 / 7079914760 |
| Place of Origin | Guangdong, China(Mainland) |
| Size | Standard size |
| Delivery time | 3-5 days after payment received(public holiday excluded) |
| Type | Hydraulic cylinder seal kit |
| Brand name | SUNCAR |
| CertifiC.A.Tion | ISO9001 |
| AppliC.A.Tion | Komatsu wheel loader replacement |
| Market | Middle East, Europe, North America, South America, Asia, etc |
Hydraulic Seal installation requirements:
1. the hydraulic sealing gaskets and flange sealing surface should be clean
2. hydraulic sealing gasket diameter should be smaller than flange seal face outside and inside diameter should be slightly bigger than a pipe inside diameter
3. Sealing gasket pre-tightening force should not exceed the design rules
4. sealing asbestos gasket compression, it is best to use the torque wrench
5. Installing a sealing gasket, should be in order, in turn, tighten the nut
6. if there is any leakage, must be installed after antihypertensive treatment to replace or adjust the sealing gasket
STEERING CYLINDER (INNER PARTS) WA200-5L Komatsu Parts on group:
| Pos. | Part No | Qty | Parts name |
| 707-00-07H80 | [2] | CYLINDER ASSEMBLY,(FINAL COATING) | |
| 707-00-0C190 | [2] | CYLINDER ASSEMBLY | |
| 1. | 707-11-70100 | [1] | CYLINDER |
| 2. | 707-76-40020 | [1] | BUSHING |
| 3. | 419-09-11120 | [2] | SEAL,DUST (KIT) |
| 4. | 07040-11007 | [1] | PLUG |
| 5. | 07002-11023 | [1] | O-RING (KIT) |
| 6. | 707-29-70730 | [1] | HEAD |
| 7. | 07177-04025 | [1] | BUSHING |
| 8. | 707-51-40030 | [1] | PACKING,ROD (KIT) |
| 9. | 198-63-75190 | [1] | SEAL,DUST (KIT) |
| 10. | 07179-12052 | [1] | RING,SNAP |
| 11. | 07000-12065 | [1] | O-RING (KIT) |
| 12. | 07146-02066 | [1] | RING,BACK-UP (KIT) |
| 13. | 07000-12070 | [1] | O-RING (KIT) |
| 14. | 707-58-40A60 | [1] | ROD,PISTON |
| 17. | 707-36-70270 | [1] | PISTON |
| 18. | 707-44-70110 | [1] | RING,PISTON (KIT) |
| 19. | 07156-00710 | [1] | RING,WEAR (KIT) |
| 20. | 707-67-30030 | [1] | NUT |
| 21. | 07020-00000 | [1] | FITTING |
| 22. | 07020-00675 | [1] | FITTING |
| 23. | 02896-11012 | [1] | O-RING (KIT) |
| 707-99-14760 | [2] | SERVICE KIT,STEERING CYLINDER |
Order Process:
1. Getting your inquiry (Including: machine model, part name, order quantity, data of items, delivery term)
2. Quoting our competitive price for you
3. Place an order after approving the quotation or products
4. We will send Proforma Invoice or sales confirmation
5. You prepay by T/T or L/C or Western Union or ESCROW through bank
6. we will starting to produce after we get your kind payment
7. Packing
8. Shipping the goods to your(our)forwarder
9. Sending all doc for your custom clearance
10. Time to reorder
