Cylinder Repair Kit 2440-9230KT 24409230KT Doosan Excavator Boom Sealing Kit For SOLAR 130LC-V
Cylinder Repair Kit 2440-9230KT Doosan Excavator Boom Sealing Kit For SOLAR 130LC-V
| Product name | Doosan Boom Sealing Kit |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| MOQ | Trial order acceptable |
| Quality | Wearable, high pressure resistance, good performance... |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| Part No. | 2440-9230KT |
| Model Number |
Doosan S150LC-7B, SOLAR 130LC-V, SOLAR 140LC-V, SOLAR 155LC-V |
| Brand name | SUNCAR |
| Type | Doosan excavator replacement kits |
| Packing | PP bag inside, carton box outside |
| CertifiC.A.Tion | ISO9001 |
| Availability | In stock |
| Color | Black/ brown/ white |
| Condition | New, unopened |
Storage Precautions:
When storing seals, please pay attention to the following items:
1. Do not open the seal package when it is not necessary, otherwise dust will stick to the seal or scratch the seal.
2. Store in a cool place, not in direct sunlight. Ultraviolet rays and water vapor will accelerate the deterioration and dimensional changes of rubber and plastics.
3. When storing unpackaged products, be careful not to stick or pack impurities and store them in their original state. Nylon should be sealed tightly to prevent dimensional changes.
4. Do not place the seals close to heat sources, such as boilers, furnaces, etc. The heat will accelerate the aging of the seals.
5. Do not place the seal near the motor or where ozone is generated.
6. Do not hang the seal with needles, iron wire or rope, otherwise it will deform the seal and damage the lip.
7. The surface of the seal sometimes has color changes or white powder (blooming phenomenon), which will not affect the performance of the seal.

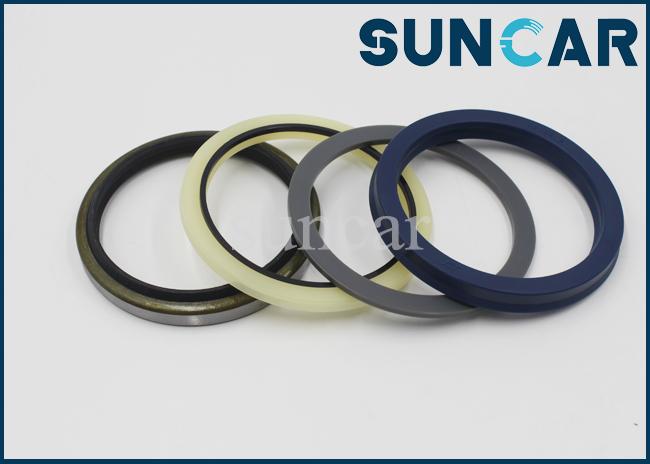

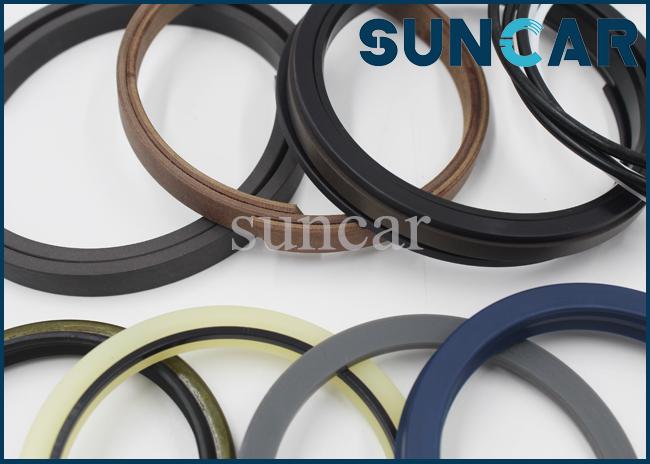

Product Show:

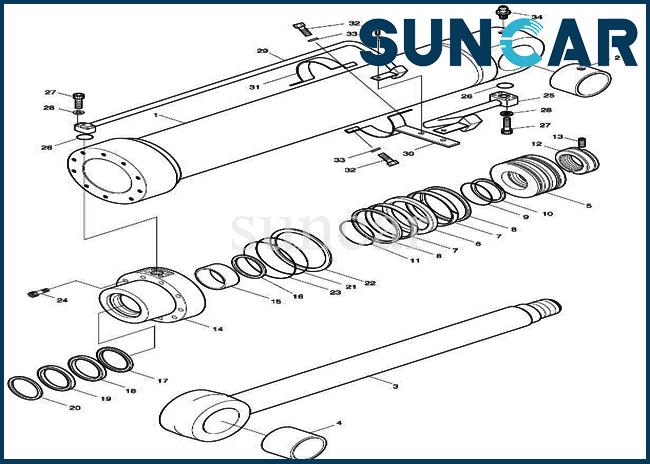

Related Parts:
| Pos. | Part No | Qty | Parts name |
| *. | 2440-9230KT | [1] | SEAL KIT;BOOM CYL. |
| -. | 2440-9230 | [1] | CYLINDER;BOOM(L) |
| -. | 2440-9230A | [1] | CYLINDER;BOOM(L.H) |
| 1 | 53B370-1 | [1] | TUBE ASSEMBLY |
| 10 | 53B317-0 | [1] | RING;BACK UP |
| 11 | 00C302-0 | [1] | RING;CUSHION |
| 12 | 53B381-0 | [1] | NUT;PISTON |
| 13 | E1330544 | [1] | SCREW;SET |
| 14 | 53B382-1 | [1] | COVER;ROD |
| 15 | E8412169 | [1] | DU-BUSH |
| 16 | 00M322-0 | [1] | RING;RETAINING |
| 17 | E5500220 | [1] | SEAL;BUFFER |
| 18 | E5302740 | [1] | U-PACKING |
| 19 | E6020220 | [1] | WIPER;DUST |
| 2 | 53B339-0 | [1] | BUSH;STEEL |
| 20 | 00M312-0 | [1] | RING;RETAINING |
| 21 | E6311501 | [1] | O-RING |
| 22 | 53B318-0 | [1] | RING;BACK UP |
| 23 | E6311521 | [1] | O-RING |
| 24 | E0501839 | [10] | BOLT;SOCKET HEX. |
| 25 | 53B348-0 | [1] | PIPE ASSEMBLY-H |
| 26 | E6300471 | [2] | O-RING |
| 27 | E0500936 | [8] | BOLT;SOCKET |
| 28 | E3110092 | [8] | WASHER;SPRING |
| 29 | 53B384-0 | [1] | PIPE ASSEMBLY-R |
| 3 | 53B376-1 | [1] | ROD ASSEMBLY |
| 30 | 53B385-0 | [1] | PIPE BAND ASSEMBLY |
| 31 | 03U345-0 | [1] | BAND;PIPE |
| 32 | E0020682 | [4] | BOLT;HEX. |
| 33 | E3110102 | [4] | WASHER;SPRING |
| 34 | E8841022 | [1] | NIPPLE;GREASE |
| 4 | 53B339-0 | [1] | BUSH;STEEL |
| 5 | 53B379-0 | [1] | PISTON |
| 6 | E5130200 | [1] | SEAL;SLIPPER |
| 7 | 00W240-0 | [2] | RING;WEAR |
| 8 | 00R095-0 | [2] | RING;SLYD |
| 9 | E6490085 | [1] | O-RING |
