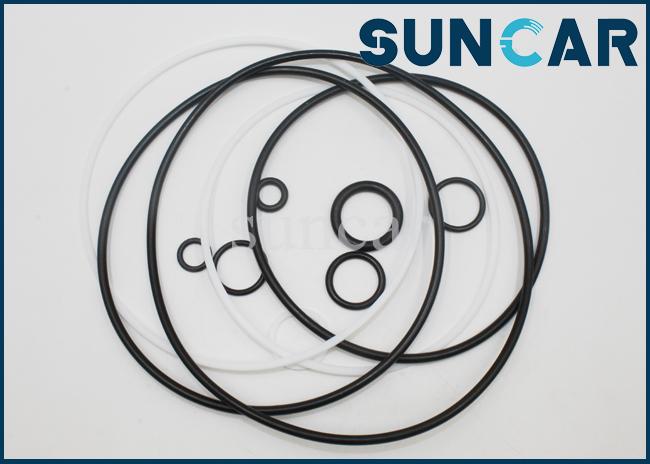

Repair Kit 708-7R-00053KT Swing Motor Sealing Kit PC50UU-2 Komatsu Excavator
Repair Kit 708-7R-00053KT Swing Motor Sealing Kit PC50UU-2 Komatsu Excavator
| Product Name | Repair Kit 708-7R-00053KT Swing Motor Sealing Kit PC50UU-3 Komatsu Excavator |
| Part Number | 708-7R-00053KT |
| Model Number | Komatsu PC50UU-2 |
| Warranty | Unavailable |
| Place of Origin | Guangdong, China |
| Applicable Industries | Construction works |
| Brand name | SUNCAR |
| Standard | Standard size |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| Market | South America, North America, Europe, Asia, Middle East, etc |
| CertifiC.A.Tion | ISO9001 |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| AppliC.A.Tion | Excavator seal kit, excavator construction machinery |
| Packing | PP bag inside, carton box outside |

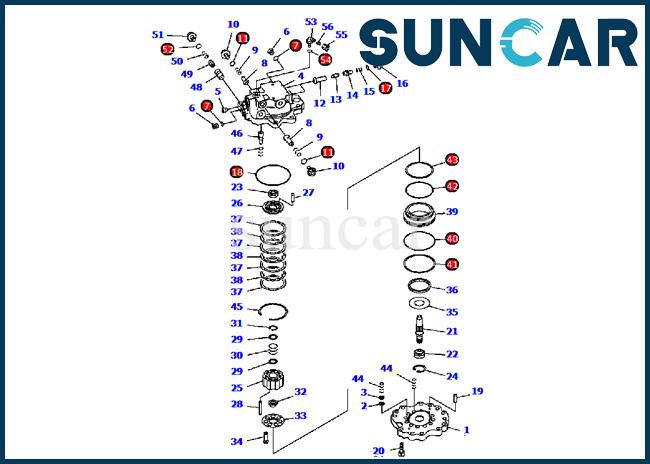

PC50UU-2 Swing Motor Relation Repair Parts:
| Pos. | Part No | Parts name | QTY | serial number |
| 708-7R-00053 | MOTOR ASSEMBLY | 1 | SN: 12804-UP | |
| 708-7R-00052 | MOTOR ASSEMBLY | 1 | SN: 12801-12803 | |
| 708-7R-00050 | MOTOR ASSEMBLY | 1 | SN: 12800-12800 | |
| 708-7R-01032 | • MOTOR SUB ASSEMBLY | 1 | SN: 12804-UP | |
| 708-7R-01031 | • MOTOR SUB ASSEMBLY | 1 | SN: 12801-12803 | |
| 708-7R-01030 | • MOTOR SUB ASSEMBLY | 1 | SN: 12800-12800 | |
| 1 | 708-7R-11611 | •• PLATE,SWASH | 1 | SN: 12800-UP |
| 2 | 708-7R-11710 | •• WASHER | 1 | SN: 12800-UP |
| 3 | 708-7R-11720 | •• FILTER | 1 | SN: 12800-UP |
| 708-7R-04031 | •• HOUSING SUB ASSEMBLY | 1 | SN: 12801-UP | |
| 708-7R-04030 | •• HOUSING SUB ASSEMBLY | 1 | SN: 12800-12800 | |
| 4 | ••• HOUSING | 1 | SN: 12801-UP | |
| 4 | ••• HOUSING | 1 | SN: 12800-12800 | |
| 5 | ••• PLUG | 3 | SN: 12800-UP | |
| 6 | 708-7R-11220 | •• PLUG | 2 | SN: 12800-UP |
| 7 | 07002-11223 | •• O-RING | 2 | SN: 12800-UP |
| 8 | 708-7R-11210 | •• VALVE | 2 | SN: 12800-UP |
| 9 | 722-10-91130 | •• SPRING | 2 | SN: 12800-UP |
| 10 | 709-32-12861 | •• PLUG | 2 | SN: 12800-UP |
| 11 | 07002-11823 | •• O-RING | 2 | SN: 12800-UP |
| 708-7R-03020 | •• VALVE SUB ASSEMBLY | 2 | SN: 12800-UP | |
| 12 | 708-7R-11230 | ••• VALVE | 1 | SN: 12800-UP |
| 13 | 708-7R-11240 | ••• POPPET | 1 | SN: 12800-UP |
| 14 | 708-7R-11250 | ••• PLUG | 1 | SN: 12800-UP |
| 15 | 722-10-91130 | •• SPRING | 2 | SN: 12800-UP |
| 16 | 708-7R-11270 | •• PLUG | 2 | SN: 12800-UP |
| 17 | 07002-11823 | •• O-RING | 2 | SN: 12800-UP |
| 18 | 07000-02125 | •• O-RING | 1 | SN: 12800-UP |
| 19 | 720-68-19610 | •• PIN | 2 | SN: 12800-UP |
| 20 | 01252-61230 | •• BOLT | 8 | SN: 12800-UP |
| 21 | 708-7R-12111 | •• SHAFT | 1 | SN: 12800-UP |
| 22 | 708-7R-12140 | •• BEARING | 1 | SN: 12800-UP |
| 23 | 708-7R-12150 | •• BEARING | 1 | SN: 12800-UP |
| 24 | 04065-04218 | •• RING | 1 | SN: 12800-UP |
| 25 | 708-7R-13111 | •• BLOCK,CYLINDER | 1 | SN: 12800-UP |
| 26 | 708-7R-13220 | •• PLATE,VALVE | 1 | SN: 12800-UP |
| 27 | 720-68-19610 | •• PIN | 1 | SN: 12800-UP |
| 28 | 708-7R-13540 | •• PIN | 3 | SN: 12800-UP |
| 29 | 708-7R-13530 | •• WASHER | 2 | SN: 12800-UP |
| 30 | 708-7R-13560 | •• SPRING | 1 | SN: 12804-UP |
| 30 | 708-7R-13550 | •• SPRING | 1 | SN: 12800-12803 |
| 31 | 04065-03012 | •• RING | 1 | SN: 12800-UP |
| 32 | 708-7R-13510 | •• GUIDE,RETAINER | 1 | SN: 12800-UP |
| 33 | 708-7R-13340 | •• RETAINER,SHOE | 1 | SN: 12800-UP |
| 34 | 708-7R-13310 | •• PISTON SUB ASSEMBLY | 7 | SN: 12800-UP |
| 35 | 708-7R-13410 | •• PLATE,THRUST | 1 | SN: 12800-UP |
| 36 | 708-7R-13581 | •• SPACER | 1 | SN: 12804-UP |
| 36 | 708-7R-13570 | •• SPACER | 1 | SN: 12800-12803 |
| 37 | 708-7R-15130 | •• PLATE | 4 | SN: 12800-UP |
| 38 | 708-7R-15121 | •• DISC | 3 | SN: 12800-UP |
| 39 | 708-7R-15140 | •• PISTON,BRAKE | 1 | SN: 12800-UP |
| 40 | 07000-12110 | •• O-RING | 1 | SN: 12800-UP |
| 41 | 708-7R-15170 | •• RING,BACK-UP | 1 | SN: 12800-UP |
| 42 | 07000-12095 | •• O-RING | 1 | SN: 12800-UP |
| 43 | 07001-02095 | •• RING,BACK-UP | 1 | SN: 12800-UP |
| 44 | 708-7R-15150 | •• SPRING | 12 | SN: 12800-UP |
| 45 | 708-7R-15160 | •• RING | 1 | SN: 12800-UP |
| 46 | 708-7R-15712 | •• PISTON | 1 | SN: 12800-UP |
| 47 | 708-7R-15722 | •• SPRING | 1 | SN: 12800-UP |
| 708-7R-03010 | •• VALVE SUB ASSEMBLY | 1 | SN: 12800-UP | |
| 48 | ••• VALVE | 1 | SN: 12800-UP | |
| 49 | ••• FILTER | 1 | SN: 12800-UP | |
| 50 | 708-7R-15670 | •• SPRING | 1 | SN: 12800-UP |
| 51 | 706-73-72680 | •• PLUG | 1 | SN: 12800-UP |
| 52 | 07002-11223 | •• O-RING | 1 | SN: 12800-UP |
| 53 | 07235-10422 | •• ELBOW | 1 | SN: 12801-UP |
| 54 | 07002-12034 | •• O-RING | 1 | SN: 12801-UP |
| 55 | 07221-20422 | •• NUT,SLEEVE | 1 | SN: 12801-UP |
| 56 | 07222-00414 | •• PLUG | 1 | SN: 12801-UP |
Products show:
Thanks for viewing our listings. Please click "Ask A Question", or call us if you have a parts need that you do not see listed here. We will do our best to loC.A.Te the parts you need, and make every effort to save you money.
Q1. How to make payment? A: We accept multiple payment method like Bank Transfer, Western Union, Money Gram, Credit Card, Paypal and so on.
Q2. How to make delivery? A: We always ship the goods by DHL, FEDEX, UPS, TNT, EMS. Shipping methods are multiple.
Q3. How long will my goods come to me? A: It will take 3-5 days to united states, and 3-8 days to other countries. And different shipping methods, the time is different. Please consult to us when you make inquiries.
Q4. How can I know if my order is shipped? A: We will email you the shipping information like tracking number once your order is shipped.
Q5. If the product does not fit to my machine, can I return the goods? A: We offer exchange service for defective products during the warranty time as well as refund service. Please contact us before returning the products. Customer will pay the freight of returning goods, and we are responsible for exchanging and sending the replaced or repaired items to you.
Q6. Who will pay importing duties? A: Our quotation does not includes importing cost such as duties. So our customer has to pay these fees according to importing policy of their country. If our customer has special requirement for the declared value, you can tell us.
