PC60-7 Komatsu Swing Motor 708-7T-00480KT Sealing Kit Excavator Inner Parts Repair Kit
PC60-7 Komatsu Swing Motor 708-7T-00480KT Sealing Kit Excavator Inner Parts Repair Kit
| Product name | PC60-7 Komatsu Swing Motor 708-7T-00480KT Sealing Kit Excavator Inner Parts Repair Kit |
| Model Number | PC60-7 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Hardness | 70 - 95 shores A |
| Packing | PP bag inside, carton box outside |
| Payment Terms | Western Union, L/C, T/T, , D/A, D/P |
| Delivery time | 3-5 Days |
| Shipping Mode | By air, by sea, by express ( Fedex, UPS, DHL, TNT, etc.) |
| Part No. | 708-7T-00480KT |
| Warranty | Unavailable |
| Size | Standard size |
| Type | Swing motor seal kit |
| Brand name | SUNCAR |
| CertifiC.A.Tion | ISO9001 |
| AppliC.A.Tion | KATO excavator |
SpecifiC.A.Tions:
1. Good quality SUNCARSUNCARSUNCARVO.L.VO cylinder repair kit
2. Large warehouse inventory
3. The most competitive price
4. Quick lead time
5. Ensure product quality
6. By a long time of testing, it proved to be excellent
7. Advanced manufacturing technology and production technology
Basic Requirements for Sealing Materials:
1. Have certain mechanical properties, such as tensile strength, elongation, etc.;
2. Appropriate elasticity and hardness, small compression set;
3. High temperature and low temperature resistance, no decomposition or softening at high temperature, and no hardening at low temperature;
4. It is compatible with the working medium, without swelling, decomposition, hardening, etc.;
5. Good oxygen resistance and aging resistance, durable;
6. Abrasion resistance, no corrosion to metal;
7. Easy to shape and process, low price.

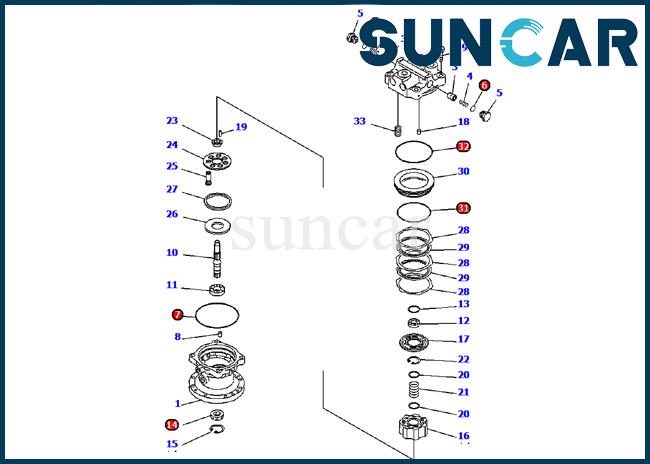

PC60-7 Model Replacement Parts:
| Pos. | Part No | Parts name | QTY | Serial Number |
| 708-7T-00480 | MOTOR ASSEMBLY | 1 | SN: 59571-UP | |
| 708-7T-01210 | • MOTOR SUB ASSEMBLY | 1 | SN: 59571-UP | |
| 1 | 708-7T-11240 | •• CASE,MOTOR | 1 | SN: 59571-UP |
| 2 | 708-7T-11670 | •• COVER,END | 1 | SN: 59571-UP |
| 3 | 706-73-72420 | •• VALVE | 2 | SN: 59571-UP |
| 4 | 706-73-72440 | •• SPRING | 2 | SN: 59571-UP |
| 5 | 706-73-72430 | •• PLUG | 2 | SN: 59571-UP |
| 6 | 07002-12434 | •• O-RING | 2 | SN: 59571-UP |
| 7 | 708-7T-51210 | •• O-RING | 1 | SN: 59571-UP |
| 8 | 720-68-19610 | •• PIN | 2 | SN: 59571-UP |
| 9 | 01010-81250 | •• BOLT | 4 | SN: 59571-UP |
| 10 | 708-7T-12420 | •• SHAFT | 1 | SN: 59571-UP |
| 11 | 708-7T-12240 | •• BEARING | 1 | SN: 59571-UP |
| 12 | 708-7T-12250 | •• BEARING | 1 | SN: 59571-UP |
| 13 | 708-7T-05020 | •• SPACER KIT | 1 | SN: 59571-UP |
| 14 | 708-7T-12230 | •• SEAL,OIL | 1 | SN: 59571-UP |
| 15 | 04065-04518 | •• RING,SNAP | 1 | SN: 59571-UP |
| 16 | 708-7T-13140 | •• BLOCK,CYLINDER | 1 | SN: 59571-UP |
| 17 | 708-7T-13290 | •• PLATE,VALVE | 1 | SN: 59571-UP |
| 18 | 720-68-19610 | •• PIN | 1 | SN: 59571-UP |
| 19 | 708-7T-13540 | •• PIN | 3 | SN: 59571-UP |
| 20 | 708-7T-13530 | •• WASHER | 2 | SN: 59571-UP |
| 21 | 708-7T-13570 | •• SPRING | 1 | SN: 59571-UP |
| 22 | 04065-03815 | •• RING | 1 | SN: 59571-UP |
| 23 | 708-7T-13510 | •• GUIDE,RETAINER | 1 | SN: 59571-UP |
| 24 | 708-7T-13342 | •• RETAINER,SHOE | 1 | SN: 59571-UP |
| 25 | 708-7T-13352 | •• PISTON SUB ASSEMBLY | 7 | SN: 59571-UP |
| 26 | 708-7T-53420 | •• PLATE,THRUST | 1 | SN: 59571-UP |
| 27 | 708-7T-13710 | •• SPACER |
1 |
SN: 59571-UP |
| 28 | 708-7T-52512 | •• PLATE | 3 | SN: 59571-UP |
| 29 | 708-7T-15120 | •• DISC | 2 | SN: 59571-UP |
| 30 | 708-7T-15140 | •• PISTON,BRAKE | 1 | SN: 59571-UP |
| 31 | 07000-12130 | •• O-RING | 1 | SN: 59571-UP |
| 32 | 708-7T-55220 | •• O-RING | 1 | SN: 59571-UP |
| 33 | 708-7T-15150 | •• SPRING | 4 | SN: 59571-UP |
PRODUCTS SHOW:
