China 706-77-10103 Swing Motor Seal Kit For Komatsu PC300-3 PC400-3 Excavator for sale

706-77-10103 Swing Motor Seal Kit For Komatsu PC300-3 PC400-3 Excavator

Name: 706-77-10103 Swing Motor Seal Kit For Komatsu PC300-3 PC400-3 Excavator
Brand: Guangzhou Suncar Seals Co., Ltd.

Price Negotiable

Price: Negotiation

MOQ: Trial order acceptable

Delivery Time: 3-5 days after payment received(public holiday excluded)

Brand: SUNCAR

Product Description

Motor Assy 706-77-10103 Swing Motor Seal Kit For Komatsu PC300-3 PC400-3 Excavator

Product Name	Swing Motor Seal Kit
Part No.	Kom- 706-77-10103KT
Material	PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ
Feature	Resistance to high pressure, oil, weather, abrasion, solvent
Hardness	70-90 Shore A
Color	Black,White or other
Size	Standard Size
MOQ	We accept trial order
Packing	PP bag inside, carton box outside( According to your requirements)
Delivery Time	3-5 days after payment received(public holiday excluded)
Payment	Western Union, L/C, T/T, , D/A, D/P etc.
Port	HUAGNPU,China (Mainland)
Express	Fedex,TNT,UPS,DHL
Customized	OEM & ODM are welcomed
AppliC.A.Tion	Excavator Inner Systerm
Condition	New

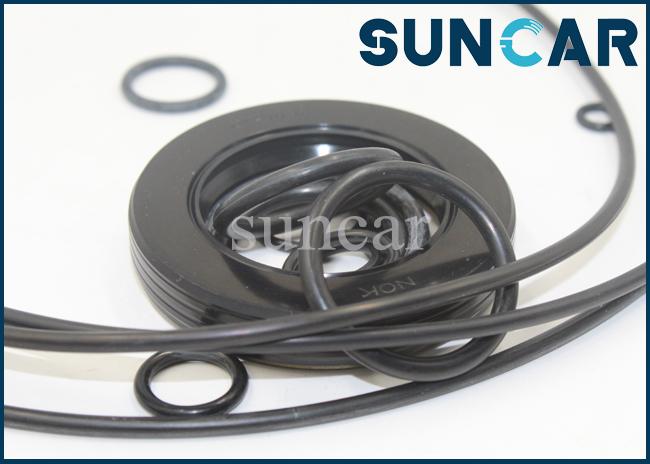

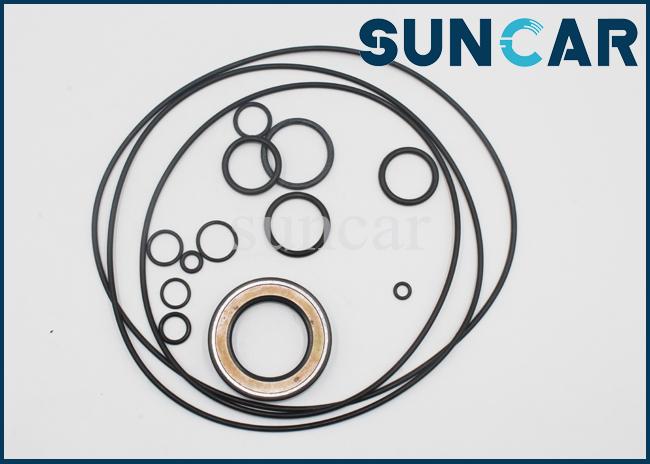

Products Show:

Our Advantage:

Experienced sealing products supplier.
Professional design team and sales department for your service.
All the questions will be dealt in 24 hours.
Stable quality---coming from good materials.
Lower price---Not cheapest but the lowest at the same quality.
Good service---satisfied service before and after sale.
Your inquiry will be replied in one working day.

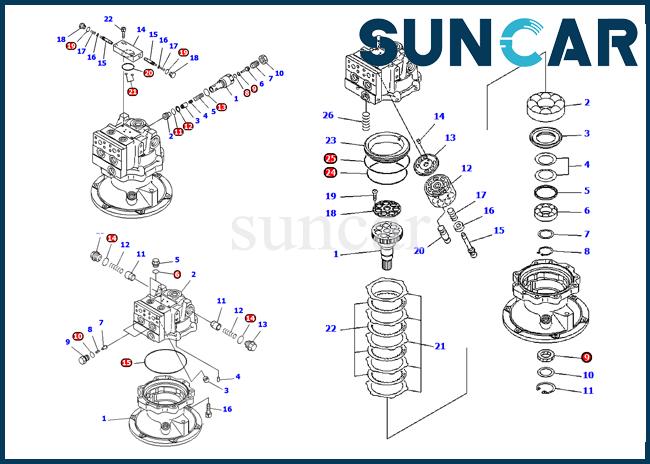

Komatsu PC300-3 Swing Motor Relation Parts:

Pos.	Part No	Parts name	QTY
	706-77-10103	MOTOR ASSEMBLY	1
1	706-87-42190	• BLOCK,CYLINDER	1
2	706-77-42160	• PISTON SUB ASSEMBLY	7
3	706-77-42081	• SHAFT,CENTER	1
4	706-77-42110	• SPRING	1
5	706-77-43130	• RING,CENTER	1
6	706-77-42071	• BUSHING	1
7	706-77-42830	• PLATE,VALVE	1
7	706-77-42851	• PLATE,VALVE	1
8	04020-01024	• PIN,DOWEL	1
9	706-77-42260	• RETAINER	1
10	706-77-42861	• SHAFT,DRIVE	1
10	706-77-42860	• SHAFT,DRIVE	1
11	706-75-41271	• SCREW	7
12	706-77-42022	• CASE,BRAKE	1
12	706-77-42021	• CASE,BRAKE	1
13	706-77-42881	• BEARING	1
13	706-77-42880	• BEARING	1
14	706-77-42890	• BEARING	1
15	706-77-42041	• SEAT	1
15	706-77-42040	• SEAT	1
16	706-77-42051	• SPRING	2
16	706-77-42050	• SPRING	2
17	706-77-05010	• SPACER KIT	1
17	706-77-42030	• SPACER	1
18	04064-06525	• RING,SNAP	1
19	706-77-42060	• COVER	1
20	07000-02115	• O-RING	1
21	706-77-42920	• SEAL,OIL	1
22	04071-00130	• RING,SNAP	1
23	706-77-91331	• PLATE	1
24	706-77-91341	• PLATE	4
25	706-77-91350	• DISC	4
26	706-77-91490	• PISTON,BRAKE	1
26	706-77-91390	• PISTON,BRAKE	1
27	07000-15200	• O-RING	1
28	07001-05200	• RING,BACK-UP	1
29	07000-15220	• O-RING	1
30	07001-05220	• RING,BACK-UP	1
31	07000-05250	• O-RING	1
32	706-77-91410	• SPRING	2
33	706-75-42830	• PIN,DOWEL	1
34	01010-51860	• BOLT	8
35	01602-21852	• WASHER,SPRING	8
1	706-77-72112	• HOUSING	1
2	706-77-72130	• VALVE	2
3	706-77-72140	• SPRING	2
4	706-77-72150	• PLUG	2
5	07002-14234	• O-RING	2
6	706-77-72170	• PLUG	7
7	07002-12434	• O-RING	7
8		•• SLEEVE	1
9		•• VALVE	1
10		•• PISTON	1
11		•• SPRING	1
12		•• O-RING	1
13		•• RING,BACK-UP	1
14		•• PLUG	1
15		•• SCREW	1
16		•• NUT	1
17		•• SEAT,VALVE	1
18	07000-23022	•• O-RING	1
19	07001-03022	•• RING,BACK-UP	2
20	07002-13634	•• O-RING	1
