EC240C SUNCARVO.L.VO VOE14596398 Travel Motor Sealing Kit EC250D Excavator 14596398 Seal Kit
Price:
Negotiation
MOQ:
Trial order acceptable
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
EC240C SUNCARSUNCARSUNCARVO.L.VO VOE14596398 Travel Motor Sealing Kit EC250D Excavator 14596398 Seal Kit

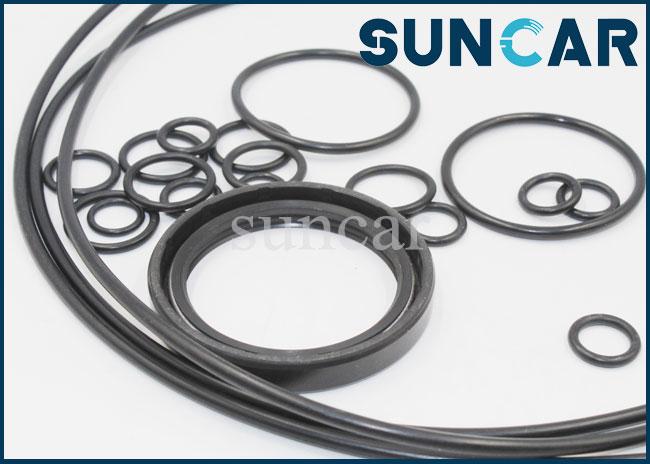

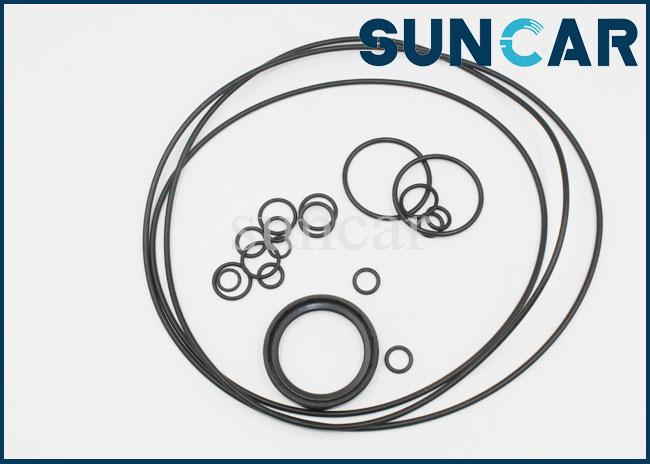

| Product Name | Travel motor seal kit |
| Model Number | EC240C, EC250D, EC250E, EC290B, EC290C, EC300D, EC330B, EC330C, EC340D, EC360B, EC360C, EC380D |
| Place of Origin | Guangdong, China |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Part Number | VOE14596398 |
| Sample/Stock | Available |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| Size | Standard size |
| Applicable Industries | Machinery repair shops, construction works, other |
| CertifiC.A.Tion | ISO9001 |
| Style | Mechanical seal |
| Marketing Type | Ordinary product |
| Quality | OEM standard, high performance |
| Warranty | Unavailable |
| AppliC.A.Tion | Excavators |
| Color | As shwon |
| MOQ | Trial order acceptable |

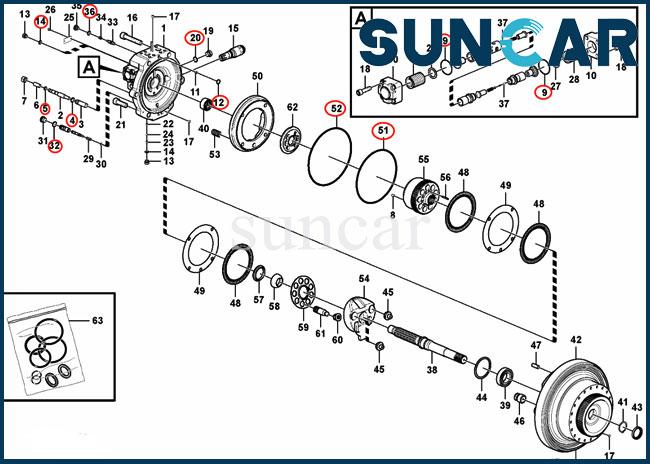

Parts On Group Travel Motor:
| Pos. | Part No | Qty | Parts name |
| VOE14592002 | [1] | Travel motor | |
| 1 | VOE14565334 | [1] | Casing |
| 2 | VOE14565337 | [1] | Rod |
| 3 | VOE14565336 | [1] | Pin |
| 4 | VOE983507 | [1] | O-ring |
| 5 | VOE983501 | [1] | O-ring |
| 6 | VOE14528296 | [1] | Screw |
| 7 | VOE997410 | [1] | Hexagon nut |
| 8 | VOE14551525 | [1] | Pin |
| 9 | VOE990585 | [2] | O-ring |
| 10 | SA7242-10540 | [2] | Cover |
| 11 | SA7242-10750 | [1] | Screw |
| 12 | VOE983497 | [1] | O-ring |
| 13 | SA9415-31021 | [7] | Plug |
| 14 | VOE993320 | [7] | O-ring |
| 15 | SA7242-11580 | [2] | Relief valve |
| 16 | SA9016-22019 | [2] | Hex. socket screw |
| 17 | VOE14560637 | [9] | Plug |
| 18 | SA9016-11209 | [8] | Hex. socket screw |
| 19 | SA9415-31041 | [2] | Plug |
| 20 | VOE993322 | [2] | O-ring |
| 21 | VOE984229 | [4] | Hex. socket screw |
| 22 | SA7242-10710 | [2] | Clamping plate |
| 23 | SA7242-10720 | [2] | Guard |
| 24 | VOE14880998 | [2] | Ball |
| 25 | [1] | Nameplate | |
| 26 | SA1010-11360 | [2] | Screw |
| 27 | SA7242-10520 | [2] | Washer |
| 28 | SA7242-10530 | [2] | Spring |
| 29 | SA7242-11560 | [1] | Spring |
| 30 | VOE14507000 | [1] | Spacer |
| 31 | SA7242-11290 | [1] | Plug |
| 32 | VOE983509 | [1] | O-ring |
| 33 | VOE14506993 | [1] | Spool |
| 34 | VOE14506994 | [1] | Spring |
| 35 | VOE14506995 | [1] | Plug |
| 36 | VOE983505 | [1] | O-ring |
| 37 | VOE14880996 | [2] | Ball |
| 38 | VOE14565331 | [1] | Shaft |
| 39 | VOE14640025 | [1] | Roller bearing |
| 40 | VOE14506955 | [1] | Bearing |
| 41 | VOE914472 | [1] | Snap ring |
| 42 | VOE14568909 | [1] | Casing |
| 43 | SA7242-10590 | [1] | Seal |
| 44 | SA8320-01810 | [1] | Retaining ring |
| 45 | VOE14506958 | [2] | Pivot |
| 46 | VOE14506959 | [1] | Piston |
| 47 | VOE14551526 | [5] | Pin |
| 48 | VOE14506982 | [3] | Plate |
| 49 | VOE14506984 | [2] | Plate |
| 50 | VOE14565332 | [1] | Piston |
| 51 | VOE960262 | [1] | O-ring |
| 52 | VOE990849 | [1] | O-ring |
| 53 | VOE14568004 | [10] | Spring |
| 54 | VOE14506962 | [1] | Plate |
| 55 | VOE14552645 | [1] | Cylinder block |
| 56 | VOE14506967 | [9] | Spring |
| 57 | VOE14506968 | [1] | Spacer |
| 58 | VOE14506970 | [1] | Guide |
| 59 | VOE14506972 | [1] | Plate |
| 60 | VOE14506977 | [9] | Pad |
| 61 | VOE14551798 | [9] | Piston |
| 62 | VOE14506978 | [1] | Plate |
| 63 | VOE14596398 | [1] | Seal |
The pictures are for reference only and the physical drawings shall prevail. If you have any questions, please contact our technical support team.
