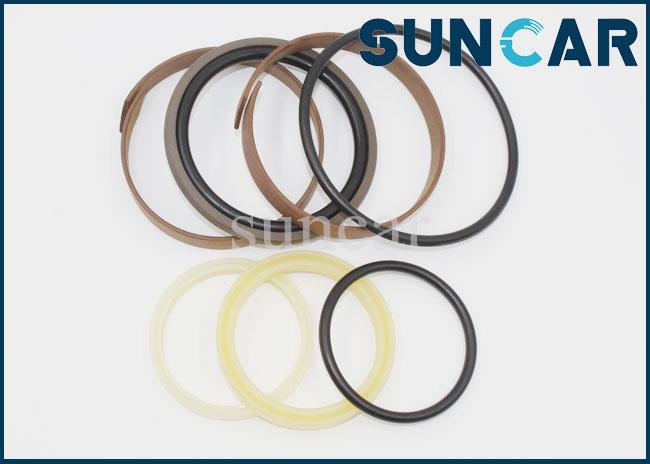

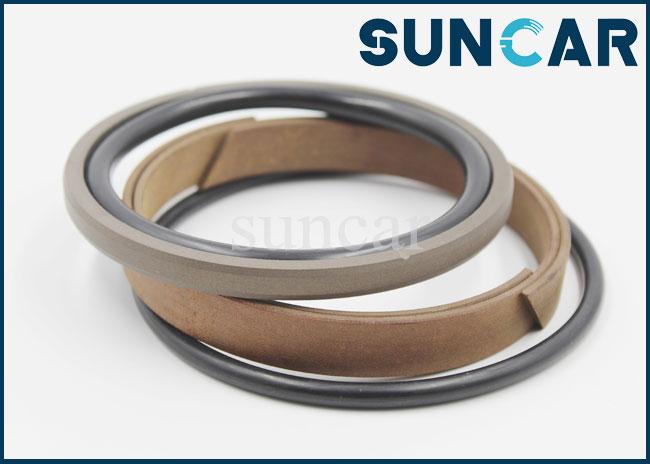

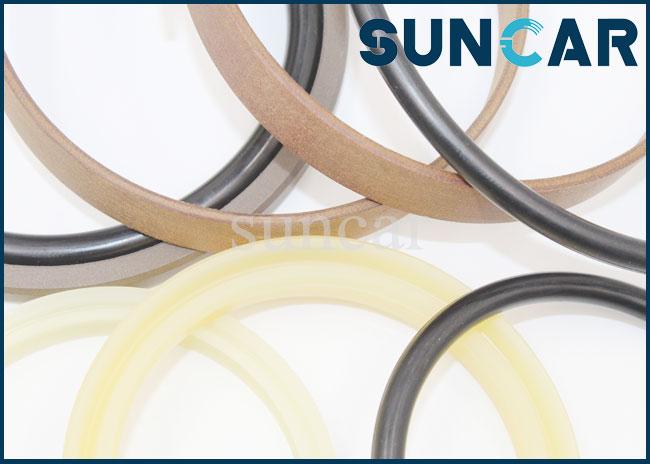

Hydraulic Seals 120mm cyl x 70mm rod Metric Rams 991/00116 JCB Tilt Cylinder Repair Seal Kit
Price:
Negotiation
MOQ:
Trial order acceptable
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
Hydraulic Seals 120mm cyl x 70mm rod Metric Rams 991/00116 JCB Tilt Cylinder Repair Seal Kit
| Product Name | JCB Cylinder Seal Kit |
| Model Number | JCB |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Part Number | 991/00116 |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| Size | Standard size or custom size |
| Applicable Industries | Machinery repair shops, construction works, retail, other |
| CertifiC.A.Tion | ISO9001 |
| Condition | 100% new |
| Part type | Seal kit |
| Warranty | Unavailable |
| MOQ | Any quantity is OK |
| Performance | High pressure |
| OEM and ODM | Welcome |
| ROD | 70mm |
| CYL | 120mm |
| Advantage | Long service life and low price |
| Preservation Notice | Closed, dry and avoid the sun |
Our Mission:
- Our company is leading seal kit maker specially for hydraulic cylinder seal product.
- Our product range is:
* Whole hydraulic seal for construction machinery and industrial used.
* Repair seal kit(for Doosan, Hyundai, SUNCARSUNCARSUNCARVO.L.VO, Komatsu, Hitach, Kobelco, C.A.T...etc)
* Hydraulic breaker seal
* Hydraulic breaker seal kit
* Floating seal
* Machined seal(made by SUNCAR for special size by special material) etc.
- SUNCAR seals made a remarkable growth of quality and quality control, the quality already have reached or surpassed the global major leading seal maker quality with very reasonable cost. Our motto is to provide to our costumer most reliable, most superior, most reasonable sealing solution to satisfy customer requirement.
991/00116, 120mm cyl x 70mm rod Metric RAM, TILT JCB:
| Number | Part Number | QTY. | Product Name |
| 1 | 563/60023 | [1] | Ram tilt G.A. |
| 1 | 563/60087 | [1] | Ram tilt |
| 2 | 594/14035 | [1] | Kit-end cap 70mm rod x 120mm cyl |
| 3 | 2411/8610 | [1] | Seal wiper 70 x 80 x 6.8 |
| 4 | 2302/0316 | [1] | O Ring 110mm ID x 5.0mm |
| 5 | 2411/0510 | [1] | Seal 70 x 85 x 11.6 |
| 6 | 590/40059 | [1] | Rod piston |
| 7 | 2302/0308 | [1] | O Ring |
| 8 | 595/10049 | [1] | Piston head |
| 9 | 826/01180 | [1] | Dowel |
| 10 | 2411/7921 | [2] | Ring Wear 120 x 115 x 14.8 |
| 11 | 2411/1141 | [1] | Seal Piston |
| 12 | 563/70023 | [1] | Cylinder W.A. |
| 12 | 563/70087 | [1] | Cylinder assembly |
| 12A | 161/00140 | [1] | Pipe |
| 12A | 551/90090 | [1] | Pipe WA CV/RS input |
| 12A | 551/90357 | [1] | Pipe W.A. CV/RS Input |
| 12B | 658/01147 | [1] | Pipe |
| 12B | 658/10001 | [1] | Pipe CV to HS |
| 12C | 658/01174 | [1] | Pipe |
| 12C | 658/10020 | [1] | Pipe CV INPUT 25/32 x 68.4 |
| 12C | 658/40168 | [1] | Pipe tilt ram |
| 12D | 928/50027 | [1] | Body check valve |
| 14 | 1450/0001 | [1] | Nipple grease, straight 1/8 BSP |
| 15 | 809/00127 | [2] | Bearing liner 50mm pivot bore |
| 16 | 809/00126 | [2] | Bearing liner 50-60-40 |
| 17 | 25/990800 | [1] | Cartridge counter balance Must be fitted into 928/50027. |
| 17A | 25/993502 | [1] | Kit-seal |
| 18 | 813/00426 | [4] | Seal pivot pin 50 X 60 X 5 |
| 30 | 991/00116 | [1] | Kit-seal 120mm cyl x 70mm rod Metric rams |
Please check suitability by providing us with your machine serial number so we can check that we are providing you with the correct part.
