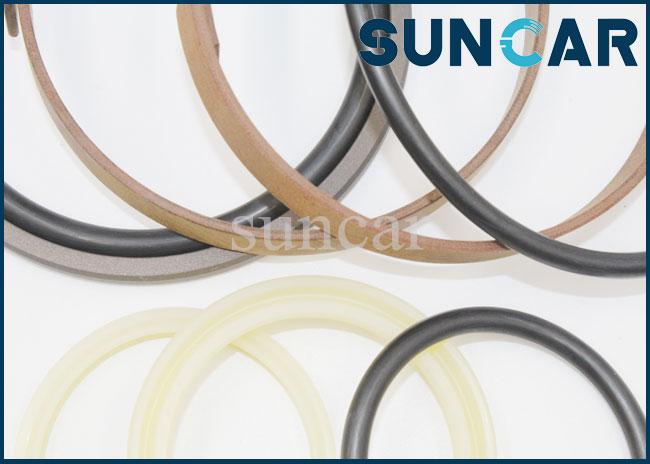

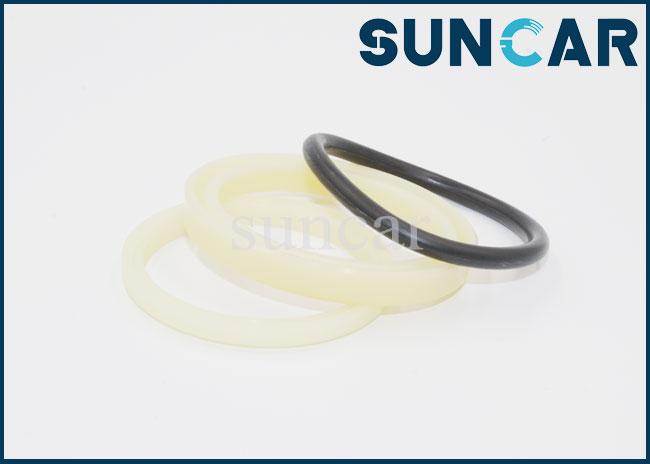

CYL 120mm x 60mm ROD Ram JCB 991/00158 991-00158 99100158 Tilt Cylinder Repair Seal Kit
CYL 120mm x 60mm ROD Ram JCB 991/00158 991-00158 99100158 Tilt Cylinder Repair Seal Kit
| Product Name | JCB Cylinder Seal Kit |
| Model Number | JCB 530, 535, 536, 540, 541... |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Part Number | 991/00158 991-00158 99100158 |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| Size | Standard size or custom size |
| Applicable Industries | Machinery repair shops, construction works, retail, other |
| CertifiC.A.Tion | ISO9001 |
| Condition | 100% new |
| C.A.Tegory | Seal/ seal kit |
| Warranty | Unavailable |
| OEM and ODM | Welcome |
| ROD | 60mm |
| CYL | 120mm |
| Advantage | Long service life and low price |
| Preservation Notice | Closed, dry and avoid the sun |
Product SpecifiC.A.Tion:
991/00158 JCB Seal Kit, 120mm x 60mm
- 991/00158 JCB Seal Kit, fits JCB Telescopic Handlers
Machine Type: 530 FS PLUS; 530 LE; 530S X; 530S XL; 531-70 sway; 531-70; 535 FS super; 535-60; 536-60; 536-60DS; 540 [Sway]; 540 FS PLUS; 540S X; 540S XL; 541-70 all variants; 541-70 sway
- JCB Teletruk
Machine Type: TLT 35 diesel engine 4 wheel drive; TLT 35 diesel engine

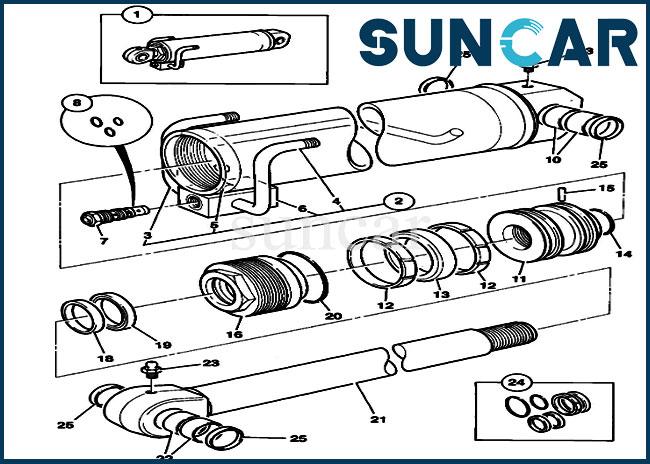

Related Parts Of JCB Seal Kit 991/00158 991-00158 99100158:
| Number | Part Number | QTY. | Product Name |
| 1 | 563/60126 | [1] | Ram Tilt 120 x 60 |
| 2 | 563/70126 | [1] | Cylinder |
| 6 | NSP | [1] | None serviced part |
| 7 | 25/207300 | [1] | Cartridge Counter Balance (Seal Kit 332/G9527) not included |
| 8 | 25/944001 | [1] | Kit-seal |
| 10 | 809/00126 | [2] | Bearing liner 50-60-40 |
| 11 | 595/27708 | [1] | Piston Head Assy |
| 12 | 2411/7921 | [2] | Ring Wear 120 x 115 x 14.8 |
| 13 | 2411/1141 | [1] | Seal Piston |
| 14 | 2302/0306 | [1] | O Ring 60 x 5.0 |
| 15 | 826/01159 | [1] | Dowel |
| 16 | 594/14294 | [1] | Kit End Cap Assy |
| 18 | 2411/8608 | [1] | Seal wiper 60 x 70 x 6.8 |
| 19 | 2411/0508 | [1] | Seal 60 x 75 x 11.4 |
| 20 | 2302/0316 | [1] | O Ring 110mm ID x 5.0mm |
| 21 | 590/40211 | [1] | Rod Piston |
| 22 | 809/00127 | [2] | Bearing liner 50mm pivot bore |
| 23 | 1450/0001 | [2] | Nipple grease, straight 1/8 BSP |
| 24 | 991/00158 | [1] | Kit Seal 120mm x 60mm |
| 25 | 813/00426 | [4] | Seal pivot pin 50 X 60 X 5 |
Our Services:
We will try our best to offer the high quality products, competitive price and professional services to you.
* Small order is ok as your need.
* We support customized size according to your needs.
* Payment: flexible payment, you can choose the more convenient.
* Shipment: base on our rich stock, more faster delivery.
* After receipt of the products, any question, just contact us, we will help you.
If you are unsure & want to check suitability of this part for your machine, please provide your JCB machine serial number by call, email or chat now.
