OEM Kit 707-98-11070 Pin Puller Cylinder Service Kit For D135A-2 D155A-5 Komatsu
OEM Kit 707-98-11070 Pin Puller Cylinder Service Kit For D135A-2 D155A-5 Komatsu
| Product Name | Cylinder Seal Kit |
| Model Number | Komatsu D135A-2, D155A-3, D155A-5, D155AX-3, D155AX-5 |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Part Number | 707-98-11070 |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| Size | Standard size |
| Applicable Industries | Construction works, machinery repair shops, retail, other |
| CertifiC.A.Tion | ISO9001 |
| Condition | 100% new |
| C.A.Tegory | Seal kits |
| Warranty | Unavailable |
| OEM and ODM | Welcome |
| Feature | Oil & high pressure & high temperature resistant |
| Preservation Notice | Closed, dry and avoid the sun |
| AppliC.A.Tion | Komatsu bulldozers |
Related Parts:

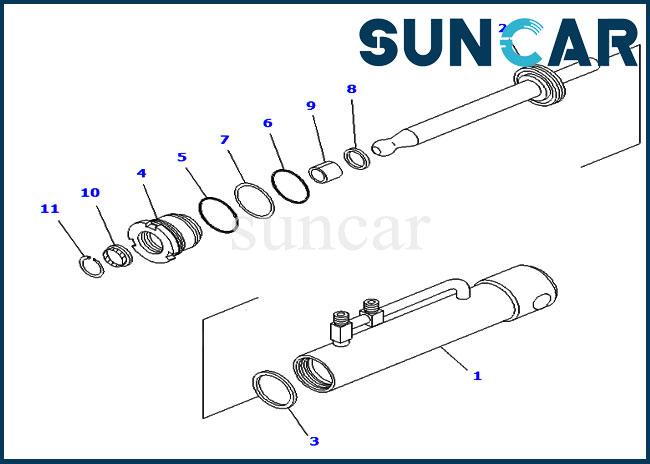

| Pos. | Part No | Qty | Parts name |
| 707-04-07170 | [1] | CYLINDER ASSEMBLY | |
| 15A-63-02080 | [1] | CYLINDER ASSEMBLY | |
| 1 | 15A-63-49140 | [1] | CYLINDER |
| 2 | 15A-63-49120 | [1] | ROD |
| 3 | 707-44-60070 | [1] | RING, PISTON (KIT) |
| 4 | 707-29-60930 | [1] | HEAD, CYLINDER |
| 5 | 07000-02060 | [1] | O-RING (KIT) |
| 6 | 07000-12055 | [1] | O-RING (KIT) |
| 7 | 07001-02055 | [1] | RING, BACK-UP (KIT) |
| 8 | 707-51-30210 | [1] | PACKING (KIT) |
| 9 | 707-52-15050 | [1] | BUSHING |
| 10 | 707-56-30740 | [1] | SEAL, DUST (KIT) |
| 11 | 07179-12042 | [1] | RING, SNAP |
| 707-98-11070 | [1] | SERVICE KIT |
Product C.A.Tegories:
| Hydraulic cylinder seal kit | Center joint seal kit |
| Transmission Seal Kit | Control valve seal kit |
| breaker hammer seal kit | Hydraulic pump seal kit |
| Travel motor seal kit | Main pump seal kit |
| Swing motor seal kit | Gear pump seal repair kit |
| Adjuster seal kit | Pilot valve seal kit |
| O-ring kit box | Hydraulic seal |
| Pump gasket | Regulator valve seal kit |
Hydraulic Seal Installation Requirements:
1. The sealing surface of hydraulic seal gasket and flange should be clean.
2. The outer diameter of the hydraulic seal gasket should be smaller than the flange sealing surface, and the inner diameter should be slightly larger than the pipe inner diameter.
3. The pretension of the gasket shall not exceed the design requirements.
4. Torque wrenches are best used when packing asbestos gaskets.
5. When installing the gasket, tighten the nuts one by one.
6. In case of leakage, step-down treatment must be carried out after installation, and the sealing gasket must be replaced or adjusted.
Please click "ask a question", or call us if you have a parts need that you do not see listed here.
