Komatsu Parts 707-98-12750 Blade Angle Cylinder Seal Repair Kit Fits D20A-8 D20P-8
Komatsu Parts 707-98-12750 Blade Angle Cylinder Seal Repair Kit Fits D20A-8 D20P-8
| Product Name | Komatsu Bulldozer Cylinder Seal Kit |
| Model Number | Komatsu D20A-8, D20P-8, D21A-8, D21P-8 |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Part Number | 707-98-12750 |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| Size | Standard size |
| Applicable Industries | Construction works, machinery repair shops, retail, other |
| CertifiC.A.Tion | ISO9001 |
| Condition | 100% new |
| C.A.Tegory | Seal kits |
| Warranty | Unavailable |
| OEM and ODM | Welcome |
| Feature | Oil & high pressure & high temperature resistant |
| Preservation Notice | Closed, dry and avoid the sun |
| AppliC.A.Tion | Komatsu bulldozers |
Product SpecifiC.A.Tion:
- Press in wiper
- Rod Seal: U-Seal
- Piston Seal: 4 PC Capped T-Seal
- Fits Cylinder Numbers: 707-00-0E920
- Rod: 35.00 MM
- Bore: 70.00 MM
- Fits: Crawler Tractor-Loader
- D21A-8 Crawler Tractor-Loader Loader (Blade Angle)
- D21P-8 Crawler Tractor-Loader Loader (Blade Angle)
When You Open And Repair The Cylinder, Please Follow Below Operation:
1. Take off the cylinder from the machine.
2. Remove the head assembly and the rod assembly from the stick cylinder group.
3. If it always happens that the seal kit not perform well soon after it fitted, there maybe problem of the cylinder assembly itself. It is better to check the cylinder assembly whether need to change it.
4. Measure the seal kits before fitting.
5. Install the seals: after fix the cylinder assy, test it first before re-install the stick cylinder group on the machine.
Some Part Number Of Komatsu Bulldozer Cylinder Seal Kit:
| 175-63-05012 | 101-61-05010 | 707-99-66655 | 707-98-56620 |
| 175-63-05080 | 101-62-05020 | 707-99-64210 | 707-98-56625 |
| 707-99-12460 | 101-870-0510 | 707-99-64370 | 707-99-74020 |
| 707-99-12420 | 102-63-05020 | 707-99-64225 | 707-99-74520 |
| 707-98-40110 | 102-63-05010 | 707-99-66690 | 707-99-56690 |
| 707-98-44200 | 707-98-13420 | 114-63-05010 | 707-98-24910 |
| 707-98-64410 | 707-98-23070 | 114-63-05080 | 707-98-24700 |
| 707-99-52180 | 707-98-12750 | 114-63-05030 | 707-99-24930 |
| 707-98-12740 | 707-99-36150 | 707-98-22850 | 707-99-24640 |
| 707-98-05460 | 707-99-36140 | 707-98-22910 | 707-99-24650 |
| 707-98-22290 | 707-99-53620 | 707-98-24720 | 707-98-32820 |
| 707-98-45620 | 707-99-53610 | 707-98-24710 | 707-98-41130 |
| 707-98-73010 | 707-99-43710 | 707-99-14930 | 707-98-34510 |
| 707-98-73020 | 707-99-43660 | 707-99-23910 | 707-98-34590 |
| 707-98-73400 | 707-98-43650 | 707-99-24660 | 707-98-42420 |
| 707-98-11020 | 707-99-43700 | 707-99-24670 | 707-99-42530 |
| 707-98-64400 | 707-99-43250 | 707-98-23080 | 707-98-41060 |
| 707-99-45525 | 707-99-43380 | 195-63-05110 | 707-99-32280 |
| 707-99-45530 | 707-99-45160 | 195-63-05120 | 707-99-34590 |
| 707-99-73040 | 707-99-24555 | 195-63-05010 | 707-99-84040 |

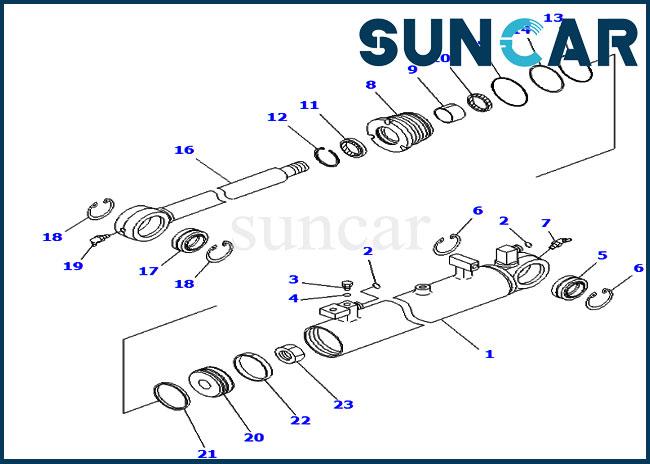

Related Parts:
| Pos. | Part No | Qty | Parts name |
| 707-00-0E920 | [2] | CYLINDER ASSEMBLY,ANGLE | |
| 1 | 721-11-70860 | [1] | CYLINDER |
| 2 | 02896-11009 | [2] | O-RING (KIT) |
| 3 | 07040-11007 | [1] | PLUG |
| 4 | 07002-11023 | [1] | O-RING (KIT) |
| 5 | 707-76-35010 | [1] | BUSHING |
| 6 | 04065-05520 | [2] | RING,SNAP |
| 7 | 07020-00675 | [1] | FITTING,GREASE |
| 8 | 707-29-70821 | [1] | HEAD,CYLINDER |
| 9 | 07177-03525 | [1] | BUSHING |
| 10 | 707-51-35210 | [1] | PACKING,ROD (KIT) |
| 11 | 175-63-75190 | [1] | SEAL,DUST (KIT) |
| 12 | 07179-12047 | [1] | RING,SNAP |
| 13 | 07000-12065 | [1] | O-RING (KIT) |
| 14 | 07146-02066 | [1] | RING,BACK-UP (KIT) |
| 15 | 07000-12070 | [1] | O-RING (KIT) |
| 16 | 721-58-35420 | [1] | ROD,PISTON |
| 19 | 07020-00900 | [1] | FITTING,GREASE |
| 20 | 707-36-70930 | [1] | PISTON |
| 21 | 707-44-70070 | [1] | RING,PISTON (KIT) |
| 22 | 07156-00710 | [1] | RING,WEAR (KIT) |
| 23 | 707-67-24010 | [1] | NUT |
| K | 707-98-12750 | [1] | SERVICE KIT |

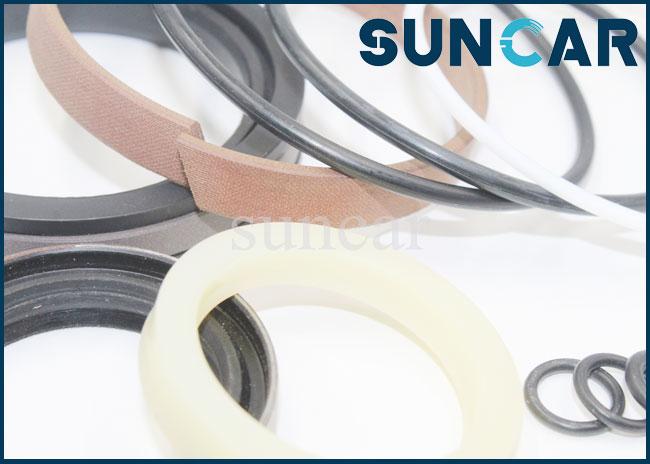

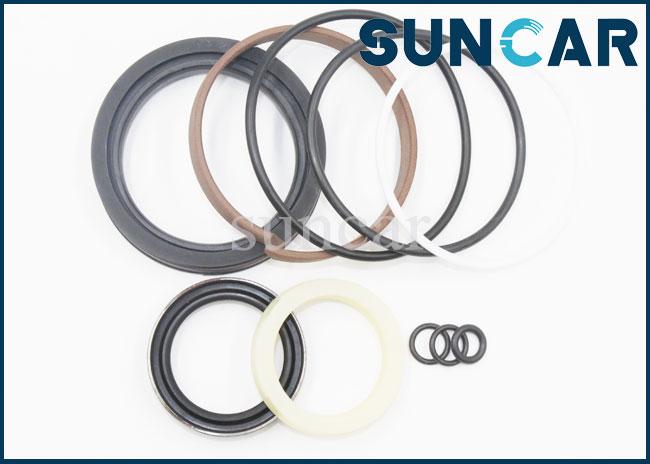

Product Image:
