7079964210 Ripper Hydraulic Seal Repair Kit D275A-5D Komatsu Cylinder Tilt Service Kit
7079964210 Ripper Hydraulic Seal Repair Kit D275A-5D Komatsu Cylinder Tilt Service Kit
| Product Name | Cylinder Seal Kit |
| Model Number | Komatsu D275A-5D |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Part Number | 707-99-64210 |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| Size | Standard size |
| Applicable Industries | Construction works, machinery repair shops, retail, other |
| CertifiC.A.Tion | ISO9001 |
| Condition | New |
| C.A.Tegory | Seal kits |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| Feature | Resistance to high pressure, oil, weather, abrasion, solvent |
| Preservation Notice | Closed, dry and avoid the sun |
| AppliC.A.Tion | Komatsu bulldozers |
Basic Requirements for Sealing Materials:
The performance of the sealing material is an important factor to ensure effective sealing. The selection of the sealing material is mainly based on the working environment of the sealing element, such as the temperature, the working pressure, the working medium used, and the movement mode. The basic requirements for sealing materials are as follows:
1. Have certain mechanical properties, such as tensile strength, elongation, etc.;
2. Appropriate elasticity and hardness, small compression set;
3. High temperature and low temperature resistance, no decomposition or softening at high temperature, and no hardening at low temperature;
4. It is compatible with the working medium, without swelling, decomposition, hardening, etc.;
5. Good oxygen resistance and aging resistance, durable;
6. Abrasion resistance, no corrosion to metal;
7. Easy to shape and process, low price.

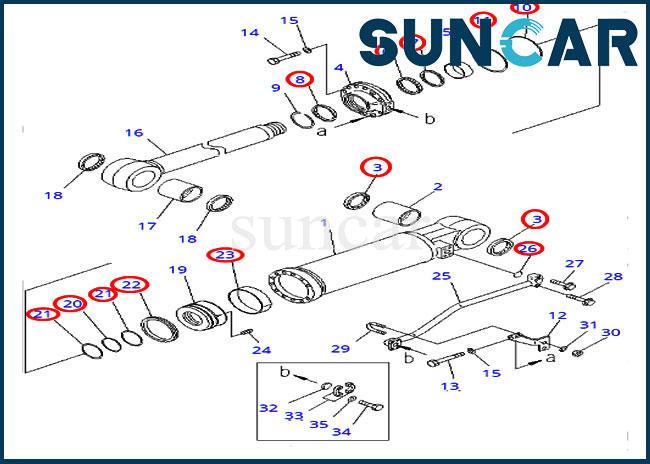

Related Parts:
| Pos. | Part No | Qty | Parts name |
| G-1. | 707-01-XX160 | [1] | CYLINDER GROUP,L.H. (FINAL COATING) |
| G-2. | 707-01-XX170 | [1] | CYLINDER GROUP,R.H. (FINAL COATING) |
| 707-01-0C830 | [1] | CYLINDER ASSEMBLY,L.H. | |
| 707-01-0C840 | [1] | CYLINDER ASSEMBLY,R.H. | |
| 1 | 707-13-16740 | [1] | CYLINDER |
| 2 | 707-76-90520 | [1] | BUSHING |
| 3 | 07145-10090 | [2] | SEAL,DUST (KIT) |
| 4 | 707-27-16480 | [1] | HEAD,CYLINDER |
| 5 | 707-52-90681 | [1] | BUSHING |
| 6 | 707-51-90730 | [1] | U-PACKING,ROD (KIT) |
| 7 | 707-51-90640 | [1] | RING,BUFFER (KIT) |
| 8 | 707-56-90740 | [1] | SEAL,DUST (KIT) |
| 9 | 07179-13104 | [1] | RING,SNAP |
| 10 | 07000-55150 | [1] | O-RING (KIT) |
| 11 | 07146-05152 | [1] | RING,BACK-UP (KIT) |
| 12 | 707-88-35370 | [1] | BRACKET,L.H. |
| 12 | 707-88-35380 | [1] | BRACKET,R.H. |
| 13 | 01010-81670 | [2] | BOLT |
| 14 | 01010-81660 | [10] | BOLT |
| 15 | 01643-31645 | [12] | WASHER |
| 16 | 707-58-90990 | [1] | ROD,PISTON |
| 17 | 707-76-90530 | [1] | BUSHING |
| 19 | 707-36-16620 | [1] | PISTON |
| 20 | 07000-55090 | [1] | O-RING (KIT) |
| 21 | 707-35-90010 | [2] | RING,BACK-UP (KIT) |
| 22 | 707-44-16180 | [1] | RING,PISTON (KIT) |
| 23 | 07155-01640 | [1] | RING,WEAR (KIT) |
| 24 | 01310-01216 | [1] | SCREW |
| 25 | 707-86-66530 | [1] | TUBE,L.H. |
| 25 | 707-86-66540 | [1] | TUBE,R.H. |
| 26 | 07000-53030 | [2] | O-RING (KIT) |
| 27 | 01435-01040 | [4] | BOLT |
| 28 | 01435-01055 | [4] | BOLT |
| 29 | 07283-22738 | [2] | CLIP |
| 30 | 01599-01011 | [4] | NUT |
| 31 | 01643-31032 | [4] | WASHER |
| 32 | 707-88-33030 | [4] | CAP |
| 33 | 07371-30640 | [8] | FLANGE |
| 34 | 07372-21035 | [16] | BOLT |
| 35 | 01643-51032 | [16] | WASHER |
| 707-99-64210 | [2] | SERVICE KIT |

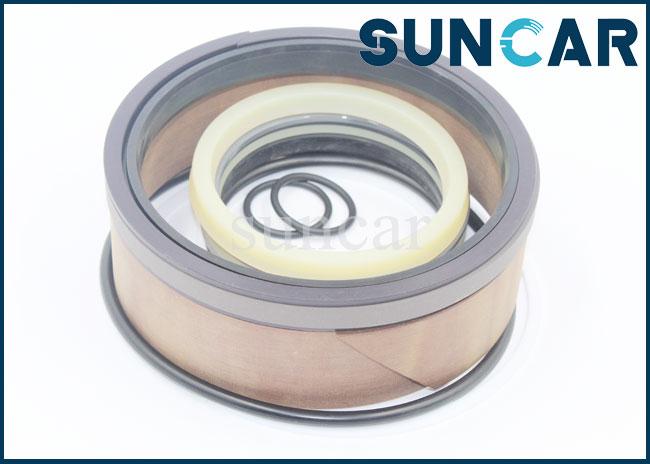

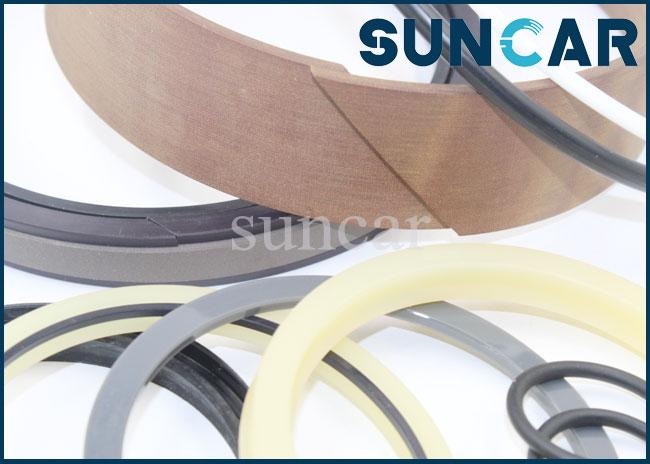

Product Image:
