Blade Tilt Cylinder 707-99-66790 7079966790 Hydraulic Seal Kits For Komatsu D275A-5D
Price:
Negotiation
MOQ:
Trial order acceptable
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description

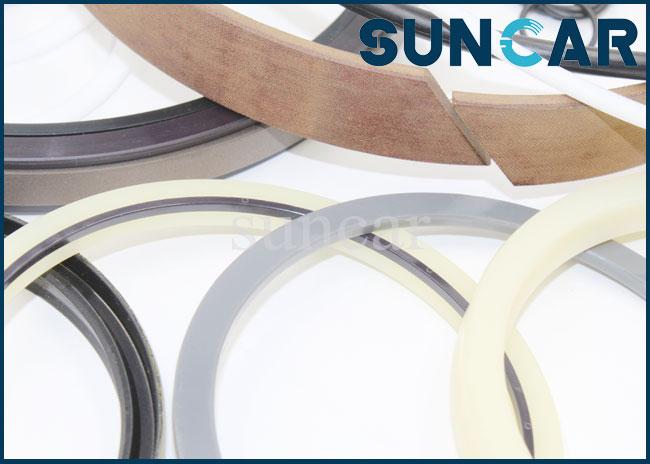

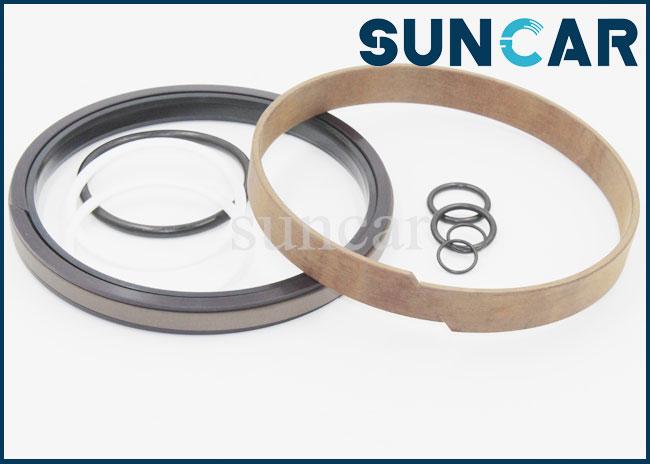

Blade Tilt Cylinder 707-99-66790 7079966790 Hydraulic Seal Kits For Komatsu D275A-5D
| Product Name | Blade Tilt Cylinder 707-99-66790 7079966790 Hydraulic Seal Kits |
| Model Number | Komatsu D275A-5D |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Part Number | 707-99-66790, 7079966790 |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| Size | Standard size |
| Applicable Industries | Machinery repair shops, construction works, energy & mining |
| CertifiC.A.Tion | ISO9001 |
| Condition | New |
| C.A.Tegory | Seal kits |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| Feature | Resistance to high pressure, oil, weather, abrasion, solvent |
| Preservation Notice | Closed, dry and avoid the sun |
| Core Components | Engine |
Please click "ask a question", or call us if you have a parts need that you do not see listed here.

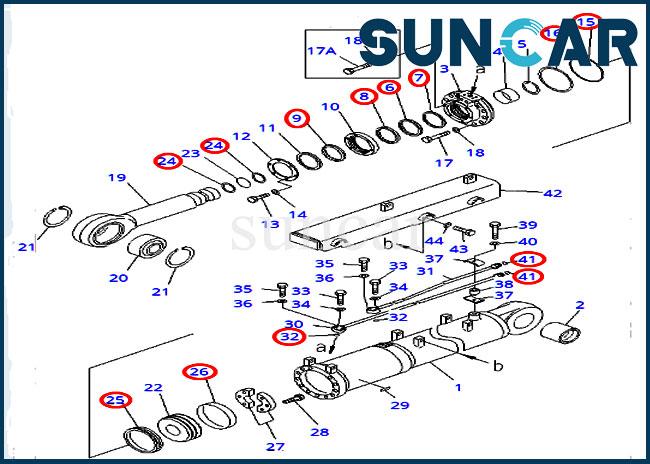

Related Parts:
| Pos. | Part No | Qty | Parts name |
| G-1. | 707-H4-X0190 | [1] | CYLINDER GROUP,(FINAL COATING) |
| G-1. | 707-01-XT782 | [1] | CYLINDER GROUP,(FINAL COATING) |
| 707-E4-00190 | [1] | CYLINDER ASSEMBLY | |
| 707-01-0H012 | [1] | CYLINDER ASSEMBLY | |
| 1 | 707-13-18622 | [1] | CYLINDER |
| 1 | 707-13-18620 | [1] | CYLINDER |
| 2 | 707-76-70310 | [1] | BUSHING |
| 3 | 707-27-18C00 | [1] | HEAD,CYLINDER |
| 3 | 707-27-18902 | [1] | HEAD,CYLINDER |
| 4 | 707-52-90781 | [1] | BUSHING |
| 5 | 707-75-10160 | [1] | RING,SNAP |
| 6 | 707-51-10730 | [1] | PACKING,ROD (KIT) |
| 7 | 707-51-10650 | [1] | RING,BUFFER (KIT) |
| 7 | 707-51-10640 | [1] | RING,BUFFER (KIT) |
| 8 | 707-56-10740 | [1] | SEAL,DUST (KIT) |
| 9 | 707-56-10820 | [1] | SEAL,DUST (KIT) |
| 9 | 707-56-10651 | [1] | SEAL,DUST (KIT) |
| 10 | 707-88-36952 | [1] | COLLAR |
| 11 | 707-88-36921 | [1] | RING |
| 12 | 707-88-36942 | [1] | PLATE |
| 13 | 07372-21045 | [6] | BOLT |
| 14 | 01643-51032 | [6] | WASHER |
| 15 | 07000-55170 | [1] | O-RING (KIT) |
| 16 | 07146-05172 | [1] | RING,BACK-UP (KIT) |
| 17 | 01010-81865 | [10] | BOLT |
| 17A. | 01010-81890 | [2] | BOLT |
| 18 | 01643-31845 | [12] | WASHER |
| 19 | 707-58-10790 | [1] | ROD,PISTON |
| 20 | 17M-71-21590 | [1] | BUSHING |
| 21 | 04071-00150 | [2] | RING,SNAP |
| 22 | 707-36-18050 | [1] | PISTON |
| 23 | 07000-55075 | [1] | O-RING (KIT) |
| 24 | 07001-05075 | [2] | RING,BACK-UP (KIT) |
| 25 | 707-44-18180 | [1] | RING,PISTON (KIT) |
| 26 | 07156-01822 | [1] | RING,WEAR (KIT) |
| 27 | 707-40-20030 | [2] | SPACER |
| 28 | 01010-61245 | [6] | BOLT |
| 29 | 700-11-31980 | [1] | PLATE, NAME |
| 30 | 707-86-47031 | [1] | TUBE |
| 30 | 707-86-47030 | [1] | TUBE |
| 31 | 707-86-47040 | [1] | TUBE |
| 32 | 07000-53025 | [2] | O-RING (KIT) |
| 33 | 01010-80845 | [4] | BOLT |
| 33 | 01010-80850 | [4] | BOLT |
| 34 | 01643-30823 | [4] | WASHER |
| 35 | 01010-80840 | [4] | BOLT |
| 37 | 707-88-34690 | [2] | CLAMP |
| 38 | 707-88-34700 | [1] | SEAT |
| 39 | 01010-81455 | [1] | BOLT |
| 40 | 01643-31445 | [1] | WASHER |
| 41 | 02896-51015 | [2] | O-RING (KIT) |
| 42 | 707-88-35280 | [1] | COVER |
| 43 | 01010-81640 | [6] | BOLT |
| 44 | 01643-31645 | [6] | WASHER |
| 707-99-66790 | [1] | SEAL KIT | |
| 707-99-66645 | [1] | SERVICE KIT |
