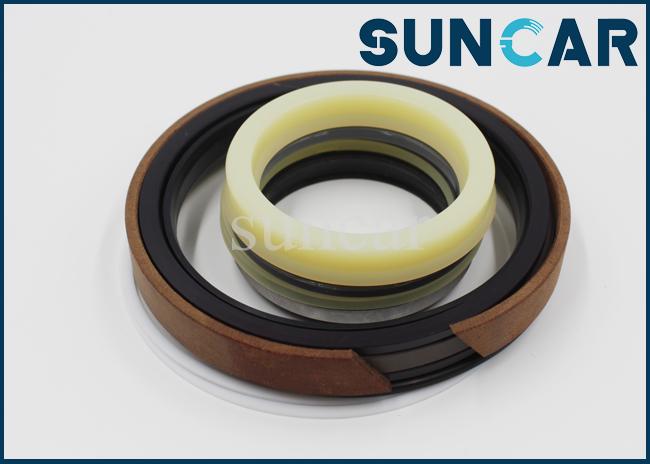

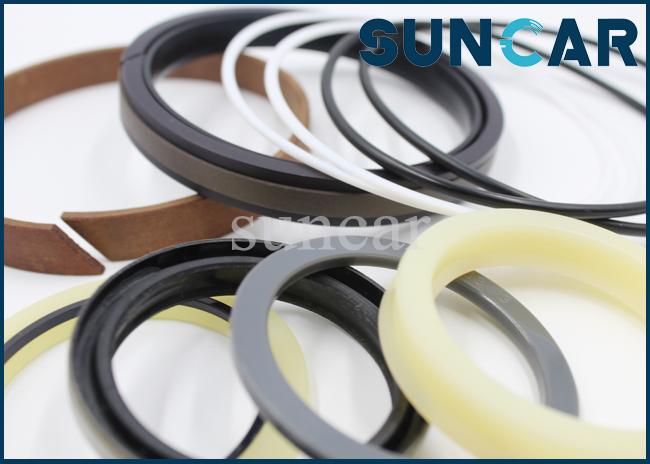

707-99-32250 Steering Cylinder Seal Kit WA480-5 Komatsu Wheel Loader Inner Parts Service Kit
707-99-32250 Steering Cylinder Seal Kit WA480-5 Komatsu Wheel Loader Inner Parts Service Kit
| Product name | 707-99-32250 Steering Cylinder Seal Kit WA480-5 Komatsu Wheel Loader Inner Parts Service Kit |
| Model Number | Komatsu WA480-5 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Hardness | 70degree - 95degree A |
| Packing | PP bag inside, carton box outside |
| Payment Terms | Western Union, L/C, T/T, , D/A, D/P |
| Delivery time | 5-7 Days |
| Shipping Mode | By air, by sea, by express ( Fedex, UPS, DHL, TNT, etc.) |
| Part No. | 707-99-32250 / 7079932250 |
| Warranty | Unavailable |
| Size | Standard size |
| Type | Hydraulic Cylinder Seal kit |
| Brand name | SUNCAR |
| CertifiC.A.Tion | ISO9001 |
| AppliC.A.Tion | Komatsu wheel loader |
Our advantages
1) National standard ,
2) High quality material
3) High-intensity,
4) Big rigidity,
5) Long life and strong bearing capacity,
6) Passed the national authoritative department's monitor.
8) Gained old customer's trust .
Cause Of The Problem:
The Main Factors Causing Oil Seal Leakage
Loose Oil Seal Is The Main Cause Of Oil Leakage.When The Shaft Is Worn And Grooves Are Formed, Even If The Oil Seal Is Replaced, It Can Not Be Sealed, Because The Contact Pressure Between The Oil Seal Lip And The Shaft Drops, Resulting In Too Small Interference Between The Diameter Of The Oil Seal Lip And The Shaft Diameter After Installation.
1. The Oil Seal Manufacturing Quality Is Poor;
2. Poor Shaft Or Bearing Quality;
3. Improper Use And Maintenance;
4. Improper Installation;
5. Improper Storage, Caused By Environmental Pollution

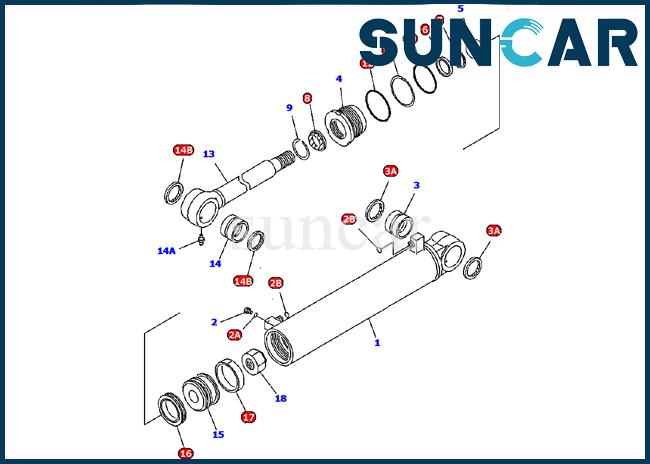

WA480-5 hydraulic cylinder relation parts:
| Pos. | Part No | Qty | Parts name |
| 707-00-07D90 | [1] | CYLINDER ASSEMBLY,L.H. | |
| 707-00-07E00 | [1] | CYLINDER ASSEMBLY,R.H. | |
| 707-00-0A500 | [1] | CYLINDER AASSEMBLY,L.H. | |
| 707-00-0A510 | [1] | CYLINDER ASSEMBLY,R.H. | |
| 1. | 707-11-10A81 | [1] | CYLINDER,L.H. |
| 707-11-10A91 | [1] | CYLINDER,R.H. | |
| 2. | 07040-11007 | [1] | PLUG |
| 3. | 07002-11023 | [1] | O-RING (KIT) |
| 4. | 02896-11015 | [2] | O-RING (KIT) |
| 5. | 707-76-55520 | [1] | BUSHING |
| 6. | 416-09-11130 | [2] | SEAL,DUST (KIT) |
| 7. | 707-29-10620 | [1] | HEAD,CYLINDER |
| 8. | 707-52-90250 | [1] | BUSHING |
| 9. | 707-51-50030 | [1] | PACKING,ROD (KIT) |
| 10. | 707-51-50640 | [1] | RING,BUFFER (KIT) |
| 11. | 176-63-92240 | [1] | SEAL,DUST (KIT) |
| 12. | 07179-12062 | [1] | RING,SNAP |
| 13. | 07000-12095 | [1] | O-RING (KIT) |
| 14. | 07146-02096 | [1] | RING,BACK-UP (KIT) |
| 15. | 07000-12100 | [1] | O-RING (KIT) |
| 16. | 721-58-50930 | [1] | ROD,PISTON |
| 17. | 707-76-55120 | [1] | BUSHING |
| 18. | 07020-00000 | [1] | FITTING,GREASE |
| 20. | 707-36-10340 | [1] | PISTON |
| 21. | 707-44-10180 | [1] | RING,PISTON (KIT) |
| 22. | 07156-01012 | [1] | RING,WEAR (KIT) |
| 23. | 07165-13638 | [1] | NUT |
| 707-99-32250 | [2] | SERVICE KIT,STEERING CYLINDER |
