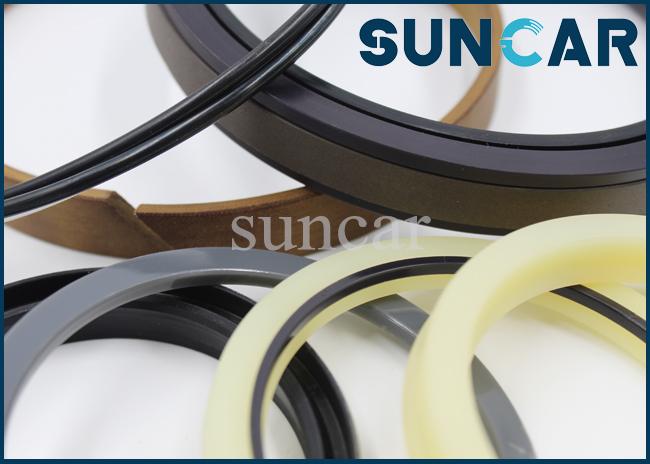

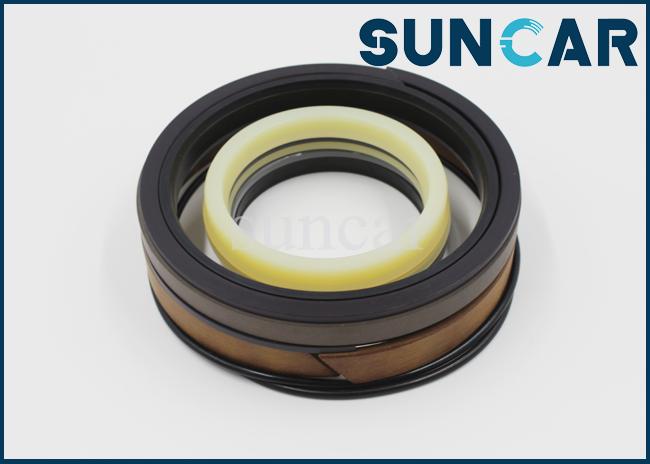

Komatsu Wheel Loader 707-99-43420 Steering Cylinder Seal Repair Kit WA600-3 Hydraulic Cylinder Repair Kit
Komatsu Wheel Loader 707-99-43420 Steering Cylinder Seal Repair Kit WA600-3 Hydraulic Cylinder Repair Kit
| Product Name | Komatsu Wheel Loader 707-99-43420 Steering Cylinder Seal Repair Kit WA600-3 Hydraulic Cylinder Repair Kit |
| Part No. | 707-99-43420 |
| Material | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ |
| Feature | Resistance to high pressure, oil, weather, abrasion, solvent |
| Hardness | 70-90 Shore A |
| Color | Black, White or other |
| Size | Standard Size |
| MOQ | We accept trial order |
| Packing | PP bag inside, carton box outside( According to your requirements) |
| Delivery Time | 3-5 days after payment received(public holiday excluded) |
| Payment | Western Union, L/C, T/T, etc. |
| Port | HUAGNPU,China (Mainland) |
| Express | Fedex,TNT,UPS,DHL |
| Customized | OEM & ODM are welcomed |
| AppliC.A.Tion | Excavator&Backhoe Loader Inner Systerm |
| Condition | 100% brand new |
Hydraulic Cylinder Seal installation requirements:
1. the hydraulic sealing gaskets and flange sealing surface should be clean
2. hydraulic sealing gasket diameter should be smaller than flange seal face outside and inside diameter should be slightly bigger than a pipe inside diameter
3. Sealing gasket pre-tightening force should not exceed the design rules
4. sealing asbestos gasket compression, it is best to use the torque wrench
5. Installing a sealing gasket, should be in order, in turn, tighten the nut
6. if there is any leakage, must be installed after antihypertensive treatment to replace or adjust the sealing gasket

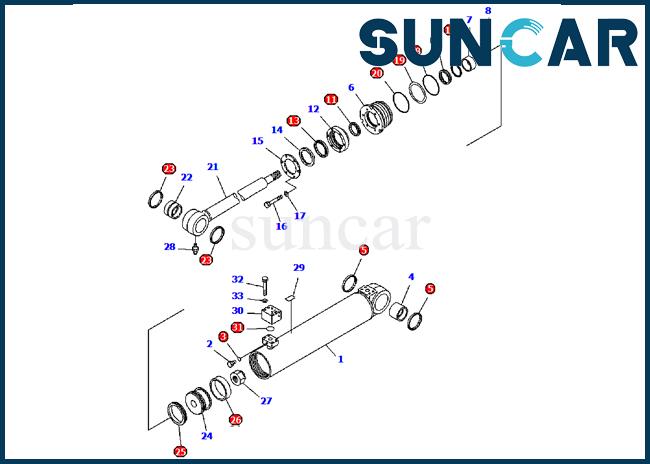

Parts on relation WA600-3 Hydraulic Cylinder Assy Replacement:
| Pos. | Part No | Qty | Parts name |
| G-1. | 707-00-XX281 | [2] | CYLINDER GROUP,(FINAL COATING) |
| G-1. | 707-00-XX280 | [2] | CYLINDER GROUP,(FINAL COATING) |
| 707-00-0G611 | [2] | CYLINDER ASSEMBLY | |
| 707-00-0G610 | [2] | CYLINDER ASSEMBLY | |
| 1. | 707-11-13323 | [1] | CYLINDER |
| 2. | 708-8E-16150 | [1] | PLUG |
| 3. | 07002-51023 | [1] | O-RING (KIT) |
| 4. | 707-76-75030 | [1] | BUSHING |
| 5. | 419-09-11110 | [2] | SEAL,DUST (KIT) |
| 6. | 707-29-13270 | [1] | HEAD,CYLINDER |
| 7. | 707-52-90461 | [1] | BUSHING |
| 8. | 070-75-70110 | [1] | RING,SNAP |
| 9. | 707-51-70730 | [1] | PACKING,ROD (KIT) |
| 10. | 707-51-70640 | [1] | RING,BUFFER (KIT) |
| 11. | 707-56-70740 | [1] | SEAL,DUST (KIT) |
| 12. | 707-88-04860 | [1] | COLLAR |
| 13. | 707-56-70820 | [1] | SEAL,DUST (KIT) |
| 13. | 707-56-70651 | [1] | SEAL,DUST (KIT) |
| 14. | 707-88-39400 | [1] | RING |
| 14. | 707-88-37240 | [1] | RING |
| 15. | 707-88-04850 | [1] | PLATE |
| 16. | 01010-80840 | [6] | BOLT |
| 17. | 01643-50823 | [6] | WASHER |
| 18. | 07000-52125 | [1] | O-RING (KIT) |
| 19. | 07146-02126 | [1] | RING,BACK-UP (KIT) |
| 20. | 07000-52130 | [1] | O-RING (KIT) |
| 21. | 707-58-70060 | [1] | ROD,PISTON |
| 22. | 707-76-75040 | [1] | BUSHING |
| 24. | 707-36-13240 | [1] | PISTON |
| 25. | 707-44-13180 | [1] | RING,PISTON (KIT) |
| 26. | 07156-01315 | [1] | RING,WEAR (KIT) |
| 27. | 07165-15252 | [1] | NUT,NYLON |
| 28. | 07020-00000 | [1] | FITTING,GREASE |
| 29. | 700-11-31980 | [1] | PLATE |
| 30 | 426-62-21410 | [1] | BLOCK |
| 31 | 07000-53032 | [1] | O-RING (KIT) |
| 32 | 01010-81070 | [4] | BOLT |
| 33 | 01643-31032 | [4] | WASHER |
| K. | 707-99-43445 | [2] | SERVICE KIT,STEERING CYLINDER |
| K. | 707-99-43420 | [2] | SERVICE KIT,STEERING CYLINDER |
