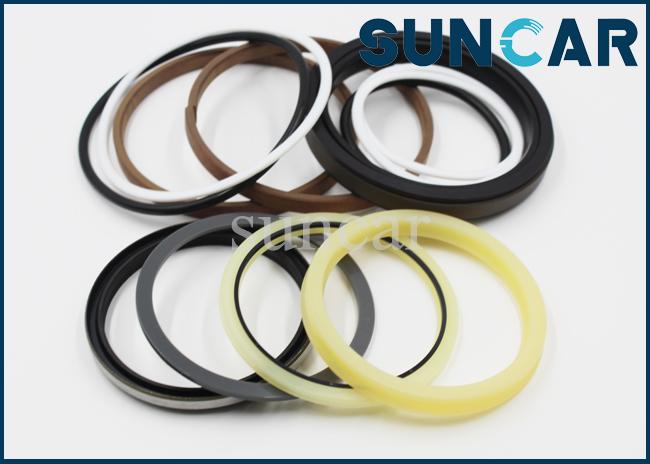

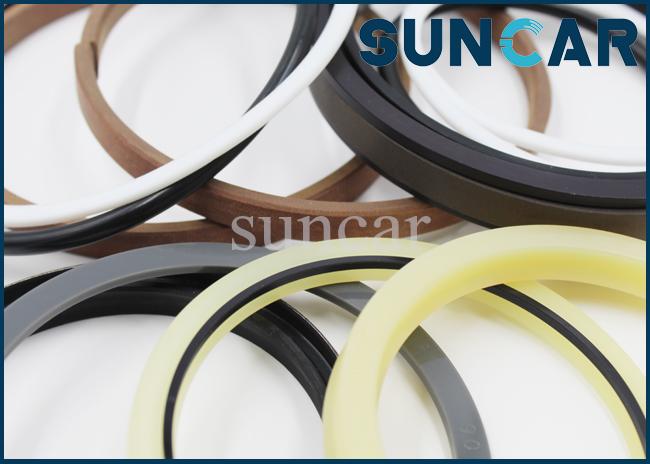

707-99-48620 Lift Cylinder Seal Kit Komatsu WA380-6 Inner Parts Hydraulic Cylinder Replacement
707-99-48620 Lift Cylinder Seal Kit Komatsu WA380-6 Inner Parts Hydraulic Cylinder Replacement
| Product Name | 707-99-48620 Lift Cylinder Seal Kit Komatsu WA380-6 Inner Parts Hydraulic Cylinder Replacement |
| Part Number | 707-99-48620 |
| Model Number | Komatsu WA380-6 |
| Warranty | Unavailable |
| Place of Origin | Guangdong, China |
| Applicable Industries | Construction works |
| Brand name | SUNCAR |
| Standard | Standard size or custom size |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| Market | South America, North America, Europe, Asia, Middle East, etc |
| CertifiC.A.Tion | ISO9001 |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| AppliC.A.Tion | Hydraulic cylinder seal kit |
| Packing | PP bag inside, carton box outside |

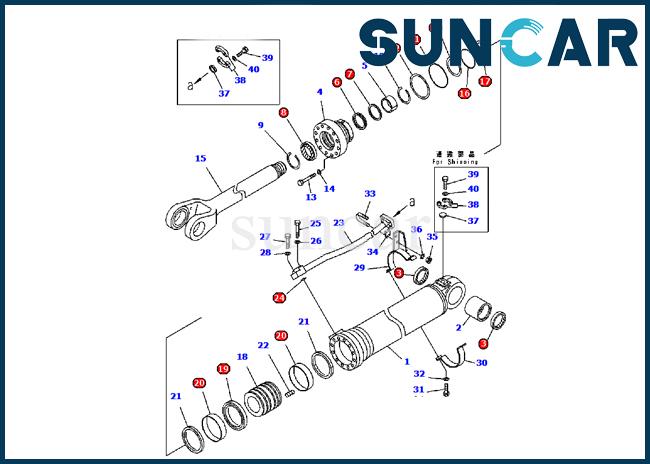

Related Parts:
| Pos. | Part No | Qty | Parts name | Comments |
| G1. | 707-01-XP170 | [1] | CYLINDER GROUP,L.H. (FINAL COATING) | |
| 707-01-0K160 | [1] | CYLINDER ASSEMBLY,LIFT, L.H. | ||
| 1. | 707-13-13940 | [1] | CYLINDER,L.H. | |
| 2. | 707-76-95040 | [1] | BUSHING | 1.3 kg. |
| 3. | 421-09-11310 | [2] | SEAL,DUST (KIT) | 0.37 kg. |
| 4. | 707-27-13650 | [1] | HEAD | 7.402 kg. |
| 5. | 707-52-90680 | [1] | BUSHING | 0.165 kg. |
| 6. | 707-51-90030 | [1] | PACKING,ROD (KIT) | 0.048 kg. |
| 7. | 707-51-90650 | [1] | RING,BUFFER (KIT) | 0.012 kg. |
| 8. | 195-63-94170 | [1] | SEAL,DUST (KIT) | 0.053 kg. |
| 9. | 07179-13104 | [1] | RING,SNAP | 0.022 kg. |
| 10. | 707-75-90110 | [1] | RING,SNAP | 0.01 kg. |
| 11. | 07000-15120 | [1] | O-RING (KIT) | 0.014 kg. |
| 12. | 707-35-91320 | [1] | RING,BACK-UP (KIT) | 0.008 kg. |
| 13. | 01010-81670 | [12] | BOLT | 0.142 kg. |
| 14. | 01643-51645 | [12] | WASHER | 0.021 kg. |
| 15. | 707-59-90310 | [1] | ROD,PISTON | |
| 16. | 07000-15080 | [1] | O-RING (KIT) | 0.009 kg. |
| 17. | 707-35-90940 | [2] | RING,BACK-UP (KIT) | 0.005 kg. |
| 18. | 707-36-13780 | [1] | PISTON | 3.95 kg. |
| 19. | 707-44-13150 | [1] | RING,PISTON (KIT) | 0.112 kg. |
| 20. | 707-39-13150 | [2] | RING,WEAR (KIT) | 0.03 kg. |
| 21. | 707-44-13911 | [2] | RING | 0.06 kg. |
| 22. | 01310-01216 | [1] | SCREW | 0.02 kg. |
| 23 | 707-86-67970 | [1] | TUBE,L.H. | |
| 24 | 07000-13030 | [1] | O-RING (KIT) | 0.001 kg. |
| 25 | 07372-21060 | [2] | BOLT | 0.045 kg. |
| 26 | 01643-51032 | [2] | WASHER | 0.17 kg. |
| 27 | 07372-21045 | [2] | BOLT | 0.039 kg. |
| 29 | 707-88-28380 | [1] | BRACKET | |
| 30 | 707-88-21331 | [1] | BAND | |
| 31 | 07372-21035 | [2] | BOLT | 0.033 kg. |
| 33 | 07283-32746 | [1] | CLIP | |
| 34 | 07283-52737 | [1] | SEAT | 0.05 kg. |
| 35 | 01597-01009 | [2] | NUT | 0.011 kg. |
| 36 | 01643-31032 | [2] | WASHER | 0.054 kg. |
| 37 | 707-88-33030 | [2] | CAP | 0.011 kg. |
| 38 | 07371-30640 | [4] | FLANGE,SPLIT | 0.112 kg. |
| K. | 707-99-48620 | [1] | SERVICE KIT,LIFT CYLINDER | 0.39 kg. |
Our Advantage:
Price:
Our Price Is Not The Lowest One, But Compared With The Same Quality Level Product,Ours Is The Best One.
Stock:
We Are Your Seal Kit Storage. We Have Many Seal Kit Of Different Model In Stock. All Of The o-Ring, Oil Seal And Hydraulic Seal We Have Enough Stocks.
Service And Professional Team:
We Have The Trade Department, Engineer Department, Production Department And After-Sales Service Department. If The Order Goods Have Problem, We Will Solve It Within 24 Hours, And We Will Replace The Seals For You Without Any Cost.
Packing:
Not Only Just Large Quantity Bag Packing, We Also Can Make The Small Size Bag Packing.
Customized Service:
Drawings Or Samples, It Is Enough. We Can Produce Seal Kit Just Based On Your Drawing Or Samples With Kinds Of Colors. We Also Can Give The Professional Advice Based On Your Requirement.
