707-99-66360 Stick Sealing Kit Komatsu Wheel Loader Cylinder Oil Seal Kit WA450-6 Inner Parts
707-99-66360 Stick Sealing Kit Komatsu Wheel Loader Cylinder Oil Seal Kit WA450-6 Inner Parts
| Products Name: | 707-99-66360 Stick Sealing Kit Komatsu Wheel Loader Cylinder Oil Seal Kit WA450-6 Inner Parts |
| Material: | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ |
| Type: | Wheel Loader Inner Spare Parts |
| Model Number: | WA450-6 |
| Color: | Black, White and more |
| Payment Terms: | Western Union, L/C, T/T, , D/A, D/P |
| Supply Ability: | 1000 Piece/Pieces per Month |
| MOQ: | 1 SET(negotiation) |
| Feature: | Abrasion Resistant, Oil Resistance, High Chemical Resistance |
| Brand Name: | Suncar/OEM |
| CertifiC.A.Tion: | ISO9001 |
| Shipping Mode: | By air, by sea ,by express (DHL,Fedex,UPS ,TNT etc.) |
| Size | Standard Size |
| Weight | 0.3~0.5kg |
Basic Requirements For Sealing Materials:
The performance of the sealing material is an important factor to ensure effective sealing. The selection of the sealing material is mainly based on the working environment of the sealing element, such as the temperature, the working pressure, the working medium used, and the movement mode. The basic requirements for sealing materials are as follows:
1. Have certain mechanical properties, such as tensile strength, elongation, etc.;
2. Appropriate elasticity and hardness, small compression set;
3. High temperature and low temperature resistance, no decomposition or softening at high temperature, and no hardening at low temperature;
4. It is compatible with the working medium, without swelling, decomposition, hardening, etc.;
5. Good oxygen resistance and aging resistance, durable;
6. Abrasion resistance, no corrosion to metal;
7. Easy to shape and process, low price.

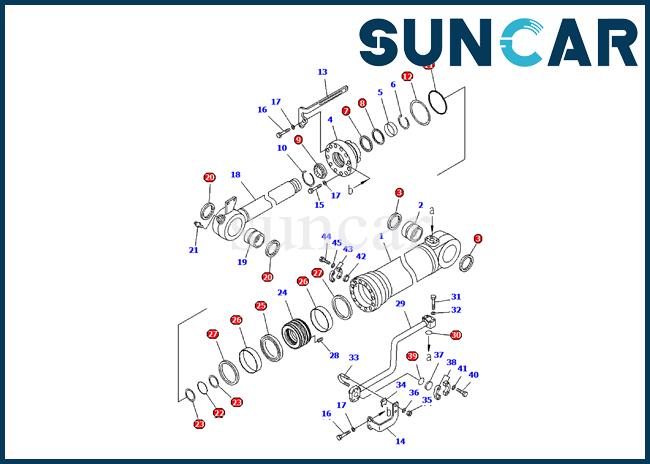

Related Parts:
| Pos. | Part No | Qty | Parts name |
| G1. | 707-01-XP550 | [1] | CYLINDER,(FINAL COATING) |
| 707-01-0K630 | [1] | CYLINDER ASSEMBLY,DUMP | |
| 1. | 721-13-16190 | [1] | CYLINDER |
| 2. | 707-76-12110 | [1] | BUSHING |
| 3. | 421-09-11350 | [2] | SEAL,DUST (KIT) |
| 4. | 707-27-16950 | [1] | HEAD,CYLINDER |
| 5. | 707-52-90780 | [1] | BUSHING |
| 6. | 707-75-10160 | [1] | RING,SNAP |
| 7. | 707-51-10030 | [1] | PACKING,ROD (KIT) |
| 8. | 707-51-10650 | [1] | RING,BUFFER (KIT) |
| 9. | 176-63-56170 | [1] | SEAL,DUST (KIT) |
| 10. | 07179-13114 | [1] | RING,SNAP |
| 11. | 07000-15150 | [1] | O-RING (KIT) |
| 12. | 707-35-91640 | [1] | RING,BACK-UP (KIT) |
| 13. | 707-88-27960 | [1] | PLATE |
| 14. | 707-88-28560 | [1] | BRACKET |
| 15. | 01010-82085 | [8] | BOLT |
| 16. | 01010-82095 | [4] | BOLT |
| 17. | 707-88-75310 | [12] | WASHER |
| 18. | 721-58-10170 | [1] | ROD,PISTON |
| 19. | 707-76-12030 | [1] | BUSHING |
| 21. | 07020-00000 | [1] | FITTING,GREASE |
| 22. | 07000-B5100 | [1] | O-RING (KIT) |
| 23. | 07001-05100 | [2] | RING,BACK-UP (KIT) |
| 24. | 707-36-16580 | [1] | PISTON |
| 25. | 707-44-16190 | [1] | RING,PISTON (KIT) |
| 26. | 707-39-16120 | [2] | RING,WEAR (KIT) |
| 27. | 707-44-16910 | [2] | RING |
| 28. | 01310-01216 | [1] | SCREW |
| 29 | 707-86-13660 | [1] | TUBE |
| 30 | 07000-13035 | [1] | O-RING (KIT) |
| 31 | 07372-21060 | [4] | BOLT |
| 32 | 01643-51032 | [4] | WASHER |
| 33 | 07283-33450 | [1] | CLIP |
| 34 | 07283-53444 | [1] | SEAT |
| 35 | 01597-01009 | [2] | NUT |
| 36 | 01643-31032 | [2] | WASHER |
| 37 | 07378-11210 | [1] | HEAD |
| 38 | 07371-51260 | [2] | FLANGE,SPLIT |
| 39 | 07000-13038 | [1] | O-RING |
| 40 | 01010-81245 | [4] | BOLT |
| 41 | 01643-31232 | [4] | WASHER |
| 42 | 707-88-33040 | [1] | CAP |
| 43 | 07371-31049 | [2] | FLANGE,SPLIT |
| 44 | 07372-21035 | [4] | BOLT |
| K. | 707-99-66360 | [1] | SERVICE KIT,DUMP CYLINDER |

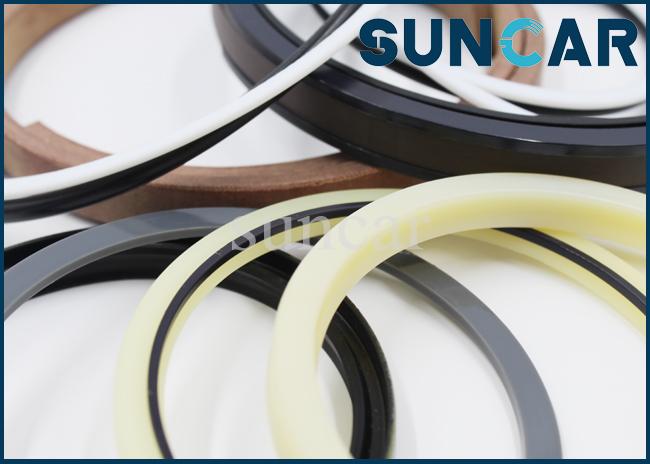

Product Show:
