Hydraulic Seal Kit 31Y1-14200 Excavator Outrigger Cylinder Repair Kits Fits R170W-3 Hyundai
Price:
Negotiation
MOQ:
Trial order acceptable
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
Hydraulic Seal Kit 31Y1-14200 Excavator Outrigger Cylinder Repair Kits Fits R170W-3 Hyundai
| Product Name | Cylinder Seal Kit |
| Model Number | Hyundai R170W-3, R170W-7, R170W-7A |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Part Number | 31Y1-14200 |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| Size | Standard size |
| Applicable Industries | Machinery repair shops, construction works, energy & mining |
| CertifiC.A.Tion | ISO9001 |
| Condition | 100% New |
| C.A.Tegory | Hydraulic cylinder seal kit |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| Feature | Long service life, high chemical resistance, durable |
| Preservation Notice | Closed, dry and avoid the sun |
| Related Brands |
Komatsu, Hitachi, Sumitomo, Doosan, Daewoo, Hyundai, C.A.T, SUNCARSUNCARSUNCARVO.L.VO, Kato... |

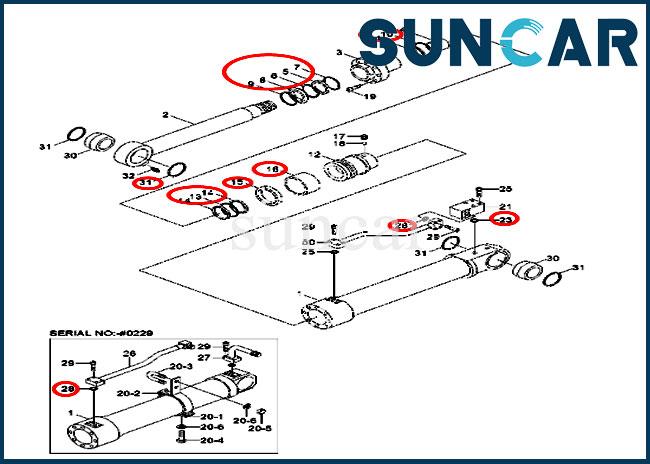

Related Parts:
| Pos. | Part No | Qty | Parts name |
| N*. | 31EK-70031 | [1] | CYLINDER ASSEMBLY,LH |
| *. | 31EK-70531 | [1] | OUTRIGGER CYL-LH |
| *. | 31EK-70041 | [1] | CYLINDER ASSEMBLY,RH |
| *. | 31EK-70541 | [1] | OUTRIGGER CYL-RH |
| *-1. | 31EK-75021 | [1] | OUTRIGGER CYL SUB ASSEMBLY |
| *-1. | 31EK-71521 | [1] | OUTRIGGER CYL SUB |
| 1 | 31Y1-04620 | [1] | TUBE ASSEMBLY |
| 1 | 31Y1-14150 | [1] | TUBE ASSEMBLY |
| 2 | 31Y1-04670 | [1] | ROD ASSEMBLY |
| 3 | 31Y1-04700 | [1] | GLAND |
| 3 | 31Y1-14170 | [1] | GLAND |
| 4 | S731-075040 | [1] | BUSHING-DU |
| K5. | Y200-075011 | [1] | SEAL-ROD |
| K6. | Y180-075020 | [1] | RING-BACK UP |
| K7. | Y260-075000 | [1] | SEAL-STEP |
| K7. | Y240-075011 | [1] | RING-BUFFER |
| K8. | Y110-075011 | [1] | WIPER-DUST |
| K9. | Y190-089000 | [1] | RING-SNAP |
| K10. | S631-115004 | [1] | O-RING |
| K11. | S641-115003 | [1] | RING-BACK UP |
| 12 | 31Y1-04710 | [1] | PISTON |
| K13. | S632-065004 | [1] | O-RING |
| K14. | S642-065003 | [2] | RING-BACK UP |
| K15. | Y420-125000 | [1] | SEAL-PISTON |
| K16. | Y310-125100 | [1] | RING-WEAR |
| 17 | S113-080102 | [1] | SCREW-SET |
| 18 | Y890-015011 | [1] | BALL-STEEL |
| 19 | S109-160552 | [12] | BOLT-SOCKET |
| 30 | 31YC-11070 | [2] | BUSHING-PIN |
| K31. | S700-075205 | [4] | DUST SEAL-DKIY TYPE |
| 32 | S651-810002 | [1] | NIPPLE-GREASE |
| 20 | 31Y1-04720 | [1] | BAND ASSEMBLY |
| 20-1. | 31Y1-04730 | [1] | BAND SUB ASSEMBLY |
| 20-2. | 31YC-31120 | [1] | BAND |
| 20-3. | S071-022230 | [1] | U-BOLT |
| 20-4. | S011-100352 | [2] | BOLT-HEX |
| 20-5. | S201-101002 | [2] | NUT-HEX |
| 20-6. | S411-100002 | [4] | WASHER-SPRING |
| 21 | 35EA-70320 | [1] | CHECK VALVE-DOUBLE |
| 21 | 35EA-70310 | [1] | CHECK VALVE-DOUBLE |
| K23. | S631-018004 | [1] | O-RING |
| 25 | S107-100702 | [4] | BOLT-SOCKET |
| 26 | 31Y1-04740 | [1] | PIPE ASSEMBLY-R,LH |
| 26 | 31Y1-04750 | [1] | PIPE ASSEMBLY-R,RH |
| 27 | 31Y1-04760 | [1] | PIPE ASSEMBLY-B |
| K28. | Y171-015004 | [2] | O-RING |
| 29 | S107-080402 | [8] | BOLT-SOCKET |
| 50 | 31Y1-14180 | [1] | PIPE ASSEMBLY(R)-LH |
| 50 | 31Y1-14190 | [1] | PIPE ASSEMBLY(R)-RH |
| K. | 31Y1-04771 | [1] | SEAL KIT |
| K. | 31Y1-14200 | [1] | SEAL KIT |
ClassifiC.A.Tion and function of hydraulic cylinder seal kit:
- Hydraulic cylinder seal kits are used to seal the gap between different parts of the hydraulic cylinder. Within the system, there are 2 main types of hydraulic seals:
- Dynamic seals: Designed to seal various parts in relative motion. They can be utilized in high pressure and even when rod and hydraulic cylinder seals are in reciprocal motion between the head and the connecting rod.
- Static seals: Our static seal kit seal parts that are not in relative motion. These are used in various loC.A.Tions as per the construction and look of the hydraulic cylinder. The connection rod and piston is the primary area where these seals are used.
Payment Terms:
1. T/T
2. D/A(Documents against Acceptance)
3. L/C (Letter of Credit)
4. O/A(open account trade)
5. Paypal
6. Western Union
7. Credit Card Available
8. D/P (Documents against Payment)
9. 30% deposit, 70% balance before the shipment

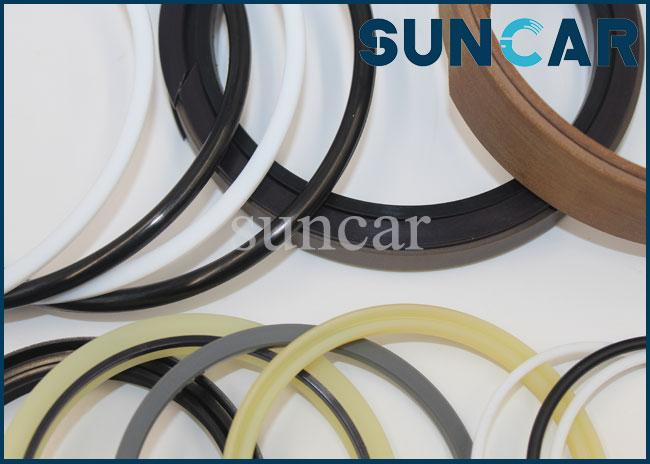

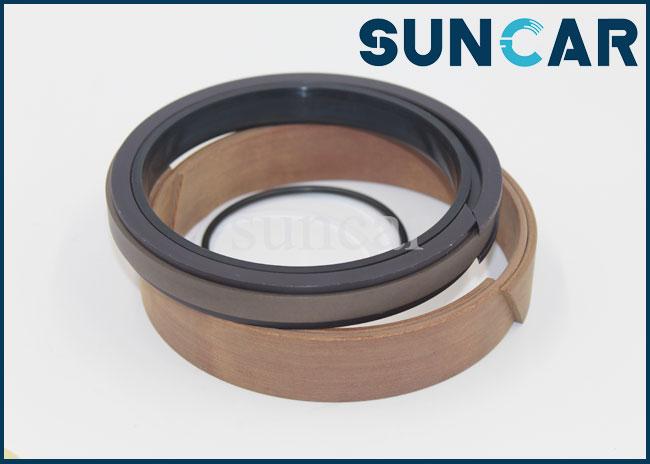

Product Image:
