707-99-75550 Komatsu Lift Cylinder Service Kit WA600-3 Hydraulic Cylinder Inner Oil Sealing Repair Parts
707-99-75550 Komatsu Lift Cylinder Service Kit WA600-3 Hydraulic Cylinder Inner Oil Sealing Repair Parts
| Product name | 707-99-75550 Komatsu Lift Cylinder Service Kit WA600-3 Hydraulic Cylinder Inner Oil Sealing Repair Parts |
| Model Number | Komatsu WA600-3 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Hardness | 70-95 Shore A |
| Packing | PP bag inside, carton box outside |
| Payment Terms | Western Union, L/C, T/T, , D/A, D/P |
| Delivery time | 5-7 Days |
| Shipping Mode | By air, by sea, by express ( Fedex, UPS, DHL, TNT, etc.) |
| Part No. | 707-99-75550 / 7079975550 |
| Warranty | Unavailable |
| Size | Standard size |
| Type | Hydraulic cylinder seal kit |
| Brand name | SUNCAR/OEM |
| CertifiC.A.Tion | ISO9001 |
| AppliC.A.Tion | Komatsu 707-01-0J100 Cylinder Assy |
Service:
1. Warranty time: 1 month at least on the base of right using
2. Neutral packing or your desired packing
3. High quality, 100% factory tested before delivery
4. Competitive prices and timely delivery
5. Sample order accepted
6. Good after-sales service
7. Continue to develop new products all the time

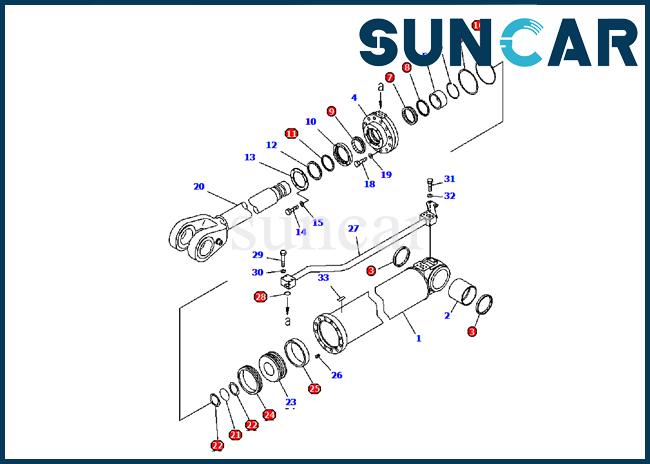

WA600-3 Hydraulic Cylinder Inner Parts Related Parts:
| Pos. | Part No | Qty | Parts name |
| G1. | 707-01-XR091 | [1] | CYLINDER GROUP,L.H. (FINAL COATING) |
| G1. | 707-01-XR090 | [1] | CYLINDER GROUP,L.H. (FINAL COATING) |
| G2. | 707-01-XR101 | [1] | CYLINDER GROUP,R.H. (FINAL COATING) |
| G2. | 707-01-XR100 | [1] | CYLINDER GROUP,R.H. (FINAL COATING) |
| 707-01-0J100 | [1] | CYLINDER ASSEMBLY | |
| 1. | 707-13-22480 | [1] | CYLINDER |
| 2. | 426-70-11890 | [1] | BUSHING |
| 3. | 425-09-11110 | [2] | SEAL,DUST (KIT) |
| 4. | 707-27-22640 | [1] | HEAD,CYLINDER |
| 5. | 707-52-90951 | [1] | BUSHING |
| 6. | 07179-13126 | [1] | RING,SNAP |
| 7. | 707-51-12730 | [1] | PACKING,ROD (KIT) |
| 8. | 707-51-12640 | [1] | RING,BUFFER (KIT) |
| 9. | 707-56-12740 | [1] | SEAL,DUST (KIT) |
| 10. | 707-88-04880 | [1] | COLLAR |
| 11. | 707-56-12820 | [1] | SEAL,DUST (KIT) |
| 11. | 707-56-12651 | [1] | SEAL,DUST (KIT) |
| 12. | 707-88-36621 | [1] | RING |
| 13. | 707-88-36651 | [1] | PLATE |
| 14. | 07372-21045 | [6] | BOLT |
| 15. | 01643-51032 | [6] | WASHER |
| 16. | 07000-55220 | [1] | O-RING (KIT) |
| 17. | 07001-05220 | [1] | RING,BACK-UP (KIT) |
| 18. | 01010-82295 | [12] | BOLT |
| 19. | 01643-32260 | [12] | WASHER |
| 20. | 707-59-12180 | [1] | ROD,PISTON |
| 21. | 07000-55120 | [1] | O-RING (KIT) |
| 22. | 07001-05120 | [2] | RING,BACK-UP (KIT) |
| 23. | 707-36-22250 | [1] | PISTON |
| 24. | 707-44-22280 | [1] | RING,PISTON (KIT) |
| 25. | 07156-02225 | [1] | RING,WEAR (KIT) |
| 26. | 01310-01216 | [1] | SCREW |
| 27 | 707-86-14190 | [1] | TUBE,L.H. |
| 27 | 707-86-14200 | [1] | TUBE,R.H. |
| 28 | 07000-53035 | [1] | O-RING (KIT) |
| 29 | 01010-81075 | [4] | BOLT |
| 30 | 01643-31032 | [4] | WASHER |
| 31 | 01010-81230 | [2] | BOLT |
| 32 | 01643-31232 | [2] | WASHER |
| 33 | 700-11-31980 | [1] | PLATE, NAME |
| K. | 707-99-75585 | [2] | SERVICE KIT,LIFT CYLINDER |
| K. | 707-99-75550 | [2] | SERVICE KIT,LIFT CYLINDER |
1.How can i get the price?
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in WhatsApp and WeChat so that we can offer you a quote.
2. Can you provide sample for me?
-Yes,we can provide samples for you ,but you may need to pay some charge accordingly.
3.What is your lead time?
-It depends on the order quantity and the season you place the order.
Usually we can ship within 5-10 days for small quantity,and about 20 days for large quantity.
4.What is your payment term?
-T/T,Paypal,Western Union and Money Gram.This is negotiation.
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and etc).Please confirm with us before placing orders.
