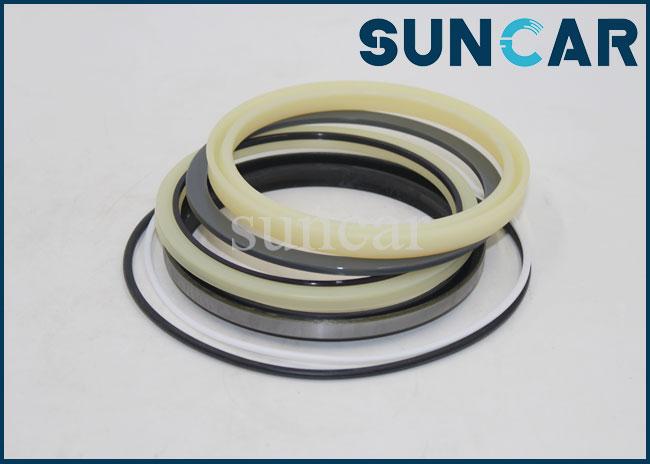

LQ01V00028R300 Replacement Boom Seal Kits Cylinder Repair Kit For Kobelco Excavator SK260-9
LQ01V00028R300 Replacement Boom Seal Kits Cylinder Repair Kit For Kobelco Excavator SK260-9
| Product Name | Kobelco Cylinder Seal Kit |
| Model Number | Kobelco SK260, SK260-9 |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Part Number | LQ01V00028R300 |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| Size | Standard size |
| Applicable Industries | Machinery repair shops, construction works, energy & mining |
| CertifiC.A.Tion | ISO9001 |
| Condition | 100% New |
| C.A.Tegory | Hydraulic Cylinder Seal kit |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| Feature | Long service life, high chemical resistance, durable |
| Preservation Notice | Closed, dry and avoid the sun |
| Related Brands | Komatsu, Hitachi, Sumitomo, Doosan, Daewoo, Hyundai, C.A.T, SUNCARSUNCARSUNCARVO.L.VO, Kato... |
| AppliC.A.Tion | Excavator |
Related Parts:

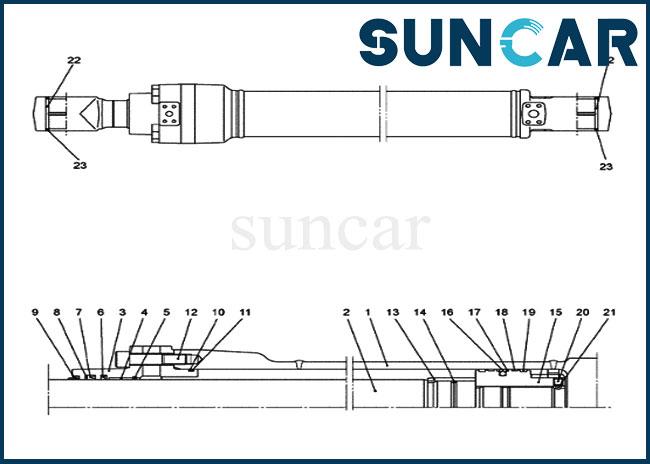

| Pos. | Part No | Qty | Parts name | Comments |
| . . | LQ01V00045F1 | [1] | HYDRAULIC CYLINDER | KOB BOOM |
| 1 | NA | [1] | NOT SERVICED | FOR TUBE,CYLINDER |
| 2 | NA | [1] | NOT SERVICED | FOR ROD,PISTON |
| 3 | LQ01V00028S003 | [1] | CYLINDER HEAD | KOB |
| 4 | 2438U1018S4 | [1] | BUSHING | KOB |
| 5 | 2438U776S5 | [1] | SNAP RING | KOB |
| 6 | YN01V00175S006 | [1] | RING | KOB BUFFER |
| 7 | YN01V00175S007 | [1] | RING | KOB U |
| 8 | YN01V00105S008 | [1] | BACK-UP RING | KOB |
| 9 | YN01V00105S009 | [1] | RING | KOB |
| 10 | ZD12G13000 | [1] | O-RING | KOB |
| 11 | LQ01V00001S011 | [1] | RING | KOB |
| 12 | ZS23C18080 | [12] | CAPSCREW,Hex Socket Head | KOB SCREW |
| 13 | LQ01V00028S013 | [1] | BEARING | KOB CUSHION |
| 14 | YN01V00105S014 | [1] | SEAL | KOB |
| 15 | YN01V00175S015 | [1] | PISTON | KOB |
| 16 | LQ01V00001S016 | [1] | RING | KOB |
| 17 | LQ01V00001S017 | [2] | BACK-UP RING | KOB |
| 18 | YN01V00175S018 | [2] | RING | KOB SLIDE |
| 19 | LQ01V00001S019 | [2] | RING | KOB |
| 20 | 2438U953S21 | [1] | SET SCREW | KOB |
| 21 | 2436R624S6 | [1] | BALL | KOB |
| 22 | LQ12B01476P1 | [4] | BUSHING | KOB |
| 23 | 2438U1381S24 | [4] | SCRAPER RING | KOB |
| K. | YN01V00175R100 | [1] | SEAL | SM REPAIR |
| K. | LQ01V00028R200 | [1] | REPAIR KIT | KOB |
| K. | LQ01V00028R300 | [1] | REPAIR KIT | KOB |
| K. | LQ01V00028R400 | [1] | KIT | KOB REPAIR |
| K. | LQ01V00028R500 | [1] | KIT | KOB REPAIR |
Seal ClassifiC.A.Tion:
According to whether the seal is in contact with its relative moving parts, it can be divided into contact seal and non-contact seal; according to the seal and contact position, it can be divided into circumferential seal and end face seal. End face seal is also called mechanical seal. The centrifugal seal and spiral seal in the dynamic seal are sealed by powering the medium when the machine is running, so they are sometimes called dynamic seals.
