1-09625-439-1 Hydraulic Oil Seals HTCK Crank Shaft Oil Seal For Hitachi EX100W EX200
Price:
Negotiation
MOQ:
Trial order acceptable
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description

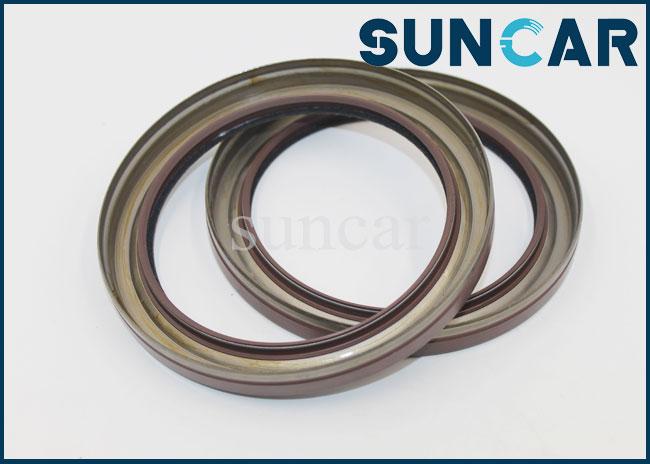

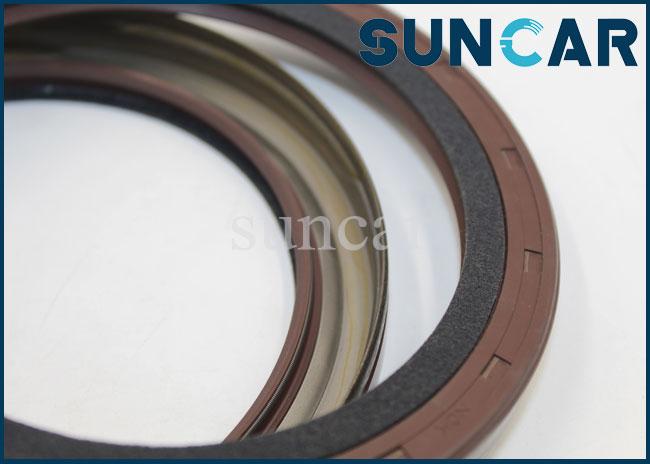

Good Sealing 1-09625-439-1 HTCK Crankshaft Oil Seal For Hitachi EX100W EX200
| Product Name | HTCK Crankshaft Oil Seal |
| Model Number | Hitachi EX100W, EX100WD, EX160WD, EX200, EX200-2, EX200K, EX200K-2, EX200K-3... |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Part Number | 1-09625-439-1 |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| Size | 105*135*15 |
| CertifiC.A.Tion | ISO9001 |
| Condition | 100% New |
| Type | Crankshaft oil seal |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| AppliC.A.Tion | Oil leakage prevention, waterproof |
| Preservation Notice | Closed, dry and avoid the sun |
| Quality | Original quality |

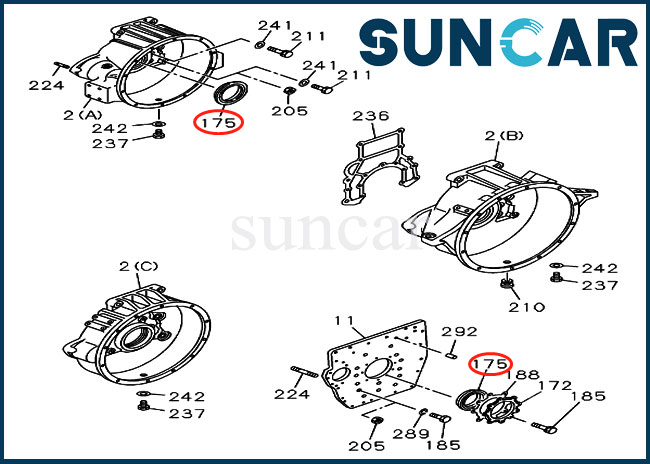

Related Parts:
| Pos. | Part No | Qty | Parts name |
| 1(C). | 1113110421 | [1] | CASE; TIMING GEAR |
| 2(B). | 1113414332 | [1] | HOUSING; FLYWHEEL |
| 16 | 5125240062 | [1] | GEAR; INJ PUMP DRIVE |
| 16 | 1125240121 | [1] | GEAR; INJ PUMP DRIVE |
| 27 | 9125320260 | [1] | SHAFT; DRIVE,INJ PUMP |
| 30 | 9080307160 | [1] | KEY; DRIVE GEAR |
| 31 | 9000060070 | [2] | BEARING; DRIVE SHAFT |
| 32 | 1113120140 | [1] | GASKET; GEAR CASE TO C/BL |
| 32 | 8943706710 | [1] | GASKET; GEAR CASE TO C/BL |
| 35 | 1096254380 | [1] | SEAL; OIL,CRANKSHAFT FRT |
| 36 | 500408450 | [2] | BOLT; GEAR CASE |
| 36 | 280808450 | [2] | BOLT; GEAR CASE |
| 36 | 500408200 | [4] | BOLT; GEAR CASE |
| 36 | 286808200 | [4] | BOLT; GEAR CASE |
| 36 | 501408250 | [7] | BOLT; GEAR CASE |
| 36 | 286808250 | [7] | BOLT; GEAR CASE |
| 36 | 5090000841 | [5] | BOLT; GEAR CASE |
| 36 | 280808500 | [5] | BOLT; GEAR CASE |
| 37 | 9091605080 | [5] | WASHER; PL,GEAR CASE |
| 38 | 9081510180 | [1] | PIN; GEAR CASE COVER |
| 46 | 5093020030 | [1] | STUD; BRG COVER,RR |
| 49(A). | 1113220520 | [1] | GASKET; GEAR CASE TO COVER |
| 49(C). | 1113220550 | [1] | GASKET; GEAR CASE TO COVER |
| 54(C). | 5113210143 | [1] | COVER; GEAR CASE |
| 57 | 5113210090 | [1] | COVER; TIMING CHECK HOLE |
| 58 | 500406140 | [2] | BOLT; CHECK HOLE COVER |
| 58 | 280806120 | [2] | BOLT; CHECK HOLE COVER |
| 65 | 1112820130 | [2] | GASKET; COVER,TIMING CHECK HOLE |
| 65 | 8970276011 | [2] | GASKET; COVER,TIMING CHECK HOLE |
| 65 | 1112820130 | [1] | GASKET; COVER,TIMING CHECK HOLE |
| 65 | 8970276011 | [1] | GASKET; COVER,TIMING CHECK HOLE |
| 86(C). | 1193100071 | [1] | ELBOW; TACHOMETER DRIVE |
| 93 | 1096232150 | [1] | GASKET; ELBOW |
| 175 | 1096254391 | [1] | SEAL; OIL,CR/SHF,RR |
| 205 | 9991104140 | [1] | NUT; HSG |
| 205 | 911602140 | [1] | NUT; HSG |
| 211 | 500408250 | [7] | BOLT; HSG |
| 211 | 9910664650 | [2] | BOLT; HSG |
| 211 | 288914600 | [2] | BOLT; HSG |
| 211 | 9910664500 | [5] | BOLT; HSG |
| 211 | 288914450 | [5] | BOLT; HSG |
| 224 | 9944112350 | [3] | STUD; STARTER |
| 241 | 9096510690 | [8] | WASHER; PL,HSG |
| 252 | 501408200 | [3] | BOLT; GEAR BOX |
| 252 | 286808200 | [3] | BOLT; GEAR BOX |
| 275 | 5113270090 | [1] | POINTER; TIMING CHECK HOLE |
| 315 | 9098538370 | [1] | PLATE; LOCK |
| 322 | 9098435300 | [1] | NUT; GEAR,BALL BRG |
| 474 | 1125390170 | [1] | ADAPTER; ELBOW DRIVE |
Please click "ask a question", or call us if you have a parts need that you do not see listed here.
