8-94235-369-0 Camshaft Rear Seal, EX40 Hitachi Seal Kit

Price Negotiable

Price: Negotiation

MOQ: Trial order acceptable

Delivery Time: 3-5 days after payment received(public holiday excluded)

Brand: SUNCAR

Product Description

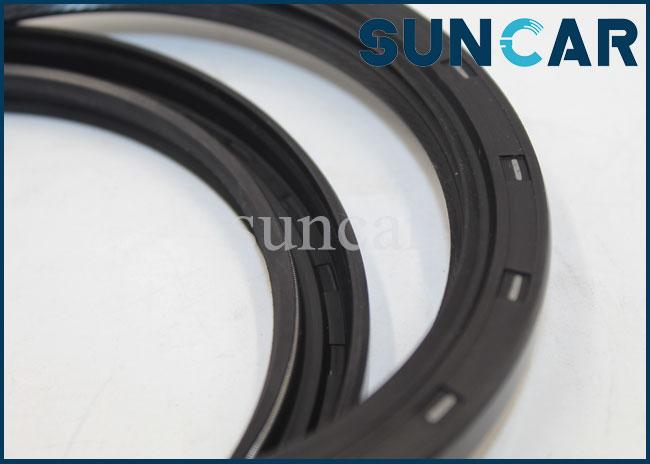

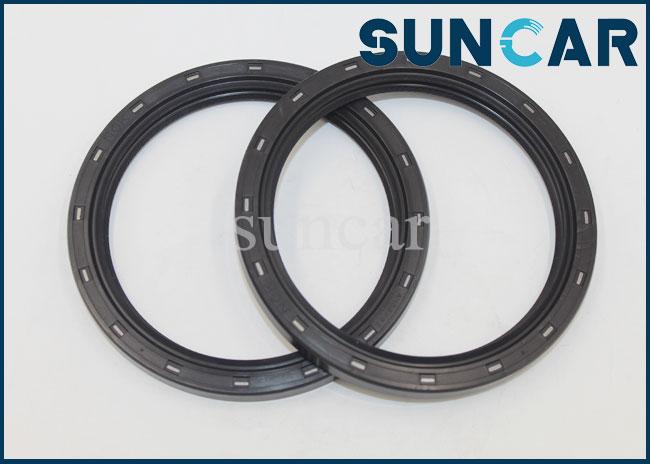

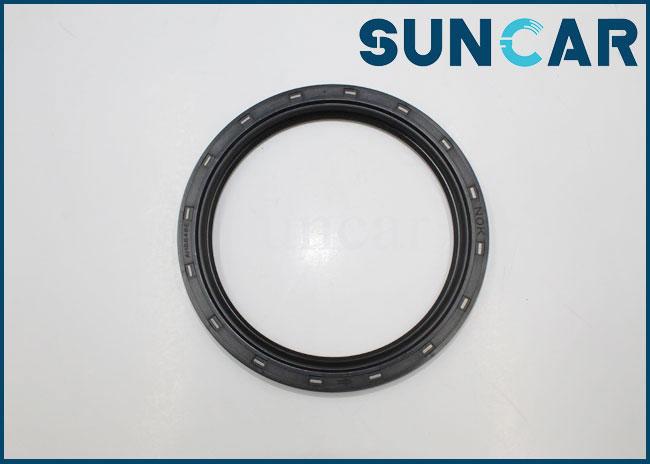

Rear Crank Shaft Sealing 8-94235-369-0 Oil Seal Kit Fits EX40 Hitachi Excavator

Product Name	Rear Crank Shaft Oil Seal
Model Number	Hitachi EX40, EX45, EX60UR
Place of Origin	China(Mainland)
Brand name	SUNCAR
Packing	PP bag inside, carton box outside
Shipping Mode	By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Part Number	8-94235-369-0
Payment Terms	Western Union, L/C, T/T, Money Gram, D/A, D/P
CertifiC.A.Tion	ISO9001
Condition	100% New
Type	SC, TC, TB, TA, SB, KC, VC, TCK and so on
Warranty	Unavailable
Customized	OEM & ODM are welcomed
AppliC.A.Tion	Oil leakage prevention, waterproof
Preservation Notice	Closed, dry and avoid the sun
Quality	Original quality, high performance
Size	9511810
Uses	Good oil resistance, wear resistance, and corrosion resistance

About Oil Seal Use Guides:

Oil seals that are not used temporarily should be kept properly to prevent contamination with oil, dust or sun exposure.
When the shaft diameter is worn into a "V"-shaped groove, so that the contact pressure between the new oil seal lip and the shaft cannot be reduced, the displacement method can be used to make up.
When the lubriC.A.Ting oil volume of the reducer is less than or equal to 7 liters, the amount of lubricant added per liter is 20-30ml;
When 7-15 liters, the amount added is 15-20ml per liter of lubriC.A.Ting oil;
When>15 liters, add 10ml per liter of lubriC.A.Ting oil.

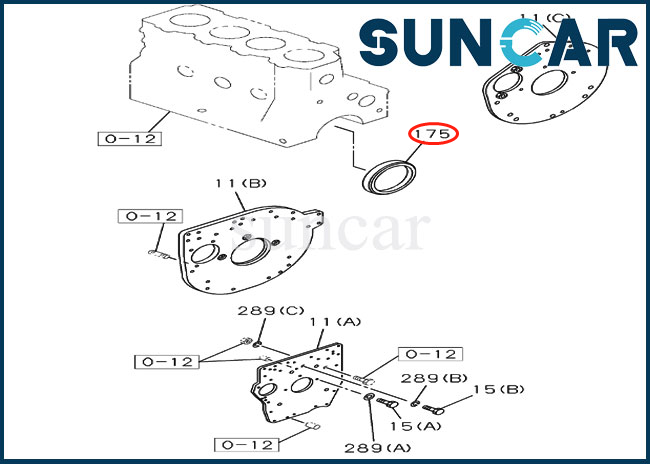

Related Parts:

Pos.	Part No	Qty	Parts name
1(B).	8944287993	[1]	CASE; TIMING GEAR
2(C).	8943415310	[1]	HOUSING; FLYWHEEL
32	8971274260	[1]	GASKET; GEAR CASE TO C/BL
38	9081510200	[2]	PIN; GEAR CASE COVER
49	8941401171	[1]	GASKET; GEAR CASE TO COVER
54	8941553602	[1]	COVER; GEAR CASE
54	8972312141	[1]	COVER; GEAR CASE
57	5113210090	[2]	COVER; TIMING CHECK HOLE
58	500406140	[4]	BOLT; CHECK HOLE COVER
58	280806120	[4]	BOLT; CHECK HOLE COVER
60	8942059861	[6]	BOLT; COVER TO CASE
60	280808600	[6]	BOLT; COVER TO CASE
62	500408320	[8]	BOLT; COVER
62	280808300	[8]	BOLT; COVER
62	500408600	[1]	BOLT; COVER
62	280808600	[1]	BOLT; COVER
62	9958212550	[1]	BOLT; COVER
65	8971186980	[2]	GASKET; COVER,TIMING CHECK HOLE
65	8970276011	[2]	GASKET; COVER,TIMING CHECK HOLE
68	8941557211	[1]	COVER ASM; GEAR CASE COVER
68	8941557211	[1]	COVER ASM; GEAR CASE COVER
71	5193890020	[4]	RUBBER; MTG,COVER
71	5193890020	[4]	RUBBER; MTG,COVER
72	5193890090	[4]	BUSHING; SPACER,COVER TO COVER
72	5193890090	[4]	BUSHING; SPACER,COVER TO COVER
73	501406180	[4]	BOLT; COVER FIX
73	501406180	[4]	BOLT; COVER FIX
83	9091607080	[1]	WASHER; PL,COVER
103	5096250790	[1]	SEAL; OIL,CR/SHF,FRT
175	8942353690	[1]	SEAL; OIL,CR/SHF,RR
175	8970715611	[1]	SEAL; OIL,CR/SHF,RR
211(A).	5090002270	[3]	BOLT; HSG
211(B).	9958212300	[2]	BOLT; HSG
211(B).	500410300	[3]	BOLT; HSG
211(B).	500410300	[3]	BOLT; HSG
289(C).	9091505100	[1]	WASHER; LK,PLATE,RR
349(B).	8941557223	[1]	SPACER; GEAR CASE COVER
349(B).	8941557223	[1]	SPACER; GEAR CASE COVER
366	500408200	[6]	BOLT; GEAR CASE
366	500408450	[2]	BOLT; GEAR CASE
