China D355A-3-5 Komatsu Seals 195-63-05120 Crawler Dozer Lift Cylinder Seal Repair Kit for sale

D355A-3-5 Komatsu Seals 195-63-05120 Crawler Dozer Lift Cylinder Seal Repair Kit

Name: D355A-3-5 Komatsu Seals 195-63-05120 Crawler Dozer Lift Cylinder Seal Repair Kit
Brand: Guangzhou Suncar Seals Co., Ltd.

Price Negotiable

Price: Negotiation

MOQ: Trial order acceptable

Delivery Time: 3-5 days after payment received(public holiday excluded)

Brand: SUNCAR

Product Description

D355A-3-5 Komatsu Seals 195-63-05120 Crawler Dozer Lift Cylinder Seal Repair Kit

Product Name	Crawler Dozer Lift Cylinder Seal Repair Kit
Model Number	KOMATSU D355A-3, D355A-5
Place of Origin	China(Mainland)
Brand name	SUNCAR
Packing	PP bag inside, carton box outside
Shipping Mode	By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Part Number	195-63-05120
Payment Terms	Western Union, L/C, T/T, Money Gram, D/A, D/P
CertifiC.A.Tion	ISO9001
Condition	100% New
Warranty	Unavailable
Customized	OEM & ODM are welcomed
AppliC.A.Tion	Crawler tractor-loader
Preservation Notice	Closed, dry and avoid the sun
Quality	Original quality, high performance
Uses	Good oil resistance, wear resistance, and corrosion resistance
Rod	90MM
Bore	160MM
Cylinder Numbers	195-63-01110, 195-63-01120, 195-63-13700, 195-63-13800

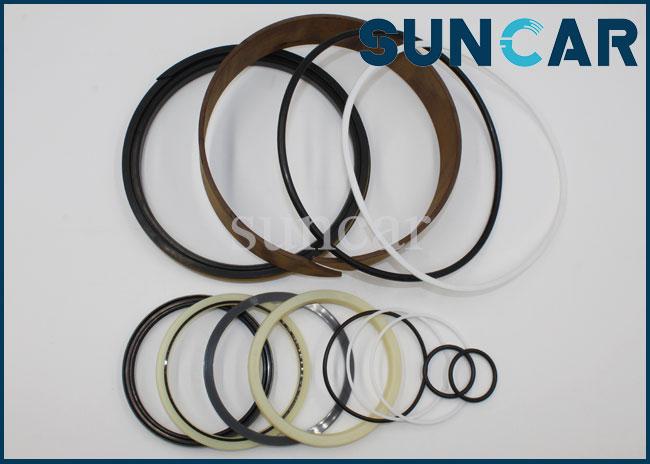

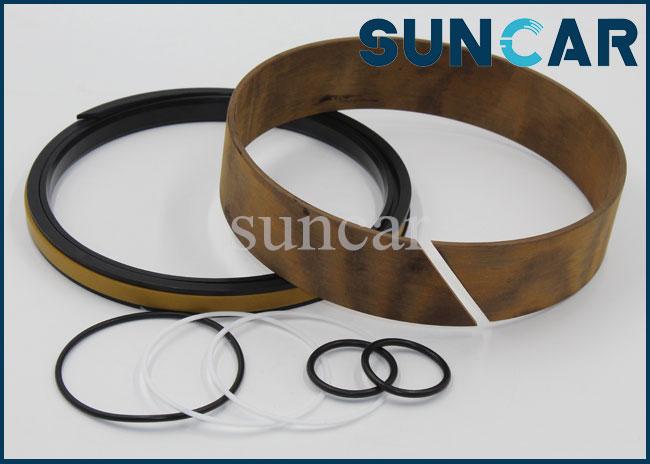

Product Show:

Related Parts:

Pos.	Part No.	Product Name	QYT.
	195-63-13700	CYLINDER ASSEMBLY,BLADE LIFT¤ L.H.	1
	195-63-13800	CYLINDER ASSEMBLY,BLADE LIFT¤ R.H.	1
1	195-63-13142	• CYLINDER,L.H.	1
	195-63-13240	• CYLINDER,R.H.	1
2	195-63-12640	• BUSHING	2
3	195-63-13121	• ROD,PISTON	1
4	07137-05509	• BUSHING	1
5	07000-03055	• O-RING (KIT)	2
6	04071-00125	• RING,SNAP	2
7	195-63-13131	• HEAD,CYLINDER	1
8	07177-09035	• BUSHING	1
9	707-51-90110	• U-PACKING (KIT)	1
10	195-63-52470	• GLAND	1
11	07177-09020	• BUSHING	1
12	195-63-94170	• SEAL,DUST (KIT)	1
13	07179-00113	• RING,SNAP	1
14	07000-03110	• O-RING (KIT)	1
15	01010-51860	• BOLT	2
16	01602-21854	• WASHER,SPRING	2
17	07000-16150	• O-RING (KIT)	1
18	07146-05152	• RING,BACK-UP (KIT)	1
19	01010-82775	• BOLT	4
20	01602-22783	• WASHER,SPRING	4
	195-63-82560	• PISTON ASSEMBLY	1
21		•• PISTON	1
22		•• VALVE	3
23		•• SEAT	6
24	07155-01640	• RING,WEAR (KIT)	1
25	707-44-16180	• RING,PISTON (KIT)	1
26	707-40-16010	• RETAINER	2
27	04020-00616	• PIN	2
28	07165-15252	• NUT	1
	195-63-14002	• VALVE ASSEMBLY,QUICK DROP VALVE	1
29		•• BODY	1
30		•• VALVE	1
31		•• VALVE	1
32	195-63-14163	•• COLLAR	1
33	195-63-14180	•• SPRING	1
34	01642-21216	•• WASHER	1
35	01011-51615	•• BOLT	2
36	01602-21648	•• WASHER,SPRING	2
37	07000-12055	• O-RING (KIT)	1
38	195-63-14130	• ELBOW	1
39	07000-13048	• O-RING (KIT)	1
40	07000-13045	• O-RING (KIT)	1
41	01010-51075	• BOLT	2
42	01010-51065	• BOLT	2
43	01602-21030	• WASHER,SPRING	4
44	01010-51280	• BOLT	2
45	01010-51270	• BOLT	2
46	01602-21236	• WASHER,SPRING	4
47	195-63-13462	• TUBE,L.H.	1
	195-63-13472	• TUBE,R.H.	1
48	07000-13035	• O-RING (KIT)	1
49	01010-51070	• BOLT	4
50	01602-21030	• WASHER,SPRING	4
51	195-63-13563	• TUBE,L.H.	1
	195-63-13573	• TUBE,R.H.	1
52	07000-13045	• O-RING (KIT)	1
53	07000-13038	• O-RING (KIT)	2
54	01010-51270	• BOLT	3
55	01010-51260	• BOLT	2
56	01602-21236	• WASHER,SPRING	5
57	07282-03411	• CLAMP	1
58	01010-51020	• BOLT	2
59	01602-21030	• WASHER,SPRING	2
60	195-63-13890	• BRACKET,L.H.	1
	195-63-13990	• BRACKET,R.H.	1
61	07283-23442	• CLIP	2
62	01599-01011	• NUT	4
63	01643-31032	• WASHER	4
64	01010-51025	• BOLT	2
65	01643-31032	• WASHER	2
66	195-63-12170	• PLATE	1
67	01010-51870	• BOLT	1
68	01602-21854	• WASHER,SPRING	1
	195-63-05120	SERVICE KIT	2
