Komatsu 195-63-05041 Blade Tilt Hydraulic Cylinder Seal Kit For D355-3 Crawler Dozer
Price:
Negotiation
MOQ:
Trial order acceptable
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description

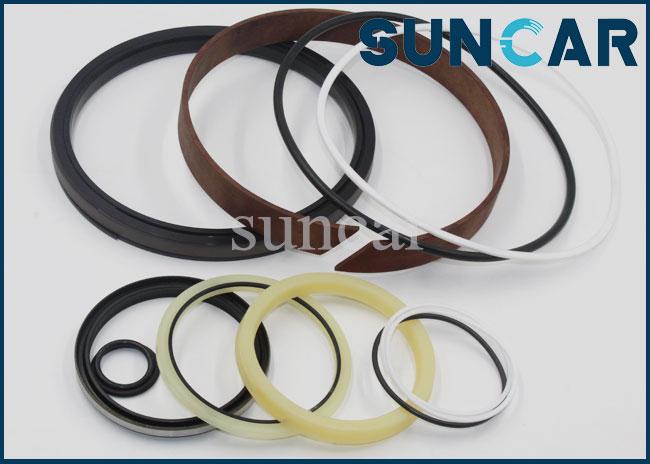

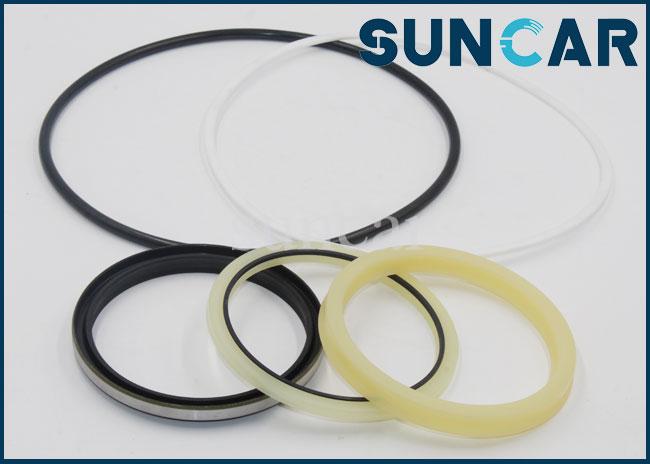

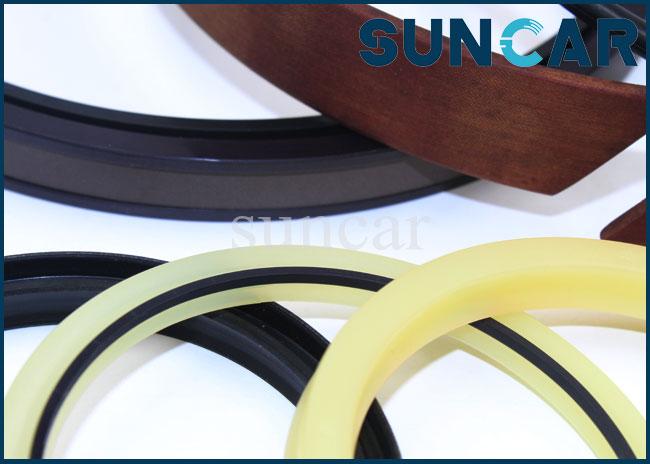

Komatsu 195-63-05041 Blade Tilt Hydraulic Cylinder Seal Kit For D355-3 Crawler Dozer
| Product Name | Komatsu Blade Tilt Hydraulic Cylinder Seal Kit |
| Model Number | KOMATSU D355A-3 |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Part Number | 195-63-05041 |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| CertifiC.A.Tion | ISO9001 |
| Condition | 100% New |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| AppliC.A.Tion | Komatsu Dozer Tilt |
| Preservation Notice | Closed, dry and avoid the sun |
| Quality | Original quality, high performance |
| Uses | Good oil resistance, wear resistance, and corrosion resistance |
| Rod | 90MM |
| Bore | 250MM |
| High Light | Cylinder seal kits, hydraulic seal kits |
Our Product Range:
- We set up the PTFE polymer materials, PU polyurethane and NBR materials seals producing line. All sealing products are widely used in different kinds of excavator and breaker hammer installation and maintenance systems, wining high reputation from the customers at home and abroad. Our factory :The following seal kits we also can supply:
* Hydraulic pump seal kit
* Control valve seal kit
* O ring kit box
* Gear pump seal kit
* Travel motor seal kit
* Swing motor seal kit
* Pilot valve seal kit/PPC seal
* Adjuster seal kit
* Center joint seal kit
* Boom cylinder seal kit
* Arm cylinder seal kit
* Bucket cylinder seal kit
* Breaker hammer seal kit
Related Parts:
| Pos. | Part No. | Product Name | QYT. |
| 1 | 195-63-52440 | • CYLINDER | 1 |
| 2 | 195-63-52161 | • BUSHING | 1 |
| 3 | 195-63-52330 | • HEAD | 1 |
| 4 | 07146-05242 | • RING,BACK-UP (KIT) | 1 |
| 5 | 07000-15240 | • O-RING (KIT) | 1 |
| 6 | 154-63-52173 | • U-PACKING (KIT) | 1 |
| 7 | 07177-09035 | • BUSHING | 1 |
| 8 | 195-63-52470 | • GLAND | 1 |
| 9 | 07016-00908 | • SEAL,DUST (KIT) | 1 |
| 10 | 07177-09020 | • BUSHING | 1 |
| 11 | 07000-13110 | • O-RING (KIT) | 1 |
| 12 | 01010-51865 | • BOLT | 2 |
| 13 | 01602-01854 | • WASHER | 2 |
| 14 | 07179-00113 | • RING | 1 |
| 15 | 01011-83020 | • BOLT | 6 |
| 16 | 01601-23075 | • WASHER | 6 |
| 17 | 195-63-52121 | • ROD | 1 |
| 17A | 195-63-52980 | • CAP | 1 |
| 18 | 195-63-43170 | • RETAINER | 1 |
| 19 | 195-63-52171 | • PISTON | 1 |
| 20 | 195-63-43271 | • U-PACKING (KIT) | 2 |
| 21 | 07155-02555 | • RING,WEAR (KIT) | 1 |
| 22 | 195-63-43180 | • RETAINER | 1 |
| 23 | 04069-02202 | • RING | 1 |
| 24 | 175-63-52432 | • NUT | 1 |
| 25 | 195-63-52790 | • TUBE | 1 |
| 26 | 07000-13035 | • O-RING (KIT) | 1 |
| 27 | 01010-51085 | • BOLT | 1 |
| 28 | 01602-21030 | • WASHER | 4 |
| 29 | 07282-03411 | • CLAMP | 1 |
| 30 | 01010-51020 | • BOLT | 2 |
| 31 | 01602-21030 | • WASHER | 2 |
| 32 | 195-63-52292 | • TUBE | 1 |
| 33 | 07000-13035 | • O-RING (KIT) | 1 |
| 34 | 01010-51065 | • BOLT | 4 |
| 35 | 01602-21030 | • WASHER | 4 |
| 36 | 195-63-52880 | • COVER | 1 |
| 38 | 01010-51235 | • BOLT | 7 |
| 39 | 01602-21236 | • WASHER | 7 |
| 40 | 01643-21232 | • WASHER | 7 |
| 41 | 175-63-52441 | • WASHER | 1 |
| KIT | 195-63-05041 | SERVICE KIT | 1 |
Product Show:
