Oil Resistance 707-98-74400 Lift Cylinder Repair Seal Kit For D375A-3 D375A-3A Komatsu
Price:
Negotiation
MOQ:
Trial order acceptable
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
Oil Resistance 707-98-74400 Lift Cylinder Repair Seal Kit For D375A-3 D375A-3A Komatsu
| Product Name | 707-98-74400 Komatsu Lift Cylinder Repair Seal Kit |
| Model Number | KOMATSU D375A-2, D375A-3, D375A-3A, D375A-3-01 |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Part Number | 707-98-74400 |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| CertifiC.A.Tion | ISO9001 |
| Condition | 100% New |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| AppliC.A.Tion | Ripper Lift |
| Preservation Notice | Closed, dry and avoid the sun |
| Quality | Original quality, high performance |
| Uses | Good oil resistance, wear resistance, and corrosion resistance |
| Rod | 110MM |
| Bore | 225MM |
| Cylinder | 195-63-01440, 195-63-01450 |
| High Light | Hydraulic Seal Kits, cylinder seal kit |
Related Parts:
| Pos. | Part No. | Product Name | QYT. |
| G-1 | 195-63-X1441 | CYLINDER GROUP,RIPPER LIFT, L.H. | 1 |
| G-1 | 195-63-X1440 | CYLINDER GROUP,RIPPER LIFT, L.H. | 1 |
| G-2 | 195-63-X1451 | CYLINDER GROUP,RIPPER LIFT, R.H. | 1 |
| G-2 | 195-63-X1450 | CYLINDER GROUP,RIPPER LIFT, R.H. | 1 |
| 195-63-01441 | CYLINDER ASSEMBLY,L.H. | 1 | |
| 195-63-01440 | CYLINDER ASSEMBLY,L.H. | 1 | |
| 195-63-01451 | CYLINDER ASSEMBLY,R.H. | 1 | |
| 195-63-01450 | CYLINDER ASSEMBLY,R.H. | 1 | |
| 1 | 195-63-44640 | • CYLINDER | 1 |
| 2 | 707-76-10120 | • BUSHING | 1 |
| 3 | 07145-00100 | • SEAL,DUST (KIT) | 2 |
| 4 | 07020-00675 | • FITTING,GREASE | 1 |
| 5 | 07042-10108 | • PLUG | 1 |
| 6 | 707-27-22320 | • HEAD,CYLINDER | 1 |
| 6 | 707-27-22290 | • HEAD,CYLINDER | 1 |
| 7 | 707-52-90850 | • BUSHING | 1 |
| 7 | 07177-01135 | • BUSHING | 1 |
| 8 | 707-51-11030 | • PACKING,ROD (KIT) | 1 |
| 8 | 707-51-11110 | • PACKING,ROD (KIT) | 1 |
| 8A | 707-51-11640 | • RING,BUFFER (KIT) | 1 |
| 9 | 198-63-94170 | • SEAL,DUST (KIT) | 1 |
| 9 | 07016-21109 | • SEAL,DUST (KIT) | 1 |
| 10 | 07179-13126 | • RING,SNAP | 1 |
| 11 | 07000-15220 | • O-RING (KIT) | 1 |
| 12 | 07001-05220 | • RING,BACK-UP (KIT) | 1 |
| 13 | 01010-62795 | • BOLT | 6 |
| 14 | 01011-62705 | • BOLT | 2 |
| 15 | 01643-32780 | • WASHER | 8 |
| 15 | 01602-02783 | • WASHER,SPRING | 8 |
| 16 | 195-63-44221 | • ROD,PISTON | 1 |
| 17 | 707-76-10110 | • BUSHING | 1 |
| 18 | 07145-00100 | • SEAL,DUST (KIT) | 2 |
| 19 | 07020-00900 | • FITTING,GREASE | 1 |
| 20 | 707-36-22050 | • PISTON | 1 |
| 21 | 07000-B2085 | • O-RING (KIT) | 1 |
| 21 | 07000-12085 | • O-RING (KIT) | 1 |
| 22 | 07001-02085 | • RING,BACK-UP (KIT) | 2 |
| 23 | 707-44-22290 | • RING,PISTON (KIT) | 1 |
| 23 | 707-44-22280 | • RING,PISTON (KIT) | 1 |
| 24 | 07155-02250 | • RING,WEAR (KIT) | 1 |
| 25 | 707-40-22021 | • SPACER | 2 |
| 26 | 01010-61455 | • BOLT | 6 |
| 27 | 195-78-72450 | TUBE,L.H. | 1 |
| 27 | 195-78-72460 | TUBE,R.H. | 1 |
| 28 | 195-78-72430 | TUBE,L.H. | 1 |
| 28 | 195-78-72440 | TUBE,R.H. | 1 |
| 29 | 07000-13035 | O-RING (KIT) | 2 |
| 30 | 01010-81050 | BOLT | 4 |
| 31 | 01010-81060 | BOLT | 4 |
| 32 | 01643-51032 | WASHER | 8 |
| 32 | 01602-21030 | WASHER,SPRING | 8 |
| 33 | 07283-23450 | CLIP | 2 |
| 34 | 01010-81025 | BOLT | 4 |
| 35 | 01643-31032 | WASHER | 4 |
| 36 | 195-78-72550 | BRACKET,L.H. | 1 |
| 36 | 195-78-72560 | BRACKET,R.H. | 1 |
| 37 | 01643-31032 | WASHER | 4 |
| 38 | 01599-01011 | NUT | 4 |
| 39 | 707-88-33040 | CAP | 2 |
| 39 | 07378-11000 | HEAD | 2 |
| 40 | 07000-13032 | O-RING | 2 |
| 41 | 07371-31049 | FLANGE,SPLIT | 4 |
| 42 | 07372-21035 | BOLT | 8 |
| 43 | 01643-51032 | WASHER | 8 |
| 707-99-74440 | SERVICE KIT | 2 | |
| 707-98-74400 | SERVICE KIT | 2 |

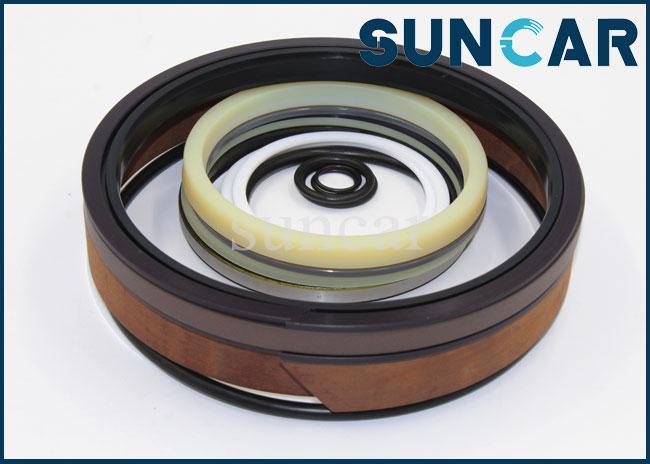

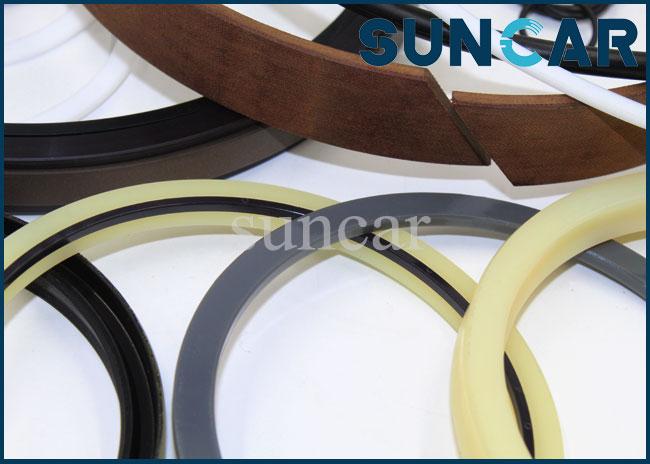

Product Image:
