China Komatsu 707-99-56510 Blade Service Kit Lift Hydraulic Cylinder Repair Kits for sale

Komatsu 707-99-56510 Blade Service Kit Lift Hydraulic Cylinder Repair Kits

Name: Komatsu 707-99-56510 Blade Service Kit Lift Hydraulic Cylinder Repair Kits
Brand: Guangzhou Suncar Seals Co., Ltd.

Price Negotiable

Price: Negotiation

MOQ: Trial order acceptable

Delivery Time: 3-5 days after payment received(public holiday excluded)

Brand: SUNCAR

Product Description

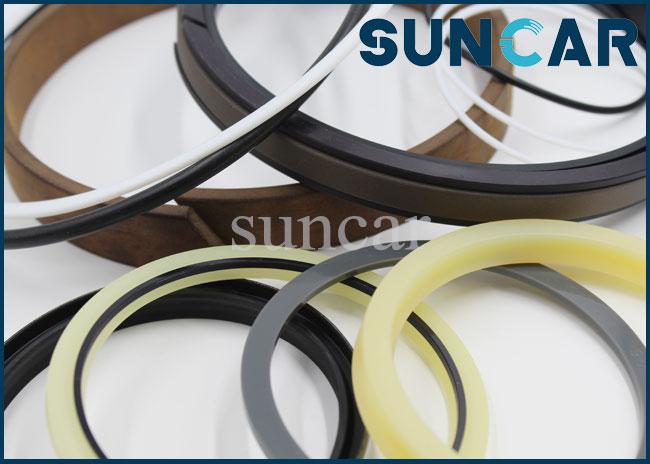

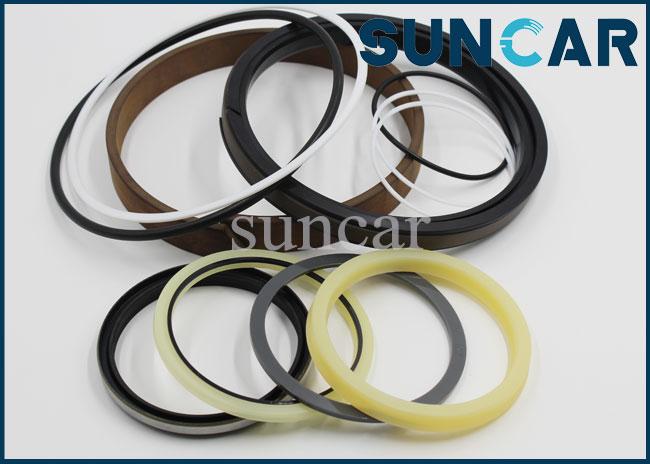

Komatsu 707-99-56510 BLade Service Kit Lift Hydraulic Cylinder Repair Kits

Product Name	BLade Lift Hydraulic Cylinder Service Kit
Model Number	KOMATSU D375A-3, D375A-5, D375A-3A
Place of Origin	China(Mainland)
Brand name	SUNCAR
Packing	PP bag inside, carton box outside
Shipping Mode	By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Part Number	707-99-56510
Payment Terms	Western Union, L/C, T/T, Money Gram, D/A, D/P
CertifiC.A.Tion	ISO9001
Condition	100% New
Warranty	Unavailable
Customized	OEM & ODM are welcomed
AppliC.A.Tion	Komatsu dozer lift
Preservation Notice	Closed, dry and avoid the sun
Quality	Original quality, high performance
Uses	Good oil resistance, wear resistance, and corrosion resistance
Rod	90MM
Bore	150 MM
Cylinder	195-63-01413
High Light	Hydraulic seal kits, cylinder seal kit

Related Parts:

Pos.	Part No.	Product Name	QYT.
G-1	707-03-X7170	CYLINDER GROUP,L.H. (FINAL COATING)	1
G-1	195-63-X1413	CYLINDER GROUP,L.H.	1
G-1	195-63-X1412	CYLINDER GROUP,L.H.	1
G-1	195-63-X1411	CYLINDER GROUP,L.H.	1
G-2	707-03-X7180	CYLINDER GROUP,R.H. (FINAL COATING)	1
G-2	195-63-X1423	CYLINDER GROUP,R.H.	1
G-2	195-63-X1422	CYLINDER GROUP,R.H.	1
G-2	195-63-X1421	CYLINDER GROUP,R.H.	1
	195-63-01413	CYLINDER ASSEMBLY	1
	195-63-01410	CYLINDER ASSEMBLY	1
1	195-63-22141	• CYLINDER	1
2	195-63-13390	• BUSHING	2
3	707-27-15150	• HEAD,CYLINDER	1
3	707-27-15020	• HEAD,CYLINDER	1
4	707-52-90650	• BUSHING	1
4	07177-09035	• BUSHING	1
5	707-51-90030	• PACKING,ROD (KIT)	1
5	707-51-90211	• PACKING,ROD (KIT)	1
5A	707-51-90640	• RING,BUFFER (KIT)	1
6	195-63-94170	• SEAL,DUST (KIT)	1
7	07179-13104	• RING,SNAP	1
8	07000-12145	• O-RING (KIT)	1
9	07146-02146	• RING,BACK-UP (KIT)	1
10	01010-82785	• BOLT	4
11	01602-22783	• WASHER,SPRING	4
12	195-63-22122	• ROD,PISTON	1
13	195-63-22171	• CAP	1
14	195-63-22272	• SHIM, 1.0MM	10
15	01011-82475	• BOLT	4
16	01643-32460	• WASHER	4
17	01580-12419	• NUT	4
18	707-40-15050	• RETAINER	1
	195-63-22480	• PISTON ASSEMBLY	1
19		•• PISTON	1
20		•• VALVE	2
20		•• VALVE	2
21		•• SEAT	8
22	07000-B2055	• O-RING (KIT)	1
22	07000-12055	• O-RING (KIT)	1
23	07001-02055	• RING,BACK-UP (KIT)	2
24	707-44-15190	• RING,PISTON (KIT)	1
24	707-44-15180	• RING,PISTON (KIT)	1
25	707-39-15820	• RING,WEAR (KIT)	2
26	707-40-15060	• SPACER	2
27	01252-61035	• BOLT	6
28	195-63-13491	• HOOK	1
29	01010-81670	• BOLT	1
30	01643-31645	• WASHER	1
	195-63-14300	VALVE ASSEMBLY,QUICK DROP	2
31		• BODY	1
32		• VALVE	1
33		• VALVE	1
34	195-63-14180	• SPRING	1
35	01642-21216	• WASHER	1
36	195-63-14163	• COLLAR	1
37	07000-12055	O-RING (KIT)	1
38	01011-81615	BOLT	2
39	01643-31645	WASHER	2
40	195-63-22570	TUBE,L.H.	1
40	195-61-43750	TUBE,L.H.	1
40	195-63-22670	TUBE,R.H.	1
40	195-61-43740	TUBE,R.H.	1
40A	195-61-51410	PLATE	1
41	07000-13035	O-RING (KIT)	2
41	07000-13035	O-RING (KIT)	1
42	01010-81075	BOLT	4
42	01010-51070	BOLT	4
43	01643-31032	WASHER	4
44	195-63-14130	ELBOW	1
45	07000-13048	O-RING (KIT)	1
46	01010-81270	BOLT	2
47	01010-81280	BOLT	2
48	01643-31232	WASHER	4
49	07000-13045	O-RING (KIT)	1
50	01010-81065	BOLT	2
51	01010-81075	BOLT	2
52	01643-31032	WASHER	4
53	195-61-51181	TUBE,L.H.	1
53	195-63-51191	TUBE,R.H.	1
54	07000-13045	O-RING (KIT)	1
55	07000-13038	O-RING (KIT)	2
56	01010-81270	BOLT	5
57	01643-31232	WASHER	5
58	07282-03411	CLAMP	1
59	01010-81020	BOLT	2
60	01643-31032	WASHER	2
	707-99-56510	SERVICE KIT	2
	707-98-56620	SERVICE KIT	2
