D375A-3 Bulldozer 707-98-56620 Blade Tilt Sealing Kit ISO9001 Komatsu Cylinder Repair Kit
Price:
Negotiation
MOQ:
Trial order acceptable
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description

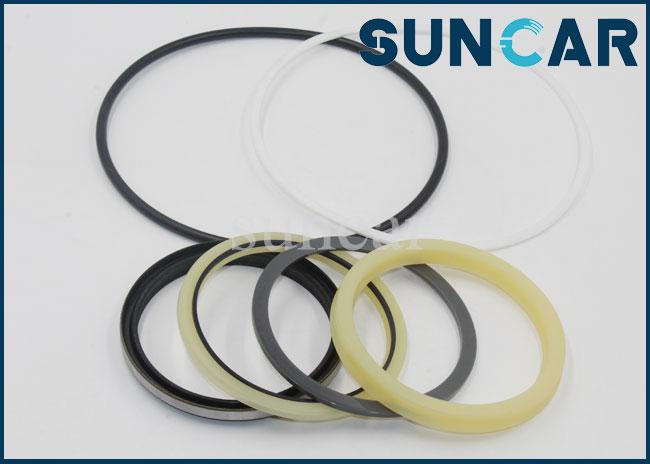

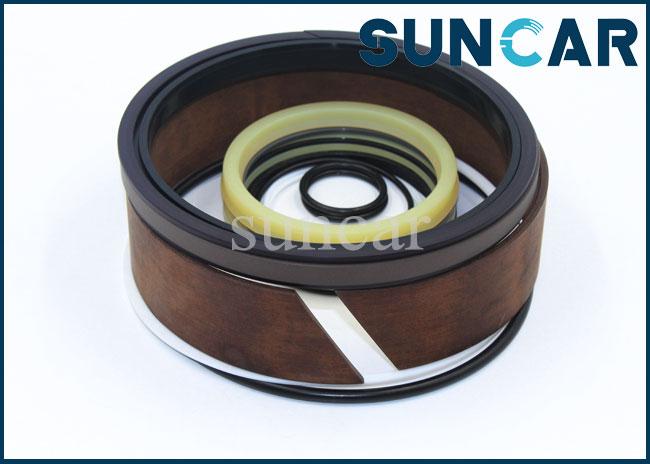

D375A-3 Bulldozer 707-98-56620 Blade Tilt Sealing Kit ISO9001 Komatsu Cylinder Repair Kit
| Product Name | Komatsu Blade Tilt Sealing Kit |
| Model Number | KOMATSU D375A-3, D375A-3A, D375A-3-01 |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Part Number | 707-98-56620 |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| CertifiC.A.Tion | ISO9001 |
| Condition | 100% New |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| AppliC.A.Tion | Komatsu bulldozer blade tilt |
| Preservation Notice | Closed, dry and avoid the sun |
| Quality | Original quality, high performance |
| Uses | Good oil resistance, wear resistance, and corrosion resistance |
| High Light | Hydraulic seal kits, cylinder seal kit |
Order Process:
1. Getting your inquiry (Including: machine model, part name, order quantity, data of items, delivery term)
2. Quoting our competitive price for you
3. Place an order after approving the quotation or products
4. We will send Proforma Invoice or sales confirmation
5. You prepay by T/T or L/C or Western Union through bank
6. We will starting to produce after we get your kind payment
7. Packing
8. Shipping the goods to your(our)forwarder
9. Sending all doc for your custom clearance
10. Time to reorder
Related Parts:
| Pos. | Part No. | Product Name | QYT. |
| G-1 | 707-03-X7170 | CYLINDER GROUP,L.H. (FINAL COATING) | 1 |
| G-1 | 195-63-X1413 | CYLINDER GROUP,L.H. | 1 |
| G-1 | 195-63-X1412 | CYLINDER GROUP,L.H. | 1 |
| G-1 | 195-63-X1411 | CYLINDER GROUP,L.H. | 1 |
| G-2 | 707-03-X7180 | CYLINDER GROUP,R.H. (FINAL COATING) | 1 |
| G-2 | 195-63-X1423 | CYLINDER GROUP,R.H. | 1 |
| G-2 | 195-63-X1422 | CYLINDER GROUP,R.H. | 1 |
| G-2 | 195-63-X1421 | CYLINDER GROUP,R.H. | 1 |
| 195-63-01413 | CYLINDER ASSEMBLY | 1 | |
| 195-63-01410 | CYLINDER ASSEMBLY | 1 | |
| 1 | 195-63-22141 | • CYLINDER | 1 |
| 2 | 195-63-13390 | • BUSHING | 2 |
| 3 | 707-27-15150 | • HEAD,CYLINDER | 1 |
| 3 | 707-27-15020 | • HEAD,CYLINDER | 1 |
| 4 | 707-52-90650 | • BUSHING | 1 |
| 4 | 07177-09035 | • BUSHING | 1 |
| 5 | 707-51-90030 | • PACKING,ROD (KIT) | 1 |
| 5 | 707-51-90211 | • PACKING,ROD (KIT) | 1 |
| 5A | 707-51-90640 | • RING,BUFFER (KIT) | 1 |
| 6 | 195-63-94170 | • SEAL,DUST (KIT) | 1 |
| 7 | 07179-13104 | • RING,SNAP | 1 |
| 8 | 07000-12145 | • O-RING (KIT) | 1 |
| 9 | 07146-02146 | • RING,BACK-UP (KIT) | 1 |
| 10 | 01010-82785 | • BOLT | 4 |
| 11 | 01602-22783 | • WASHER,SPRING | 4 |
| 12 | 195-63-22122 | • ROD,PISTON | 1 |
| 13 | 195-63-22171 | • CAP | 1 |
| 14 | 195-63-22272 | • SHIM, 1.0MM | 10 |
| 15 | 01011-82475 | • BOLT | 4 |
| 16 | 01643-32460 | • WASHER | 4 |
| 17 | 01580-12419 | • NUT | 4 |
| 18 | 707-40-15050 | • RETAINER | 1 |
| 195-63-22480 | • PISTON ASSEMBLY | 1 | |
| 19 | •• PISTON | 1 | |
| 20 | •• VALVE | 2 | |
| 20 | •• VALVE | 2 | |
| 21 | •• SEAT | 8 | |
| 22 | 07000-B2055 | • O-RING (KIT) | 1 |
| 22 | 07000-12055 | • O-RING (KIT) | 1 |
| 23 | 07001-02055 | • RING,BACK-UP (KIT) | 2 |
| 24 | 707-44-15190 | • RING,PISTON (KIT) | 1 |
| 24 | 707-44-15180 | • RING,PISTON (KIT) | 1 |
| 25 | 707-39-15820 | • RING,WEAR (KIT) | 2 |
| 26 | 707-40-15060 | • SPACER | 2 |
| 27 | 01252-61035 | • BOLT | 6 |
| 28 | 195-63-13491 | • HOOK | 1 |
| 29 | 01010-81670 | • BOLT | 1 |
| 30 | 01643-31645 | • WASHER | 1 |
| 195-63-14300 | VALVE ASSEMBLY,QUICK DROP | 2 | |
| 31 | • BODY | 1 | |
| 32 | • VALVE | 1 | |
| 33 | • VALVE | 1 | |
| 34 | 195-63-14180 | • SPRING | 1 |
| 35 | 01642-21216 | • WASHER | 1 |
| 36 | 195-63-14163 | • COLLAR | 1 |
| 37 | 07000-12055 | O-RING (KIT) | 1 |
| 38 | 01011-81615 | BOLT | 2 |
| 39 | 01643-31645 | WASHER | 2 |
| 40 | 195-63-22570 | TUBE,L.H. | 1 |
| 40 | 195-61-43750 | TUBE,L.H. | 1 |
| 40 | 195-63-22670 | TUBE,R.H. | 1 |
| 40 | 195-61-43740 | TUBE,R.H. | 1 |
| 40A | 195-61-51410 | PLATE | 1 |
| 41 | 07000-13035 | O-RING (KIT) | 2 |
| 41 | 07000-13035 | O-RING (KIT) | 1 |
| 42 | 01010-81075 | BOLT | 4 |
| 42 | 01010-51070 | BOLT | 4 |
| 43 | 01643-31032 | WASHER | 4 |
| 44 | 195-63-14130 | ELBOW | 1 |
| 45 | 07000-13048 | O-RING (KIT) | 1 |
| 46 | 01010-81270 | BOLT | 2 |
| 47 | 01010-81280 | BOLT | 2 |
| 48 | 01643-31232 | WASHER | 4 |
| 49 | 07000-13045 | O-RING (KIT) | 1 |
| 50 | 01010-81065 | BOLT | 2 |
| 51 | 01010-81075 | BOLT | 2 |
| 52 | 01643-31032 | WASHER | 4 |
| 53 | 195-61-51181 | TUBE,L.H. | 1 |
| 53 | 195-63-51191 | TUBE,R.H. | 1 |
| 54 | 07000-13045 | O-RING (KIT) | 1 |
| 55 | 07000-13038 | O-RING (KIT) | 2 |
| 56 | 01010-81270 | BOLT | 5 |
| 57 | 01643-31232 | WASHER | 5 |
| 58 | 07282-03411 | CLAMP | 1 |
| 59 | 01010-81020 | BOLT | 2 |
| 60 | 01643-31032 | WASHER | 2 |
| 707-99-56510 | SERVICE KIT | 2 | |
| 707-98-56620 | SERVICE KIT | 2 |
Welcome to contact us, we can provide the high quality and best price!
