Komatsu Sealing Kit 7079984200 Blade Tilt Cylinder Service Kit Fits Bulldozer Models D475A-5
Price:
Negotiation
MOQ:
Trial order acceptable
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
Komatsu Sealing kit 7079984200 Blade Tilt Cylinder Service Kit Fits Bulldozer Models D475A-5
| Product Name | Komatsu Blade Tilt Cylinder Service Kit |
| Model Number | KOMATSU D475A-5, D475A-5A, D475A-5E0 |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Part Number | 707-99-84200 |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| CertifiC.A.Tion | ISO9001 |
| Condition | 100% New |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| AppliC.A.Tion | Komatsu dozer tilt |
| Preservation Notice | Closed, dry and avoid the sun |
| Quality | Original quality, high performance |
| Uses | Good oil resistance, wear resistance, and corrosion resistance |
| C.A.Talog | Cylinder seal kits |
| Rod | 140 mm |
| Bore | 250 mm |
| Cylinder Number | 707-01-0X760, 707-01-0X990 |
Related Parts:
| Pos. | Part No. | Product Name | QYT. |
| 707-01-0X760 | CYLINDER ASSEMBLY,(FINAL COATING) | 2 | |
| 1 | 707-13-25130 | • CYLINDER | 1 |
| 2 | 707-76-90560 | • BUSHING | 1 |
| 3 | 707-27-25280 | • HEAD,CYLINDER | 1 |
| 4 | 707-52-91160 | • BUSHING | 1 |
| 5 | 707-51-14080 | • PACKING,ROD (KIT) | 1 |
| 5A | 707-51-14640 | • RING,BUFFER (KIT) | 1 |
| 6 | 198-63-93170 | • SEAL,DUST (KIT) | 1 |
| 7 | 07179-14160 | • RING,SNAP | 1 |
| 8 | 07000-15240 | • O-RING (KIT) | 1 |
| 9 | 07146-05242 | • RING,BACK-UP (KIT) | 1 |
| 10 | 01011-82710 | • BOLT | 12 |
| 11 | 01643-32780 | • WASHER | 12 |
| 12 | 198-63-52522 | • ROD,PISTON | 1 |
| 13 | 195-71-51254 | • BUSHING | 1 |
| 14 | 195-71-52360 | • RING,SNAP | 2 |
| 15 | 07000-B5110 | • O-RING (KIT) | 1 |
| 16 | 707-35-91680 | • RING,BACK-UP (KIT) | 2 |
| 17 | 707-36-25041 | • PISTON | 1 |
| 18 | 707-44-25190 | • RING,PISTON (KIT) | 1 |
| 19 | 07155-02555 | • RING,WEAR (KIT) | 1 |
| 20 | 707-40-22271 | • SPACER | 2 |
| 21 | 01010-61455 | • BOLT | 6 |
| 22 | 707-88-33030 | • CAP | 2 |
| 23 | 07371-30640 | • FLANGE | 4 |
| 24 | 07372-21035 | • BOLT | 8 |
| 25 | 01643-51032 | • WASHER | 8 |
| 707-99-84200 | SERVICE KIT | 1 |
The role of the seal:
- Each of the dynamic seals confine a hydraulic cylinder, which contains a specific perform that contribute towards the system’s performance:
- Rod seal: Acts a pressure barrier and helps the operational fluid inside of the cylinder to regulate the fluid film extending with the connecting rod’s surface. This is essential in inhibiting the corrosion of the rod and the lubriC.A.Tion of the wiper seal.
- Piston seal: Acts as a barrier to the pressure and prevents the fluid from passing the piston. Necessary for maintaining the position when at rest or for the cylinder’s dominant motion.
- Buffer seal: The rod seal is protected against fluid pressure peaks that can lead to fluctuating the system pressure with the help of buffer seals.
- Wiper seal: It is designed to prevent external contaminants from coming inside the assembly of the cylinder.
- (Rod and piston) functions: Prevents contact of metal-to-metal between parts, leading to keeping the piston and connecting rod accurately centered within the assembly of the cylinder. Helps in improving performance of the piston and rod waterproofing system.

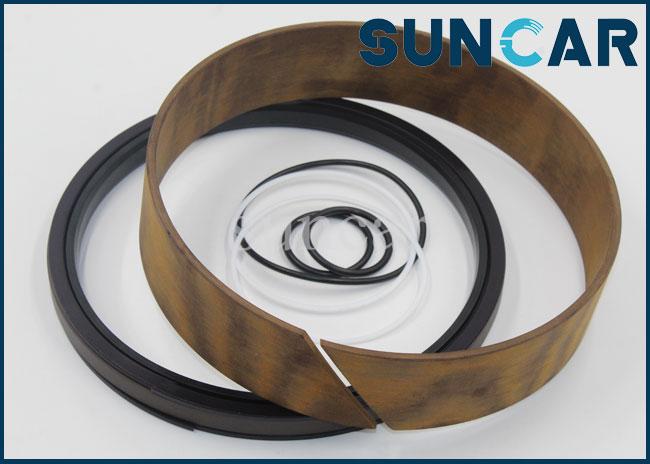

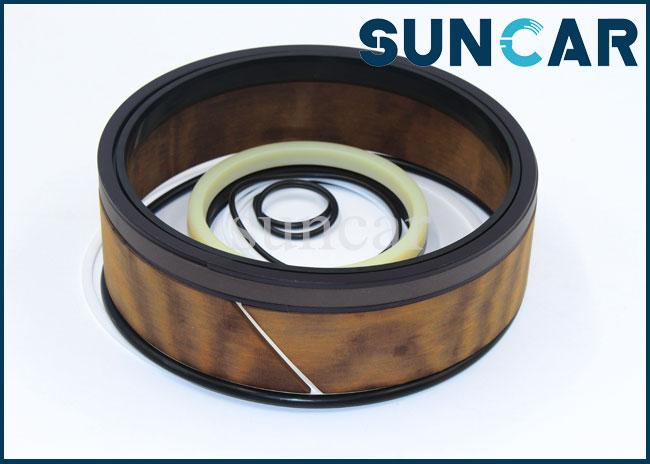

Product Image:
