707-99-44220 Arm Cylinder Sealing Kit Komatsu PC138 PC158 Cylinder Service Kit Replacement
707-99-44220 Arm Cylinder Sealing Kit Komatsu PC138 PC158 Cylinder Service Kit Replacement
| 707-99-44220 Arm Cylinder Sealing Kit Komatsu PC138 PC158 Cylinder Service Kit Replacement | |||
| Model No. | KOMATSU PC100 PC100L PC120 PC128US PC130 PC138US PC150LGP PC158US | Packing | PP bag,Carton,Wooden case or as Required |
| Material | Rubber,PTFE,NBR,PU | MOQ | 1pcs |
| Size | Standard size or custom size | Brand | SUNCAR |
| Hardness | 70degree~95degree | Temperature | -35~220℃ |
| Pressure | 0~0.05Mpa | Feature | Oil-resistant, heat resistant,Durable |
| Color | Black Brown Bule yellow and more | Loading Port | Huangpu port in China |
| AppliC.A.Tion | Excavator seal kit | Payment terms | T/T, Western union, paypal, |
| trade assurance or as require | |||
| CertifiC.A.Tes | ISO9001 | Delivery time | Within 3-5 days |
| Warranty | Unavailable | Shipment | By sea, by air, by express or as required |
Advantages:
1.Excellent performance of sliding ,no crawling effect
2.Good dynamic and static sealing
3.High abrasion,long service life
4.Wide using temperature range,high chemical stability(It depends on the material of O-ring)
5.Simple and convenient installation O-Rings: NBR
Related Parts:
| Pos. | Part No | Qty | Parts name | Comments |
| G1. | 202-63-X9070 | [1] | CYLINDER GROUP | |
| G1. | 202-63-X7721 | [1] | CYLINDER GROUP,ARM | |
| G1. | 202-63-X7720 | [1] | CYLINDER GROUP,ARM | |
| 202-63-07721 | [1] | CYLINDER ASSEMBLY,ARM | ||
| 202-63-07720 | [1] | CYLINDER ASSEMBLY,ARM | ||
| 1. | 202-63-65141 | [1] | CYLINDER,ARM | |
| 1. | 202-63-65140 | [1] | CYLINDER,ARM | |
| 2. | 203-70-66130 | [1] | BUSHING | |
| 3. | 07145-00070 | [2] | SEAL,DUST (KIT) | 0.034 kg. |
| 4. | 707-71-32530 | [1] | COLLAR | |
| 5. | 07000-15105 | [1] | O-RING (KIT) | 0.01 kg. |
| 6. | 707-35-91150 | [2] | RING,BACK-UP (KIT) | |
| 7. | 707-27-11971 | [1] | HEAD,CYLINDER | |
| 8. | 707-52-90500 | [1] | BUSHING | 0.14 kg. |
| 9. | 707-51-75030 | [1] | PACKING,ROD (KIT) | 0.035 kg. |
| 10. | 707-51-75630 | [1] | RING,BUFFER (KIT) | 0.01 kg. |
| 13. | 144-63-94170 | [1] | SEAL,DUST (KIT) | 0.05 kg. |
| 14. | 07179-13089 | [1] | RING,SNAP | 0.019 kg. |
| 15. | 01010-81670 | [12] | BOLT | 0.142 kg. |
| 16. | 01643-51645 | [12] | WASHER | 0.021 kg. |
| 17. | 202-63-65120 | [1] | ROD | |
| 18. | 707-71-60200 | [1] | PLUNGER | 0.24 kg. |
| 19. | 04260-00635 | [11] | BALL | 0.012 kg. |
| 20. | 707-71-91270 | [1] | CAP | 0.001 kg. |
| 23. | 707-71-60870 | [1] | PLUNGER | |
| 24. | 707-36-11661 | [1] | PISTON | |
| 25. | 707-44-11280 | [1] | RING,PISTON (KIT) | 0.045 kg. |
| 26. | 707-39-11510 | [2] | RING,WEAR (KIT) | 0.028 kg. |
| 27. | 707-44-11920 | [2] | RING | 0.051 kg. |
| 28. | 01310-01216 | [1] | SCREW | 0.02 kg. |
| 29. | 07000-15070 | [1] | O-RING (KIT) | 0.029 kg. |
| 30. | 707-35-90360 | [2] | RING,BACK-UP (KIT) | 0.05 kg. |
| 30A. | 707-83-13010 | [1] | VALVE | 0.021 kg. |
| 30B. | 07750-01628 | [1] | SPRING | 0.002 kg. |
| 30C. | 707-87-14070 | [1] | PLUG | 0.07 kg. |
| 30D. | 07002-12034 | [1] | O-RING (KIT) | 0.94 kg. |
| 31 | 202-63-65170 | [1] | TUBE | |
| 32 | 707-87-13570 | [1] | ELBOW | |
| 33 | 07000-13025 | [2] | O-RING (KIT) | 0.001 kg. |
| 34 | 01010-80850 | [4] | BOLT | 0.025 kg. |
| 35 | 01010-80855 | [4] | BOLT | 0.027 kg. |
| 36 | 01643-50823 | [8] | WASHER | 0.01 kg. |
| 37 | 707-88-95360 | [1] | BAND | |
| 38 | 707-88-95510 | [1] | BRACKET | |
| 39 | 01010-81035 | [2] | BOLT | 0.033 kg. |
| 40 | 01643-51032 | [2] | WASHER | 0.17 kg. |
| 41 | 07283-22236 | [1] | CLIP | 0.076 kg. |
| 42 | 01599-01011 | [2] | NUT | 0.016 kg. |
| 43 | 01643-31032 | [2] | WASHER | 0.054 kg. |
| 707-99-44230 | [1] | SERVICE KIT | 0.421 kg. | |
| 707-99-44220 | [1] | SERVICE KIT | 0.413 kg. |

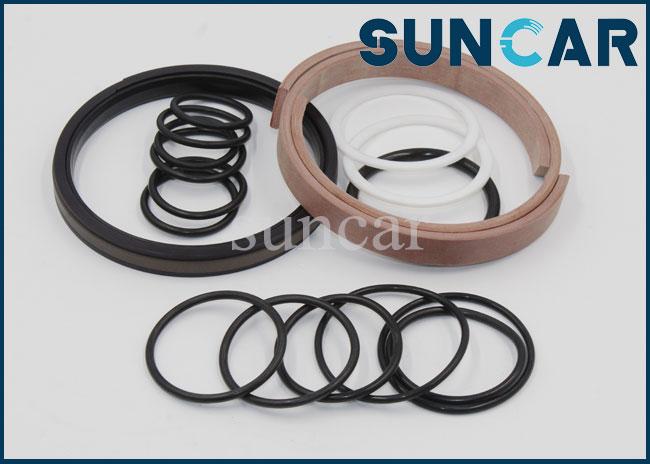

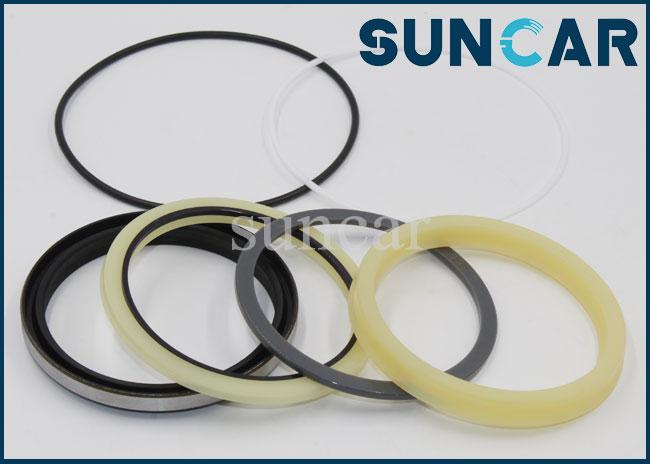

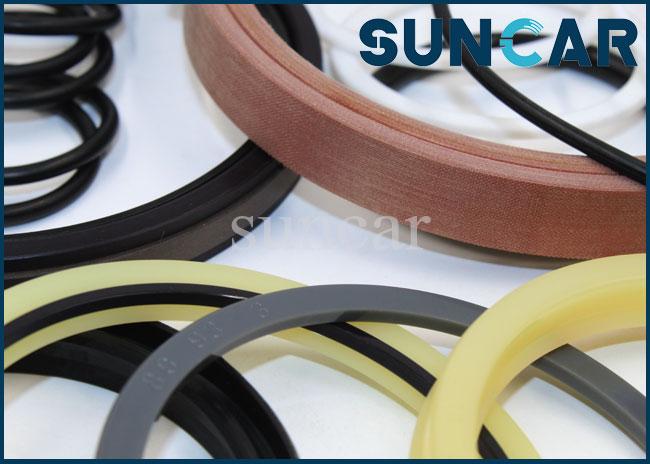

Product Show:
If you unsure whether this is correct for your machine, please contact us. This product is available to ship worldwide
We have professional product design capability. We develop the most competitive products in the market to our customers for choices.
We will provide professional and efficient service, any questions about product service, please contact us directly, we will reply you within 24 hours.
