707-99-56310 Bottom Cylinder Seal Kit PC1000-1 Komatsu Heavy Machinery Oil Seal Repair Kits
707-99-56310 Bottom Cylinder Seal Kit PC1000-1 Komatsu Heavy Machinery Oil Seal Repair Kits
| Product name | 707-99-56310 Bottom Cylinder Seal Kit PC1000-1 Komatsu Heavy Machinery Oil Seal Repair Kits |
| Model Number | KOMATSU PC1000-1 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Feature | Durability, high durability, tensile strength, etc |
| Packing | PP bag inside, carton box outside |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| MOQ | Acceptiable trial order |
| Shipping Mode | By air, by sea, by express (Fedex, UPS, DHL, TNT, etc.) |
| Part No. | 707-99-56310 |
| Place of Origin | Guangdong, China |
| Size | Standard size |
| Delivery time | 3-5 days after payment received(public holiday excluded) |
| Type | Hydraulic Cylinder Seal Kit |
| Brand name | SUNCAR |
| CertifiC.A.Tion | ISO9001 |
| AppliC.A.Tion | Komatsu excavator inner parts |
| Market | Middle East, Europe, North America, South America, Asia, etc |
Advantages Of Oil Seal:
1. Oil seal structure is simple and easy to manufacture. Simple oil seal can be molded in one time, even the most compliC.A.Ted oil seal, the manufacturing process is also oil seal not compliC.A.Ted. The metal skeleton oil seal can also form the required oil seal between metal and rubber only by stamping, gluing, inlaying, molding and other processes.
2. Oil seal has light weight and few consumables. Each type of oil seal is a combination of thin-walled metal parts and rubber parts, and its material consumption is very small, so the weight of each oil seal is very light.
3. The installation position of the oil seal is small, the axial size is small, easy to process, and make the machine compact.
4. Oil seal has good sealing performance and long service life. It has certain adaptability to the vibration of the machine and the eccentricity of the main shaft.
5. Oil seal is easy to disassemble and convenient for inspection.
Related Parts:
| Pos. | Part No | Qty | Parts name |
| G-1. | 21N-63-X3072 | [1] | CYLINDER GROUP,L.H. |
| G-1. | 21N-63-X3071 | [1] | CYLINDER GROUP,L.H. |
| G-2. | 21N-63-X3082 | [1] | CYLINDER GROUP,R.H. |
| G-2. | 21N-63-X3081 | [1] | CYLINDER GROUP,R.H. |
| 21N-63-03072 | [2] | CYLINDER ASSEMBLY | |
| 21N-63-03071 | [2] | CYLINDER ASSEMBLY | |
| 1. | 21N-63-96141 | [1] | CYLINDER |
| 2. | 21N-63-96121 | [1] | ROD |
| 3. | 07145-00090 | [4] | SEAL,DUST (KIT) |
| 4. | 707-76-90040 | [1] | BUSHING |
| 5. | 01010-51860 | [12] | BOLT |
| 6. | 07179-13104 | [1] | RING,SNAP |
| 6. | 707-75-90012 | [1] | RING,SNAP |
| 7. | 195-63-94170 | [1] | SEAL,DUST (KIT) |
| 8. | 707-28-14511 | [1] | HEAD,CYLINDER |
| 9. | 707-51-90130 | [1] | PACKING,ROD (KIT) |
| 10. | 707-35-91440 | [1] | RING,BACK-UP (KIT) |
| 11. | 07000-15135 | [1] | O-RING (KIT) |
| 12. | 707-51-90630 | [1] | RING,BUFFER (KIT) |
| 13. | 07177-09040 | [1] | BUSHING |
| 15. | 07001-05135 | [1] | RING,BACK-UP (KIT) |
| 16. | 707-71-30970 | [1] | COLLAR |
| 17. | 707-71-10950 | [1] | RING |
| 18. | 707-71-50531 | [1] | PLUNGER |
| 18. | 707-71-50530 | [1] | PLUNGER |
| 19. | 707-35-52910 | [2] | RING,BACK-UP (KIT) |
| 20. | 07000-12070 | [1] | O-RING (KIT) |
| 21. | 707-40-14910 | [1] | RETAINER |
| 707-91-01420 | [1] | PISTON SUB ASSEMBLY | |
| 707-91-01410 | [1] | PISTON SUB ASSEMBLY | |
| 27. | 707-44-14180 | [1] | RING,PISTON (KIT) |
| 27. | 707-44-14080 | [1] | RING,PISTON (KIT) |
| 28. | 707-83-11070 | [1] | COLLAR |
| 29. | 707-40-14970 | [2] | SPACER |
| 30. | 707-83-11040 | [1] | ROD,VALVE |
| 31. | 707-37-14030 | [1] | PISTON |
| 32. | 01252-31055 | [6] | BOLT |
| 33. | 207-63-76170 | [1] | BUSHING |
| 34. | 707-39-14820 | [3] | RING,WEAR (KIT) |
| 35 | 21N-63-96170 | [1] | TUBE,L.H. |
| 35 | 21N-63-96270 | [1] | TUBE,R.H. |
| 36 | 21N-62-13750 | [1] | TUBE,L.H. |
| 36 | 21N-62-13740 | [1] | TUBE,R.H. |
| 37 | 209-62-53660 | [2] | BAND |
| 38 | 21N-62-13640 | [2] | BRACKET |
| 39 | 01010-51035 | [4] | BOLT |
| 40 | 01643-31032 | [4] | WASHER |
| 41 | 01010-51020 | [4] | BOLT |
| 43 | 07282-03411 | [2] | CLAMP |
| 44 | 07043-00108 | [2] | PLUG |
| 45 | 07000-13035 | [2] | O-RING (KIT) |
| 46 | 01010-51060 | [8] | BOLT |
| 48 | 07000-13032 | [2] | O-RING (KIT) |
| 49 | 07378-11000 | [2] | HEAD |
| 50 | 07371-31049 | [4] | FLANGE |
| 51 | 07372-21035 | [8] | BOLT |
| 52 | 01643-51032 | [8] | WASHER |
| 707-99-56310 | [1] | SERVICE KIT |

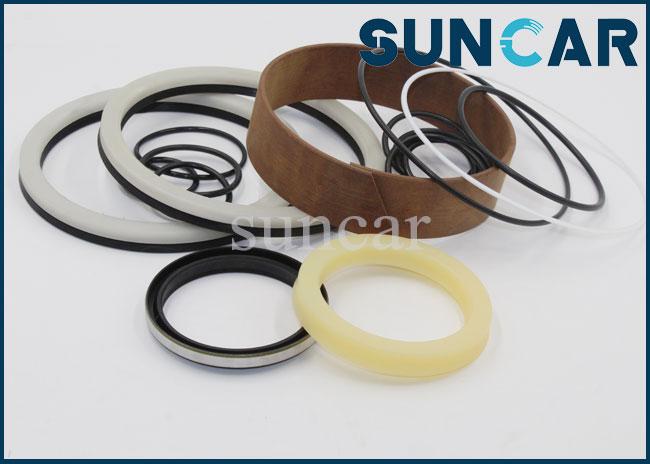

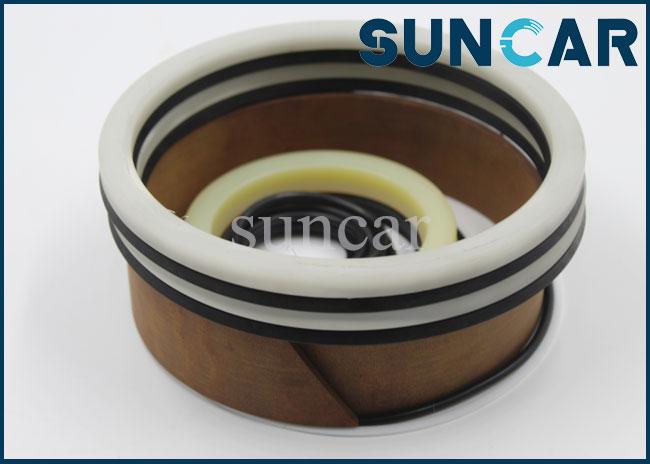

Product Image:
