707-98-11240 Komatsu OEM Parts Blade Lift Cylinder Service Kit PC10MR-1 Excavator Inner Parts
707-98-11240 Komatsu OEM Parts Blade Lift Cylinder Service Kit PC10MR-1 Excavator Inner Parts
| Product Name | 707-98-11240 Komatsu OEM Parts Blade Lift Cylinder Service Kit PC10MR-1 Excavator Inner Parts |
| Seal Kit Part Number | 707-98-11240 |
| Brand | SUNCAR/OEM |
| Condition | 100% Brand New |
| MOQ | Negotiation |
| Material | PU , Rubber , PTFE , NBR , HNBR |
| Hardness | 70-90 Shore A |
| Feature | Resistance to oil, weather, abrasion, solvent etc. |
| Availability: | In Stock |
| Supply Ability | 3000 Piece/Pieces per Month |
| AppliC.A.Tion | Komatsu excavator System |
| Packing Detail | Customer Required |
| Delivery Time | 3-5 days after payment received(public holiday excluded) |
| Payment Policy | Western Union, L/C, T/T, , D/A, D/P |
| After-sales Service | Online support |
| Shipping Policy | By International Express(Fedex,TNT,UPS,DHL)Or Ship |
Hydraulic Seal Installation Requirements:
1. The sealing surface of hydraulic seal gasket and flange should be clean.
2. The outer diameter of the hydraulic seal gasket should be smaller than the flange sealing surface, and the inner diameter should be slightly larger than the pipe inner diameter.
3. The pretension of the gasket shall not exceed the design requirements.
4. Torque wrenches are best used when packing asbestos gaskets.
5. When installing the gasket, tighten the nuts one by one.
6. In case of leakage, step-down treatment must be carried out after installation, and the sealing gasket must be replaced or adjusted.
Related Parts:
| Pos. | Part No | Qty | Parts name | Comments |
| 20A-63-02150 | [1] | CYLINDER ASSEMBLY | ||
| 22J-63-02171 | [1] | CYLINDER ASSEMBLY | ||
| 1. | 20A-63-96240 | [1] | CYLINDER | |
| 22J-63-96141 | [1] | CYLINDER | ||
| 2. | 20A-70-11120 | [1] | BUSHING | 0.107 kg. |
| 3. | 20A-70-12221 | [2] | SEAL,DUST (KIT) | 0.008 kg. |
| 4. | 707-29-60830 | [1] | HEAD,CYLINDER | |
| 707-29-60150 | [1] | HEAD,CYLINDER | ||
| 4A. | 07177-03025 | [1] | BUSHING | 0.039 kg. |
| 5. | 707-51-30210 | [1] | PACKING,ROD (KIT) | 0.004 kg. |
| 6. | 707-56-30510 | [1] | SEAL,DUST (KIT) | 0.015 kg. |
| 7. | 07179-12042 | [1] | RING,SNAP | 0.004 kg. |
| 8. | 07000-12055 | [1] | O-RING (KIT) | 0.03 kg. |
| 9. | 07146-02056 | [1] | RING,BACK-UP (KIT) | |
| 10. | 07000-12060 | [1] | O-RING (KIT) | 0.002 kg. |
| 11. | 22J-63-96120 | [1] | ROD,PISTON | |
| 14. | 707-36-60040 | [1] | PISTON | |
| 15. | 707-44-60070 | [1] | RING,PISTON (KIT) | 0.12 kg. |
| 16. | 707-39-60190 | [1] | RING,WEAR (KIT) | |
| 17. | 01580-02218 | [1] | NUT | 0.072 kg. |
| KIT. | 707-98-11240 | [1] | SERVICE KIT,BLADE LIFT CYLINDER |

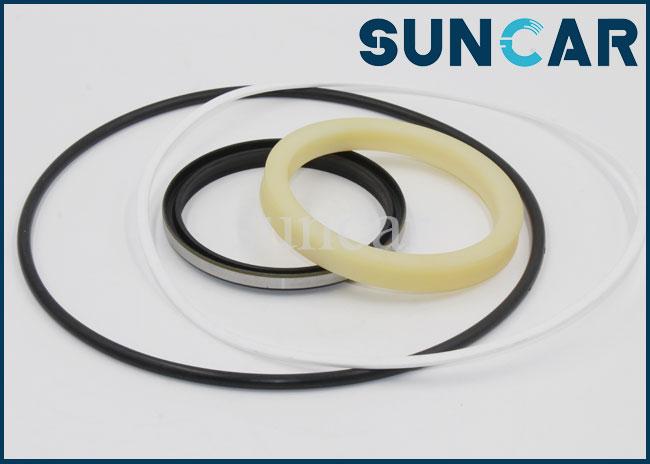

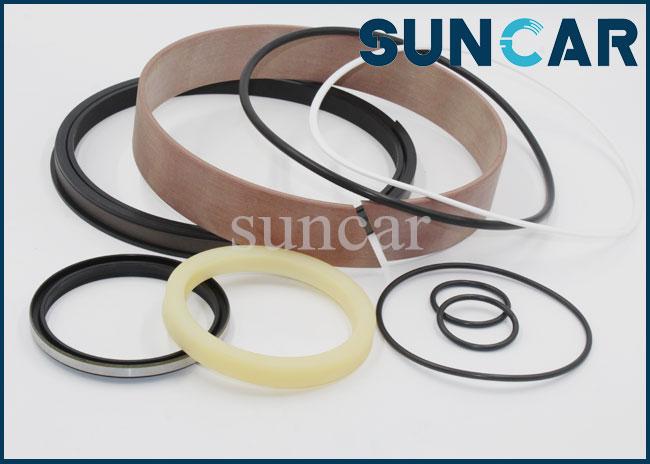

Product Show:
