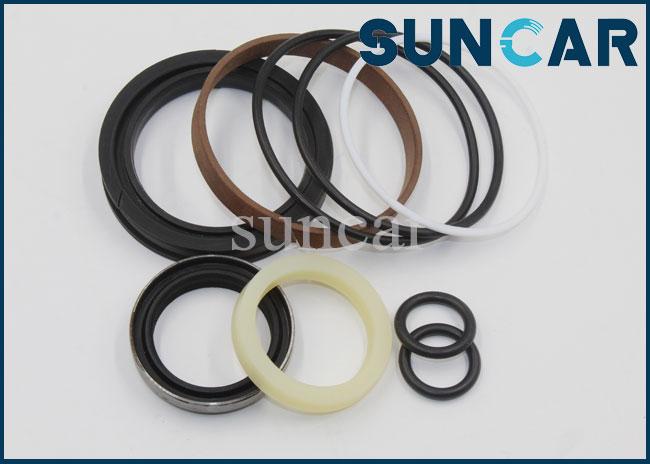

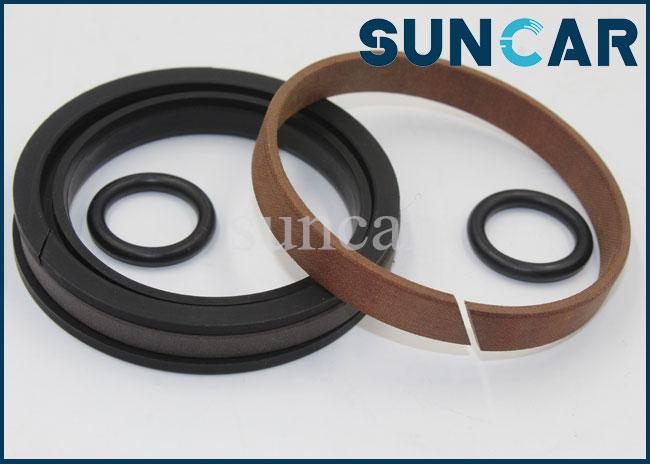

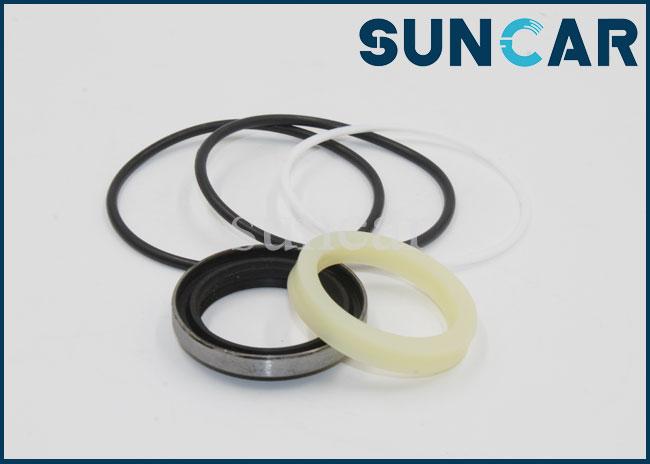

707-98-52140 Tilt Cylinder Komatsu Hydraulic Repair Seal Kit For D61EX-12 Straight Tilt Dozer
707-98-52140 Tilt Cylinder Komatsu Hydraulic Repair Seal Kit For D61EX-12 Straight Tilt Dozer
| Product Name | Komatsu Tilt Cylinder Hydraulic Repair Seal Kit |
| Model Number | KOMATSU D60P-12, D61EX-12, D61PX-12, D63E-12, D65E-12, D65EX-12, D65P-12 |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Part Number | 707-98-52140 |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| CertifiC.A.Tion | ISO9001 |
| Condition | 100% New |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| AppliC.A.Tion | Komatsu bulldozer/ Crawler dozers |
| Preservation Notice | Closed, dry and avoid the sun |
| Quality | Original quality, high performance |
| Feature | High chemical resistance |
| C.A.Talog | Cylinder seal kits |
| Size | Standard |
| Rod | 70 mm |
| Bore | 140 mm |
| Cylinder | 134-63-01041, 14Y-63-01032 |
When You Open And Repair The Cylinder, Please Follow Below Operation:
1. Take off the cylinder from the machine.
2. Remove the head assembly and the rod assembly from the stick cylinder group.
3. If it always happens that the seal kit not perform well soon after it fitted, there maybe problem of the cylinder assembly itself. It is better to check the cylinder assembly whether need to change it.
4. Measure the seal kits before fitting.
5. Install the seals: after fix the cylinder assy, test it first before re-install the stick cylinder group on the machine.
Customer Service:
- If you are interested in our products or have any questions, you can send us an email through the mail system or contact us on social media.
- Normally, the email will be replied within 24 hours; except every Sunday and holiday. When we return to the office, we will reply as soon as possible
- If you do not find the product you need, please send us an email with a picture, and we will be happy to help you.
- Positive feedback is very important to us.
Related Parts:
| Pos. | Part No. | Product Name | QYT. |
| G1 | 134-63-X1042 | CYLINDER GROUP | 1 |
| 134-63-01041 | CYLINDER ASSEMBLY | 1 | |
| 1 | 134-63-52141 | • CYLINDER | 1 |
| 2 | 07143-10505 | • BUSHING | 1 |
| 3 | 07145-00050 | • SEAL,DUST (KIT) | 2 |
| 4 | 707-27-14411 | • HEAD,CYLINDER | 1 |
| 5 | 707-52-10700 | • BUSHING | 1 |
| 6 | 707-51-70211 | • PACKING,ROD (KIT) | 1 |
| 7 | 07000-12135 | • O-RING (KIT) | 1 |
| 8 | 07146-02136 | • RING,BACK-UP (KIT) | 1 |
| 9 | 144-63-95170 | • SEAL,DUST (KIT) | 1 |
| 10 | 07179-12084 | • RING,SNAP | 1 |
| 11 | 01010-81455 | • BOLT | 12 |
| 12 | 01643-31445 | • WASHER | 12 |
| 13 | 134-63-52121 | • ROD,PISTON | 1 |
| 14 | 707-36-14120 | • PISTON | 1 |
| 15 | 707-44-14180 | • RING,PISTON (KIT) | 1 |
| 16 | 07156-01417 | • RING,WEAR (KIT) | 1 |
| 17 | 07165-15252 | • NUT | 1 |
| 18 | 13G-62-63580 | TUBE | 1 |
| 19 | 04434-51512 | CLIP | 1 |
| 20 | 01010-81220 | BOLT | 1 |
| 21 | 01643-31232 | WASHER | 1 |
| K | 707-98-52140 | SERVICE KIT | 1 |
The pictures are for reference only. If you have any questions, please contact us.
