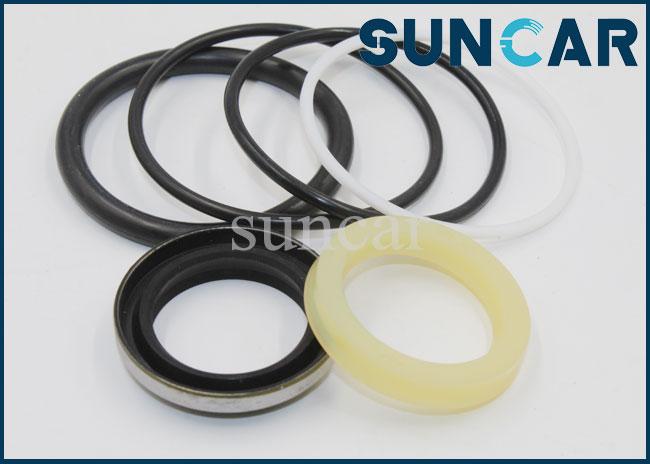

707-99-35170 Angle Cylinder Service Kit Hydraulic Oil Seal Kit For D61EX-12 Komatsu Crawler Dozer
707-99-35170 Angle Cylinder Service Kit Hydraulic Oil Seal Kit For D61EX-12 Komatsu Crawler Dozer
| Product Name | Komatsu Angle Cylinder Service Kit Hydraulic Oil Seal Kit |
| Model Number | KOMATSU D61E-12, D61EX-12, D61PX-12, D68ESS-12 |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Part Number | 707-99-35170 |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| CertifiC.A.Tion | ISO9001 |
| Condition | 100% New |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| AppliC.A.Tion | Komatsu bulldozer/ Crawler dozers |
| Preservation Notice | Closed, dry and avoid the sun |
| Quality | Original quality, high performance |
| Feature | High chemical resistance |
| C.A.Talog | Cylinder seal kits |
| Size | Standard |
| Rod | 60 MM |
| Bore | 100 MM |
| Cylinder No. | 134-63-01071 |
Related Parts:
| Pos. | Part No. | Product Name | QYT. |
| 134-63-01071 | CYLINDER ASSEMBLY,ANGLE | 2 | |
| 134-63-01070 | CYLINDER ASSEMBLY,ANGLE | 2 | |
| 1 | 134-63-55140 | • CYLINDER | 1 |
| 2 | 707-46-04050 | • BUSHING | 1 |
| 3 | 04065-01030 | • RING,SNAP | 2 |
| 4 | 07000-13045 | • O-RING (KIT) | 2 |
| 5 | 707-29-10800 | • HEAD,CYLINDER | 1 |
| 6 | 707-52-90350 | • BUSHING | 1 |
| 7 | 707-51-60030 | • PACKING,ROD (KIT) | 1 |
| 8 | 707-51-60640 | • RING,BUFFER (KIT) | 1 |
| 8 | 707-51-60630 | • RING,BUFFER (KIT) | 1 |
| 9 | 707-56-60540 | • SEAL,DUST (KIT) | 1 |
| 9 | 141-63-93270 | • SEAL,DUST (KIT) | 1 |
| 10 | 07179-12074 | • RING,SNAP | 1 |
| 11 | 07000-12095 | • O-RING (KIT) | 1 |
| 12 | 07001-02095 | • RING,BACK-UP (KIT) | 1 |
| 13 | 07000-12100 | • O-RING (KIT) | 1 |
| 14 | 134-63-55120 | • ROD,PISTON | 1 |
| 15 | 07137-04507 | • BUSHING | 1 |
| 16 | 04065-01030 | • RING,SNAP | 2 |
| 17 | 07000-13045 | • O-RING (KIT) | 2 |
| 18 | 707-36-10350 | • PISTON | 1 |
| 19 | 707-44-10180 | • RING,PISTON (KIT) | 1 |
| 20 | 07156-01012 | • RING,WEAR (KIT) | 1 |
| 21 | 707-67-45010 | • NUT | 1 |
| 21 | 07165-14547 | • NUT | 1 |
| K | 707-99-35170 | SERVICE KIT | 2 |
| K | 707-99-35160 | SERVICE KIT | 2 |
ClassifiC.A.Tion And Function Of Hydraulic Cylinder Seal Kit:
- Hydraulic cylinder seal kits are used to seal the gap between different parts of the hydraulic cylinder. Within the system, there are 2 main types of hydraulic seals:
- Dynamic seals: Designed to seal various parts in relative motion. They can be utilized in high pressure and even when rod and hydraulic cylinder seals are in reciprocal motion between the head and the connecting rod.
- Static seals: Our static seal kit seal parts that are not in relative motion. These are used in various loC.A.Tions as per the construction and look of the hydraulic cylinder. The connection rod and piston is the primary area where these seals are used.
Advantages Of Oil Seal:
1. Oil seal structure is simple and easy to manufacture. Simple oil seal can be molded in one time, even the most compliC.A.Ted oil seal, the manufacturing process is also oil seal not compliC.A.Ted. The metal skeleton oil seal can also form the required oil seal between metal and rubber only by stamping, gluing, inlaying, molding and other processes.
2. Oil seal has light weight and few consumables. Each type of oil seal is a combination of thin-walled metal parts and rubber parts, and its material consumption is very small, so the weight of each oil seal is very light.
3. The installation position of the oil seal is small, the axial size is small, easy to process, and make the machine compact.
4. Oil seal has good sealing performance and long service life. It has certain adaptability to the vibration of the machine and the eccentricity of the main shaft.
5. Oil seal is easy to disassemble and convenient for inspection.
Welcome to contact us, we can provide the high quality and best price!
