Lift Cylinder Seal Kit 707-98-34580 Komatsu Replacement Kits For Power Angle Power Tilt Dozer
Lift Cylinder Seal Kit 707-98-34580 Komatsu Replacement Kits For Power Angle Power Tilt Dozer
| Product Name | Komatsu Lift Cylinder Seal Kit |
| Model Number | KOMATSU D61E-12, D61EX-12, D61PX-12, D68ESS-12 |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Part Number | 707-98-34580 |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| CertifiC.A.Tion | ISO9001 |
| Condition | 100% New |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| AppliC.A.Tion | Komatsu bulldozer/ Crawler dozers |
| Preservation Notice | Closed, dry and avoid the sun |
| Quality | Original quality, high performance |
| Feature | High chemical resistance |
| C.A.Talog | Cylinder seal kits |
| Size | Standard |
| Rod | 55 MM |
| Bore | 110 MM |
| Cylinder No. | 134-63-01012 |
Basic Requirements For Sealing Materials:
The performance of the sealing material is an important factor to ensure effective sealing. The selection of the sealing material is mainly based on the working environment of the sealing element, such as the temperature, the working pressure, the working medium used, and the movement mode. The basic requirements for sealing materials are as follows:
1. Have certain mechanical properties, such as tensile strength, elongation, etc.;
2. Appropriate elasticity and hardness, small compression set;
3. High temperature and low temperature resistance, no decomposition or softening at high temperature, and no hardening at low temperature;
4. It is compatible with the working medium, without swelling, decomposition, hardening, etc.;
5. Good oxygen resistance and aging resistance, durable;
6. Abrasion resistance, no corrosion to metal;
7. Easy to shape and process, low price.
Company Profile:
- Since the beginning of 2008, SUNCAR has put quality as our first duty. Thereupon product development has kept abreast with the world famous manufacturers.
- With an enviable reputation within the sealing industry. SUNCAR products and service that provides are recognized as amongst the very best.
- With over ten years experience in the manufacture of Seals for heavy equipments and the general industries, we are constantly upgrading our range of products and raw materials to enhance its, performance and life span.We believe the vitality of a company's efforts today is a gauge of its success tomorrow.
Related Parts:
| Pos. | Part No. | Product Name | QYT. |
| 134-63-01012 | CYLINDER ASSEMBLY | 2 | |
| 1 | 134-63-12042 | • CYLINDER | 1 |
| 2 | 07143-10606 | • BUSHING | 1 |
| 3 | 07145-00060 | • SEAL,DUST (KIT) | 2 |
| 4 | 707-29-11730 | • HEAD,CYLINDER | 1 |
| 5 | 07177-05530 | • BUSHING | 1 |
| 6 | 707-51-55211 | • PACKING,ROD (KIT) | 1 |
| 7 | 707-56-55510 | • SEAL,DUST (KIT) | 1 |
| 8 | 07179-12069 | • RING,SNAP | 1 |
| 9 | 07000-12105 | • O-RING (KIT) | 1 |
| 10 | 07146-02106 | • RING,BACK-UP (KIT) | 1 |
| 11 | 07000-12110 | • O-RING (KIT) | 1 |
| 12 | 134-63-12020 | • ROD,PISTON | 1 |
| 13 | 07143-10606 | • BUSHING | 1 |
| 14 | 07145-00060 | • SEAL,DUST (KIT) | 2 |
| 15 | 707-36-11040 | • PISTON | 1 |
| 16 | 707-44-11180 | • RING,PISTON (KIT) | 1 |
| 17 | 07156-01112 | • RING,WEAR (KIT) | 1 |
| 18 | 07165-13941 | • NUT | 1 |
| K | 707-98-34580 | SERVICE KIT | 2 |

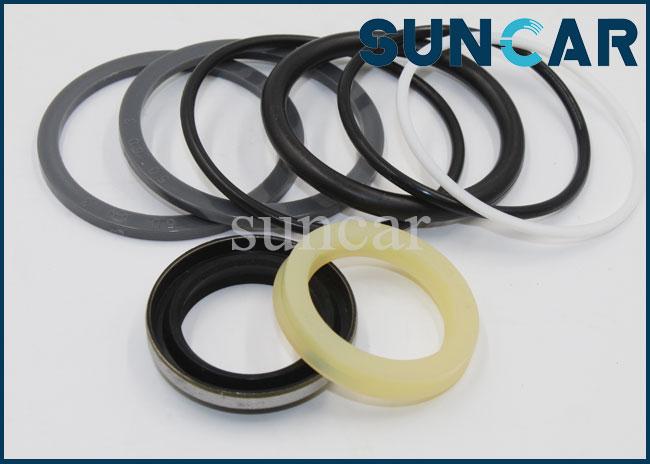

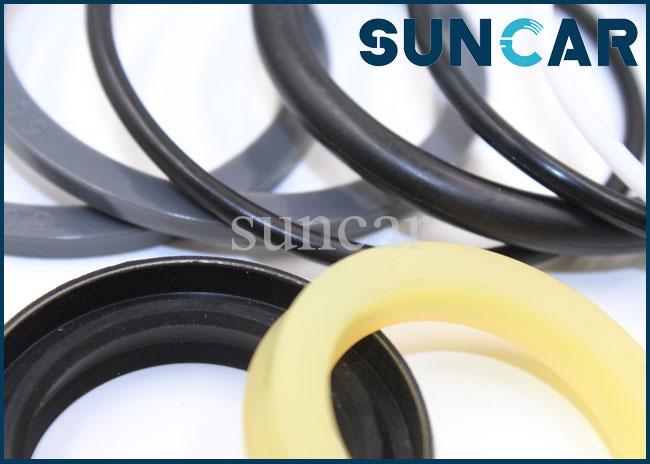

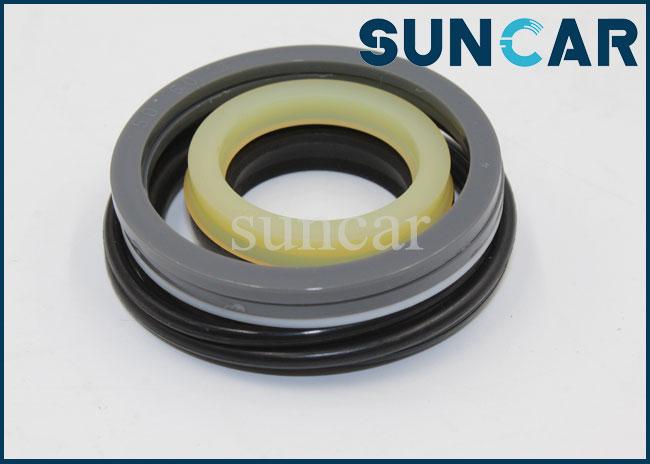

Product Image:
