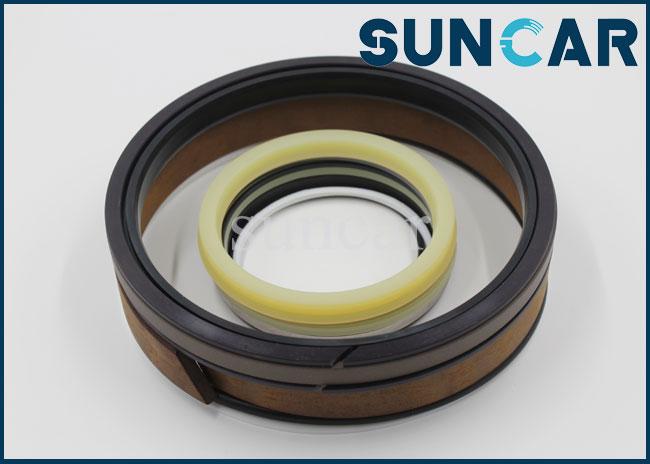

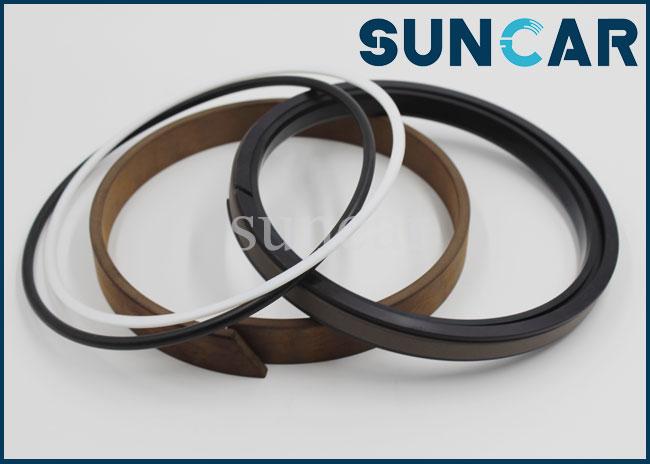

21D-61-13160 Hydraulic Arm Cylinder Seal Kits For Komatsu PC110R-1 Model Inner Replacement Kit
21D-61-13160 Hydraulic Arm Cylinder Seal Kits For Komatsu PC110R-1 Model Inner Replacement Kit
| Products Name: | 21D-61-13160 Hydraulic Arm Cylinder Seal Kits For Komatsu PC110R-1 Model Inner Replacement Kit |
| Material: | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ |
| Type: | Komatsu Excavator Inner Spare Parts |
| Model Number: | EXCAVATORS PC110R PC95 PC95R PW110R PW95 PW95R Komats |
| Color: | Black,White or other |
| Payment Terms: | Western Union, L/C, T/T, , D/A, D/P |
| Supply Ability: | 3000 Piece/Pieces per Month |
| MOQ: | 1 SET(negotiation) |
| Feature: | Abrasion Resistant, Oil Resistance, High Chemical Resistance |
| Brand Name: | Suncar/OEM |
| CertifiC.A.Tion: | ISO9001 |
| Shipping Mode: | By air, by sea ,by express (DHL,Fedex,UPS ,TNT etc.) |
| Size | Standard Size |
| Weight | 0.6kg |
Our Advantage:
- Experienced sealing products supplier.
- Professional design team and sales department for your service.
- All the questions will be dealt in 24 hours.
- Stable quality---coming from good materials.
- Lower price---Not cheapest but the lowest at the same quality.
- Good service---satisfied service before and after sale.
- Your inquiry will be replied in one working day.
Basic Requirements for Sealing Materials:
The performance of the sealing material is an important factor to ensure effective sealing. The selection of the sealing material is mainly based on the working environment of the sealing element, such as the temperature, the working pressure, the working medium used, and the movement mode. The basic requirements for sealing materials are as follows:
1. Have certain mechanical properties, such as tensile strength, elongation, etc.;
2. Appropriate elasticity and hardness, small compression set;
3. High temperature and low temperature resistance, no decomposition or softening at high temperature, and no hardening at low temperature;
4. It is compatible with the working medium, without swelling, decomposition, hardening, etc.;
5. Good oxygen resistance and aging resistance, durable;
6. Abrasion resistance, no corrosion to metal;
7. Easy to shape and process, low price.
Related Parts:
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 21D-61-12300 | [1] | ARM CYLINDER, ASSY. | |
| 2. | 21D-61-12121 | [1] | PISTON ROD | |
| 3. | 21D-09-32140 | [2] | BUSHING | 0.21 kg. |
| 4. | 21D-09-13110 | [6] | SCREW | |
| 5. | 21D-09-73700 | [6] | SPRING WASHER | 0.01 kg. |
| 6. | 21D-61-12130 | [1] | COVER | |
| 7. | 21D-61-12140 | [1] | RING | |
| 8. | 21D-61-12150 | [1] | CYLINDER HEAD | |
| 9. | 21D-61-12160 | [1] | BUSHING | |
| 10. | 21D-61-12171 | [1] | PISTON | |
| 11. | 21D-61-12211 | [1] | NUT | 1.68 kg. |
| 12. | 01252-41025 | [1] | SCREW | 0.035 kg. |
| 13. | 21D-09-86810 | [12] | BALL | 0.012 kg. |
| 14. | 22E-61-11230 | [1] | PIN | |
| 15. | 21D-61-12111 | [1] | CYLINDER | |
| 15. | 21D-61-12201 | [1] | KIT, GASKET | 0.22 kg. |
| 28. | 21D-09-89140 | [2] | FITTING | |
| 29 | 226-62-12310 | [1] | PIPE | |
| 30. | 21D-09-69870 | [1] | O-RING | |
| 31. | 01252-40825 | [8] | SCREW | 0.017 kg. |
| 32. | 21D-09-73690 | [8] | SPRING WASHER | |
| 33. | 226-62-12320 | [1] | PIPE |
