707-98-43520 Blade Trimming Cylinder Replacement Seal Kit D85A-21 D85E-21 Komatsu Repair Kit
707-98-43520 Blade Trimming Cylinder Replacement Seal Kit D85E-21 Komatsu Repair Kit
| Product Name | Komatsu Blade Trimming Cylinder Replacement Seal Kit |
| Model Number | KOMATSU D85A-21, D85E-21, D85A-21B, D85A-21B-ER |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Part Number | 707-98-43520 |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| CertifiC.A.Tion | ISO9001 |
| Condition | 100% New |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| AppliC.A.Tion | Komatsu bulldozer/ Crawler dozers/ mechanics |
| Preservation Notice | Closed, dry and avoid the sun |
| Quality | Original quality, high performance |
| Feature | High chemical resistance, oil resistance |
| C.A.Talog | Cylinder seal kits |
| Size | Standard |
Hydraulic Seal Installation Requirements:
1. The sealing surface of hydraulic seal gasket and flange should be clean.
2. The outer diameter of the hydraulic seal gasket should be smaller than the flange sealing surface, and the inner diameter should be slightly larger than the pipe inner diameter.
3. The pretension of the gasket shall not exceed the design requirements.
4. Torque wrenches are best used when packing asbestos gaskets.
5. When installing the gasket, tighten the nuts one by one.
6. In case of leakage, step-down treatment must be carried out after installation, and the sealing gasket must be replaced or adjusted.
When You Open And Repair The Cylinder, Please Follow Below Operation:
1. Take off the cylinder from the machine.
2. Remove the head assembly and the rod assembly from the stick cylinder group.
3. If it always happens that the seal kit not perform well soon after it fitted, there maybe problem of the cylinder assembly itself. It is better to check the cylinder assembly whether need to change it.
4. Measure the seal kits before fitting.
5. Install the seals: after fix the cylinder assy, test it first before re-install the stick cylinder group on the machine.
Guarantee:
If you find any quality problems when the goods arrive, please contact us. If this is indeed our responsibility, we will resend the same parts for you free of charge in the next batch of orders. We hope to cooperate with you for a long time. With careful consideration, we can help you win a good reputation from consumers in terms of quality, delivery speed, packaging, etc.
Related Parts:
| Pos. | Part No. | Product Name | QYT. |
| 707-00-0E010 | CYLINDER ASSEMBLY | 2 | |
| 1 | 707-11-13680 | • CYLINDER | 1 |
| 2 | 07143-10707 | • BUSHING | 1 |
| 3 | 07145-00075 | • SEAL,DUST (KIT) | 2 |
| 4 | 707-29-13840 | • HEAD,CYLINDER | 1 |
| 5 | 707-52-10700 | • BUSHING | 1 |
| 6 | 707-51-70211 | • PACKING,ROD (KIT) | 1 |
| 7 | 144-63-95170 | • SEAL,DUST (KIT) | 1 |
| 8 | 07179-12084 | • RING,SNAP | 1 |
| 9 | 07000-12125 | • O-RING (KIT) | 1 |
| 10 | 07146-02126 | • RING,BACK-UP (KIT) | 1 |
| 11 | 07000-12130 | • O-RING (KIT) | 1 |
| 12 | 721-58-70140 | • ROD,PISTON | 1 |
| 13 | 07143-10707 | • BUSHING | 1 |
| 14 | 07145-00075 | • SEAL,DUST (KIT) | 2 |
| 15 | 707-36-13240 | • PISTON | 1 |
| 16 | 707-44-13180 | • RING,PISTON (KIT) | 1 |
| 17 | 07156-01315 | • RING,WEAR (KIT) | 1 |
| 18 | 707-67-52020 | • NUT | 1 |
| 707-98-43520 | SERVICE KIT | 1 |

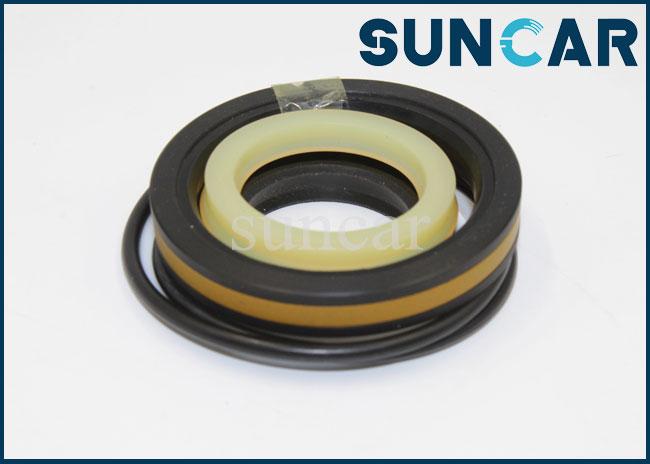

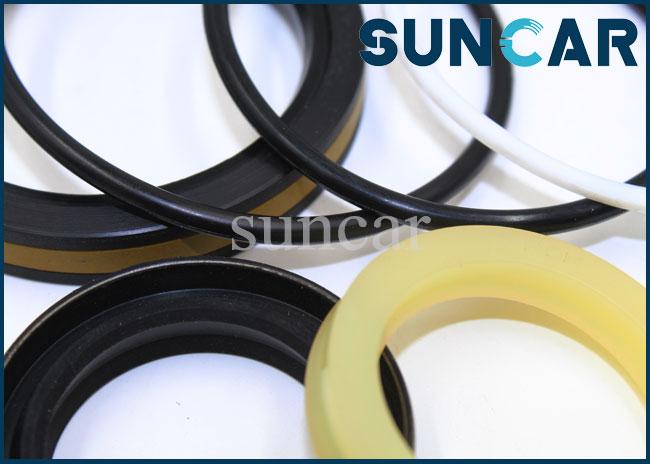

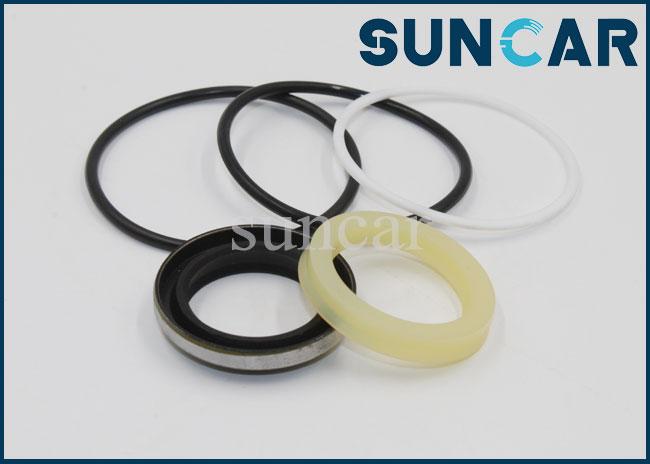

Product Show:
