707-99-27310 Hydraulic Komatsu Oil Seal Kit Crawler Dozers Seal Fits Cylinder 60MM Rod 85MM Bore
707-99-27310 Hydraulic Komatsu Oil Seal Kit Crawler Dozers Seal Fits Cylinder 60MM Rod 85MM Bore
| Product Name | Komatsu Hydraulic Oil Seal Kit |
| Model Number | KOMATSU D65EX-16, D65PX-18, D65WX-16, D65EX-17 |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Part Number | 707-99-27310 |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| CertifiC.A.Tion | ISO9001 |
| Condition | 100% New |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| AppliC.A.Tion | Komatsu bulldozer/ Crawler dozers |
| Preservation Notice | Closed, dry and avoid the sun |
| Quality | Original quality, high performance |
| Feature | High chemical resistance, oil resistance |
| C.A.Talog | Cylinder seal kits |
| Size | Standard |
| Rod | 65 MM |
| Bore | 85 MM |
| Cylinder No. | 1707-E2-00050, 707-E2-00060 |
How To Choose A Sealing Kit:
(1) Seals commonly used self-sealing compression seals mainly include O-rings, round sealing rings and rectangular rings. They have the advantages of simple structure, easy manufacture and low cost. Therefore, they are widely used as dynamic seals in hydraulic transmission systems. Components and static seal components. They are usually installed in the sealing groove, and usually produce 15-25% radial compression deformation and high initial contact stress on the sealing surface, so as to prevent the leakage of non-pressure liquid.
(2) Key points of sealing kit selection:
- Pay attention to sealing
- Movement direction
- Temperature class
- Pressure rating
- Dimensions
When You Open And Repair The Cylinder, Please Follow Below Operation:
1. Take off the cylinder from the machine.
2. Remove the head assembly and the rod assembly from the stick cylinder group.
3. If it always happens that the seal kit not perform well soon after it fitted, there maybe problem of the cylinder assembly itself. It is better to check the cylinder assembly whether need to change it.
4. Measure the seal kits before fitting.
5. Install the seals: after fix the cylinder assy, test it first before re-install the stick cylinder group on the machine.
Related Parts:
| Pos. | Part No. | Product Name | QYT. |
| K11 | 707-99-27310 | Seal Kit, Hydraulic Cylinder | |
| 02896-61015 | • O-ring | 3 | |
| 07000-12085 | • O-ring | 1 | |
| 07000-B2080 | • O-ring | 1 | |
| 07145-00055 | • Seal, Dust | 2 | |
| 707-35-10810 | • Ring, Back-up | 1 | |
| 707-39-85120 | • Ring, Wear | 2 | |
| 707-44-85150 | • Ring, Piston | 1 | |
| 707-51-60650 | • Ring, Buffer | 1 | |
| 707-51-60860 | • Packing, Rod | 1 | |
| 707-56-60740 | • Seal, Dust | 1 |

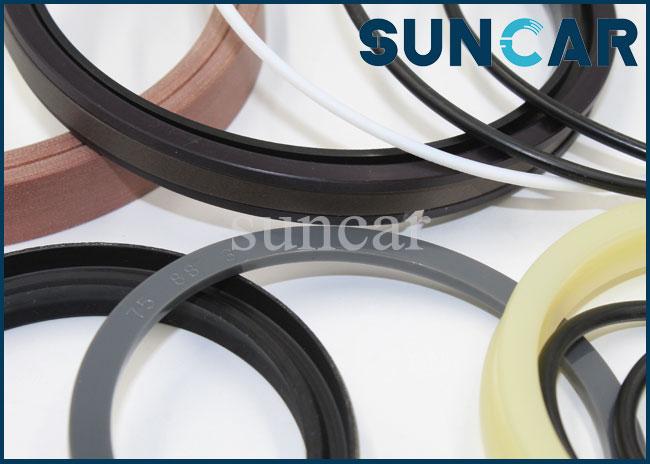

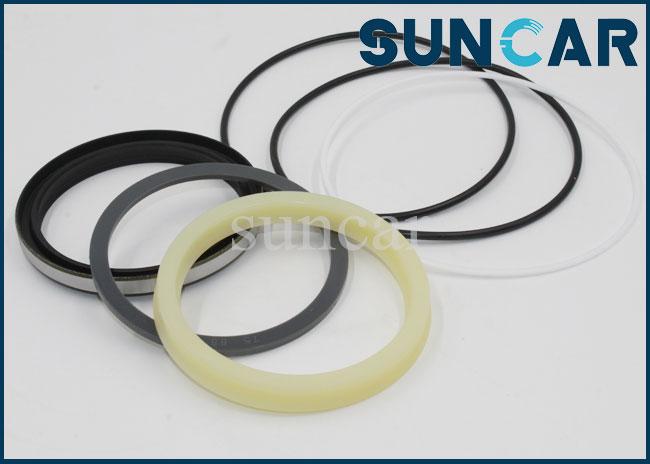

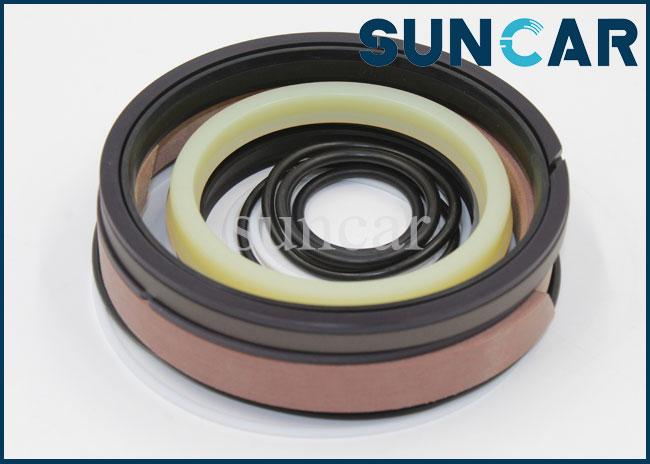

Product Show:
