D65WX-16 Angle Cylinder Sealing Kit 707-99-36680 Dozer Komatsu Cylinder Repair Kit
D65WX-16 Angle Cylinder Sealing Kit 707-99-36680 Dozer Komatsu Cylinder Repair Kit

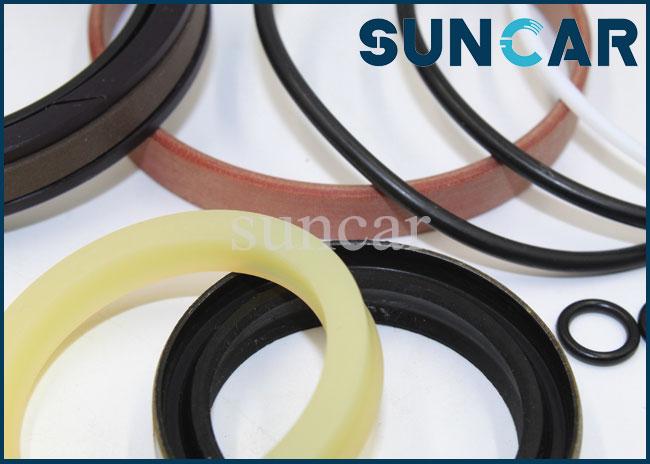

| Product Name | Komatsu Angle Cylinder Sealing Kit |
| Model Number | KOMATSU D65EX-16, D65PX-16, D65WX-16 |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Part Number | 707-99-36680 |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| CertifiC.A.Tion | ISO9001 |
| Condition | 100% New |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| AppliC.A.Tion | Komatsu bulldozer/ Crawler dozers |
| Preservation Notice | Closed, dry and avoid the sun |
| Quality | Original quality, high performance |
| Feature | High chemical resistance, oil resistance |
| C.A.Talog | Cylinder seal kits |
| Size | Standard |
| Rod | 65 MM |
| Bore | 110 MM |
Our Product Range:
* Hydraulic pump seal kit
* Control valve seal kit
* O ring kit box
* Gear pump seal kit
* Travel motor seal kit
* Swing motor seal kit
* Pilot valve seal kit/PPC seal
* Adjuster seal kit
* Center joint seal kit
* Boom cylinder seal kit
* Arm cylinder seal kit
* Bucket cylinder seal kit
* Breaker hammer seal kit
When You Open And Repair The Cylinder, Please Follow Below Operation:
1. Take off the cylinder from the machine.
2. Remove the head assembly and the rod assembly from the stick cylinder group.
3. If it always happens that the seal kit not perform well soon after it fitted, there maybe problem of the cylinder assembly itself. It is better to check the cylinder assembly whether need to change it.
4. Measure the seal kits before fitting.
5. Install the seals: after fix the cylinder assy, test it first before re-install the stick cylinder group on the machine.
Seal ClassifiC.A.Tion:
According to whether the seal is in contact with its relative moving parts, it can be divided into contact seal and non-contact seal; according to the seal and contact position, it can be divided into circumferential seal and end face seal. End face seal is also called mechanical seal. The centrifugal seal and spiral seal in the dynamic seal are sealed by powering the medium when the machine is running, so they are sometimes called dynamic seals.
Related Parts:
| Pos. | Part Number | Product Name | QTY. |
| K20 | 707-99-36680 | Service Kit, Angle Cylinder | |
| 02896-11012 | • O-ring | 4 | |
| 07000-12105 | • O-ring | 1 | |
| 07000-12110 | • O-ring | 1 | |
| 07000-13050 | • O-ring | 4 | |
| 07146-02106 | • Ring, Back-up | 1 | |
| 07156-01112 | • Ring, Wear | 2 | |
| 707-44-11150 | • Ring, Piston | 1 | |
| 707-51-65030 | • Packing, Rod | 1 | |
| 707-51-65650 | • Ring, Buffer | 1 | |
| 707-56-65740 | • Seal, Dust | 1 |
Welcome to contact us, we can provide the high quality and best price!
