Bucket Cylinder Seal Repir Kit AH173451 For John Deere 2154D 200CLC 225CLC Models
Price:
Negotiation
MOQ:
Trial order acceptable
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
Bucket Cylinder Seal Repir Kit AH173451 For John Deere 2154D 200CLC 225CLC Models
| Product Name | John Deere Bucket Cylinder Seal Repir Kit |
| Models | John Deere 2154D, 200CLC, 225CLC, 2454D, 2554, 2954D, 3754D, 2054 |
| Part Number | AH173451 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| Size | OEM standard size |
| Position | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Rod | 80.00 MM |
| Bore | 115.00 MM |
| Feature | Sealing performance/ wear resistance |
| Cylinder Numbers | DH900365J |
Related Parts:
| Pos. | Part No | Qty | Parts name |
| 1 | 4352398 | [2] | Bushing |
| 2 | AH173450 | [1] | Rod |
| 3 | H206941 | [1] | Hydr. Cylinder Rod Guide |
| 4 | AT264314 | [1] | Wear Ring |
| 5 | AT132690 | [1] | Snap Ring |
| 6 | H179700 | [1] | Seal |
| 7 | AT264357 | [1] | Seal |
| 8 | AT264358 | [1] | Back-Up Ring |
| 9 | H157235 | [1] | Seal |
| 10 | AT264320 | [1] | O-Ring |
| 11 | TH109353 | [1] | Back-Up Ring |
| 12 | 19M8931 | [10] | Screw |
| 13 | H178712 | [1] | Ring |
| 14 | H161605 | [1] | Piston |
| 15 | TH105767 | [1] | Ring |
| 16 | H163431 | [2] | Back-Up Ring |
| 17 | H163432 | [2] | Scraper Ring |
| 18 | TH109357 | [2] | Ring |
| 19 | T108030 | [1] | Shim |
| 20 | H178713 | [1] | Nut |
| 21 | 22M7009 | [1] | Set Screw |
| 22 | T13624 | [1] | Ball |
| 23 | TH100074 | [2] | LubriC.A.Tion Fitting |
| 24 | TH104472 | [2] | Seal |
| 25 | 4352400 | [2] | Bushing |
| 26 | AH140158 | [2] | Seal |
| 27 | 8086114J | [2] | Oil Line |
| 28 | AH233839 | [1] | Oil Line |
| 29 | AT264360 | [2] | O-Ring |
| 30 | 19M8337 | [4] | Screw |
| 31 | AH233840 | [1] | Band |
| 32 | H178717J | [1] | Clamp |
| 33 | 19M7550 | [2] | Cap Screw |
| 34 | 12M7066 | [2] | Lock Washer |
| 35 | H238070 | [1] | Clamp |
| 36 | 19M7362 | [1] | Cap Screw |
| 37 | 12M7058 | [1] | Lock Washer |
| 38 | AH173449 | [1] | Hydraulic Cylinder Barrel |
| 39 | AH173451 | [1] | Hydraulic Cylinder Kit |
| 40 | ........ | [1] | Cylinder |
| 41 | 19M8339 | [4] | Screw |
The Role Of The Seal:
- Each of the dynamic seals confine a hydraulic cylinder, which contains a specific perform that contribute towards the system’s performance:
- Rod seal: Acts a pressure barrier and helps the operational fluid inside of the cylinder to regulate the fluid film extending with the connecting rod’s surface. This is essential in inhibiting the corrosion of the rod and the lubriC.A.Tion of the wiper seal.
- Piston seal: Acts as a barrier to the pressure and prevents the fluid from passing the piston. Necessary for maintaining the position when at rest or for the cylinder’s dominant motion.
- Buffer seal: The rod seal is protected against fluid pressure peaks that can lead to fluctuating the system pressure with the help of buffer seals.
- Wiper seal: It is designed to prevent external contaminants from coming inside the assembly of the cylinder.
- (Rod and piston) functions: Prevents contact of metal-to-metal between parts, leading to keeping the piston and connecting rod accurately centered within the assembly of the cylinder. Helps in improving performance of the piston and rod waterproofing system.

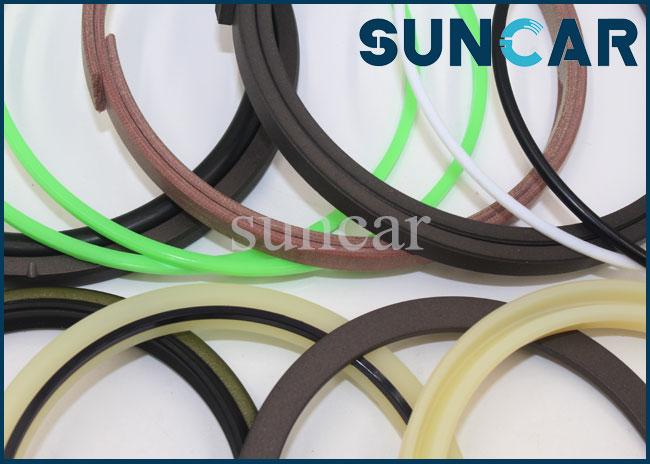

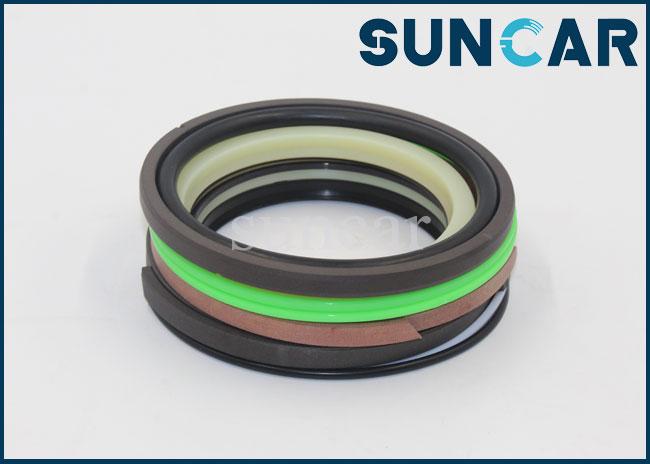

Product Show:
