Deere Parts 180GLC 190GW FYA00012907 Bucket Seal Kit Hydraulic Cylinder Repair Kits
Price:
Negotiation
MOQ:
Trial order acceptable
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description

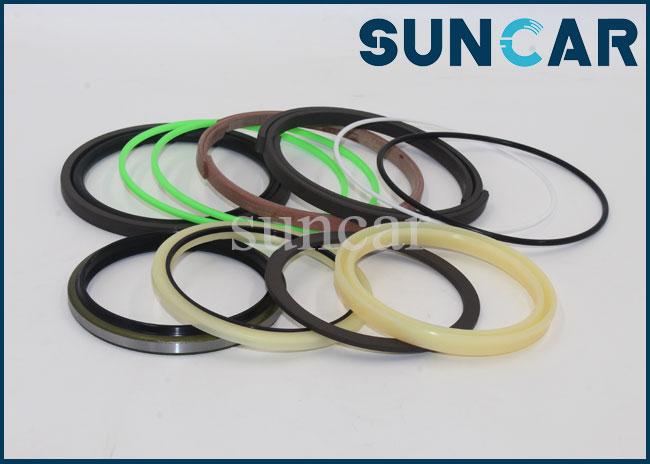

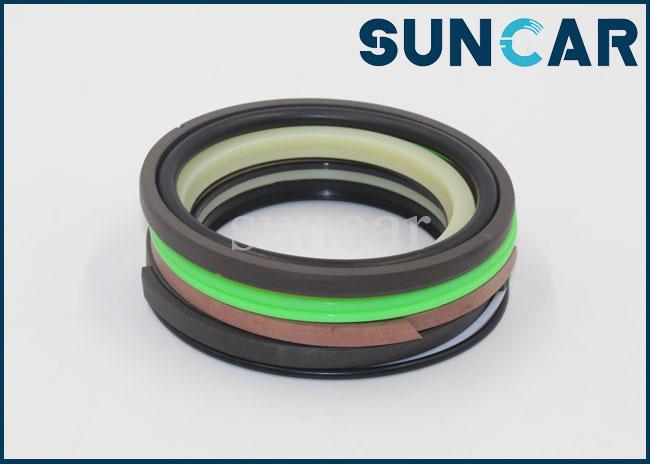

Deere Parts 180GLC 190GW FYA00012907 Bucket Seal Kit Hydraulic Cylinder Repair Kits
| Product Name | John Deere Bucket Seal Kit Hydraulic Cylinder Repair Kits |
| Models | John Deere 180GLC, 190GW |
| Part Number | FYA00012907 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| Size | OEM standard size |
| Position | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Rod | 75 MM |
| Bore | 105 MM |
| Feature | Sealing performance/ wear resistance |
| Cylinder Numbers | 9323708G |
| AppliC.A.Tion | Bucket |
Types Of Seals:
- Piston Seal: SPGW, SPGW2, SPGWV, SPGO, SPGA, OK, GKS/YS, KDAS/DAS, SPG, SPGM, SPGN, SPGC, OHM, CPI, CPH, ODI, OSI, OUIS, OUHR, OKH, OUY.
- Piston Rod Seal: IDI, ISI, IUIS, IUH, PTB, H605, SPNO, SPN, SPNS, SPNC, U-CUP.
- Piston And Piston Rod Seal: UPI, USI, UPH, USH, V99F, V96H, UN, UHS, UNS.
- Buffer Seal: HBY, HBTS, HBTY, URE.
- Dust seal for ReciproC.A.Ting Motion: DKI, DWI, DWIR, DKBI, DKBI3, DKBZ, DKH, DKB, GA, DSI, LBI, LBH, LBHK, DSPB, DHS, FA, LPI, A1, GHP, DKC.
- Dust Seal for Shake: DLI, DLI2, VAY.
- Oil Seal: SC, SB, TC, TB, TCK, VC, VB, KC, KB, TCZ, TCV, TCN, TC4, TB4, TCJ, SA1J, VAJ, KA3J, DC, DB, OC, etc.
Seal ClassifiC.A.Tion:
- Static seal: There are three main C.A.Tegories: gasket seal, sealant seal and direct contact seal. According to the working pressure, static sealing can be divided into medium and low pressure static sealing and high pressure static sealing. Medium and low pressure static seals usually use softer and wider gasket seals, while high-pressure static seals use harder metal gaskets with a narrow contact width.
- Dynamic seal: It can be divided into two basic types: rotary seal and reciproC.A.Ting seal.
Related Parts:
| Pos. | Part No | Qty | Parts name |
| 0 | 9323708G | [1] | Cylinder |
| 1 | FXB00002083 | [1] | Cylinder |
| 1A. | ........ | [1] | Tube |
| 1B. | FXB00002084 | [2] | Bushing |
| 1C. | FXB00002106 | [2] | Ring |
| 3 | FXB00002085 | [1] | Rod |
| 3A. | ........ | [1] | Rod |
| 3B. | FXB00002046 | [2] | Bushing |
| 3C. | FXB00002041 | [2] | Seal |
| 5 | FXB00002086 | [1] | Cylinder Head |
| 6 | FXB00002087 | [1] | Bushing |
| 7 | FXB00002088 | [1] | Snap Ring |
| 8 | FXB00002089 | [1] | Seal |
| 9 | FXB00002090 | [1] | Packing |
| 10 | FXB00002091 | [1] | Back-Up Ring |
| 11 | FXB00002092 | [1] | Seal |
| 12 | AT264319 | [1] | O-Ring |
| 13 | FXB00002093 | [1] | Back-Up Ring |
| 14 | AT264223 | [1] | O-Ring |
| 15 | FXB00002094 | [1] | Piston |
| 16 | FXB00002095 | [1] | Seal |
| 17 | FXB00002096 | [2] | Wear Ring |
| 18 | FXB00002097 | [2] | Wear Ring |
| 19 | FXB00002098 | [1] | O-Ring |
| 20 | FXB00002099 | [2] | Back-Up Ring |
| 21 | FXB00002100 | [1] | Nut |
| 22 | FXB00000632 | [2] | Set Screw |
| 23 | FXB00002101 | [12] | Bolt |
| 24 | FXB00002102 | [1] | Band |
| 25 | FXB00002103 | [1] | Band |
| 26 | FXB00002033 | [2] | Spring Washer |
| 27 | FXB00002034 | [2] | Bolt |
| 28 | FXB00002104 | [1] | Pipe |
| 29 | FXB00002035 | [2] | O-Ring |
| 30 | FXB00002033 | [8] | Spring Washer |
| 31 | FXB00002038 | [4] | Bolt |
| 32 | FXB00002039 | [1] | Clamp |
| 33 | 12H301 | [1] | Lock Washer |
| 34 | FXB00002076 | [1] | Bolt |
| 35 | FXB00002105 | [1] | Pipe |
| 36 | FXB00002038 | [4] | Bolt |
| 39 | ........ | [2] | LubriC.A.Tion Fitting |
| 50 | FXB00002107 | [1] | Cylinder Head |
| 60 | FXB00002108 | [1] | Hydraulic Cylinder Rod |
| 70 | FYA00012907 | [1] | Seal Kit |
Welcome OEM/ODM order. Please click "ask a question", or call us if you have a parts need that you do not see listed here.
