200CLC John Deere AH173444 Arm Cylinder Seal Kit ISO9001 Heavy Equipment Parts
Price:
Negotiation
MOQ:
Trial order acceptable
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description

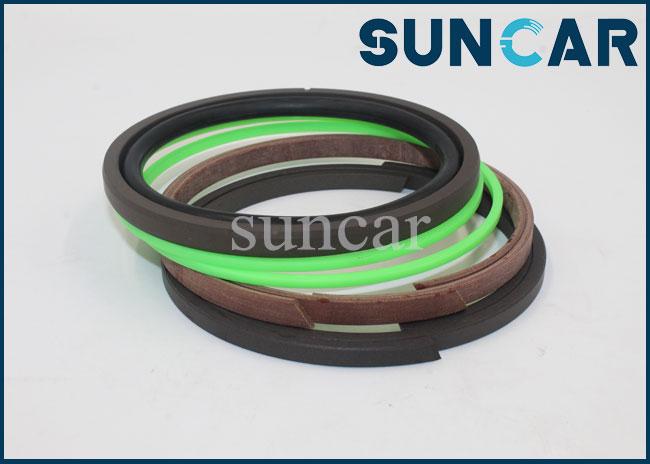

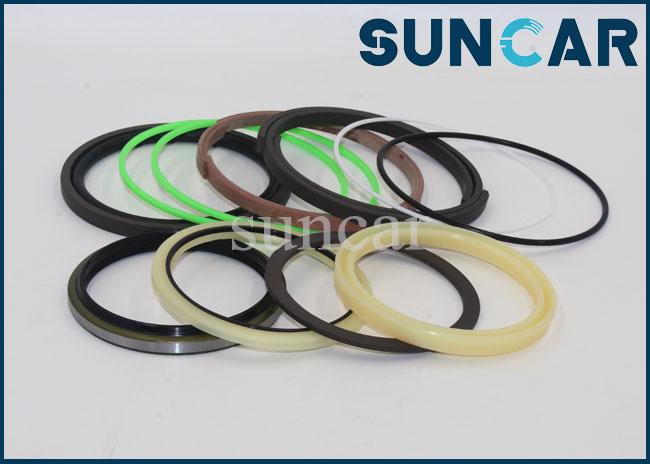

200CLC John Deere AH173444 Arm Cylinder Seal Kit ISO9001 Heavy Equipment Parts
| Product Name | John Deere Arm Cylinder Seal Kit |
| Models | John Deere 909MH, 953M, 959K, 903KH, 200CLC, 803MH, 853M, 909KH, 859M, 959M, 859MH, 853MH, 953K, 2054, 903MH |
| Part Number | AH173444 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| Size | OEM standard size |
| Position | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Rod | 95 MM |
| Bore | 135 MM |
| Feature | Sealing performance/ wear resistance |
| Cylinder Numbers | AHC14777 |
| AppliC.A.Tion | Arm |
The Role Of The Seal:
- Each of the dynamic seals confine a hydraulic cylinder, which contains a specific perform that contribute towards the system’s performance:
- Rod seal: Acts a pressure barrier and helps the operational fluid inside of the cylinder to regulate the fluid film extending with the connecting rod’s surface. This is essential in inhibiting the corrosion of the rod and the lubriC.A.Tion of the wiper seal.
- Piston seal: Acts as a barrier to the pressure and prevents the fluid from passing the piston. Necessary for maintaining the position when at rest or for the cylinder’s dominant motion.
- Buffer seal: The rod seal is protected against fluid pressure peaks that can lead to fluctuating the system pressure with the help of buffer seals.
- Wiper seal: It is designed to prevent external contaminants from coming inside the assembly of the cylinder.
- (Rod and piston) functions: Prevents contact of metal-to-metal between parts, leading to keeping the piston and connecting rod accurately centered within the assembly of the cylinder. Helps in improving performance of the piston and rod waterproofing system.
Related Parts:
| Pos. | Part No | Qty | Parts name |
| 1 | 4352399 | [2] | Bushing |
| 2 | AH173443 | [1] | Rod |
| 2 | PG201386 | [1] | Hyd Cylinder Rod Reman |
| 3 | H178686 | [1] | Hydr. Cylinder Rod Guide |
| 4 | T108050 | [1] | Wear Ring |
| 5 | TH102766 | [1] | Snap Ring |
| 6 | H179694 | [1] | Seal |
| 7 | H227910 | [1] | Seal |
| 8 | H155310 | [1] | Back-Up Ring |
| 9 | H155311 | [1] | Seal |
| 10 | H178690 | [1] | O-Ring |
| 11 | H178691 | [1] | Back-Up Ring |
| 12 | 19M8913 | [1] | Screw |
| 13 | H155319 | [1] | Ring |
| 14 | H155320 | [1] | Seal |
| 15 | H178697 | [1] | Piston |
| 16 | AH173446 | [1] | Ring |
| 17 | H178694 | [2] | Back-Up Ring |
| 18 | H178695 | [2] | Back-Up Ring |
| 19 | H178696 | [2] | Back-Up Ring |
| 20 | T108063 | [1] | Shim |
| 21 | H178698 | [1] | Nut |
| 22 | 22M7009 | [1] | Set Screw |
| 23 | T13624 | [1] | Ball |
| 24 | H155321 | [1] | Spacer |
| 25 | H155322 | [1] | Seal |
| 26 | H155329 | [2] | Ring |
| 27 | H155330 | [1] | Piston Ring |
| 28 | 12M7058 | [1] | Lock Washer |
| 29 | TH102446 | [4] | Seal |
| 30 | H155333 | [1] | Shoulder Fitting |
| 31 | AH233837 | [1] | Oil Line |
| 32 | AT264348 | [1] | O-Ring |
| 33 | 19M9012 | [4] | Screw |
| 34 | AH233838 | [1] | Band |
| 35 | H178703 | [1] | Band |
| 36 | 19M7550 | [2] | Cap Screw |
| 37 | 12M7066 | [2] | Lock Washer |
| 38 | 0309219J | [1] | Half Clamp |
| 39 | 19M8348 | [1] | Cap Screw |
| 40 | 4352399 | [2] | Bushing |
| 41 | H179695 | [1] | LubriC.A.Tion Fitting |
| 42 | AH173442 | [1] | Hydraulic Cylinder Barrel |
| 42 | PG201384 | [1] | Hyd Cylinder Barrel Reman |
| 43 | AH173444 | [1] | Hydraulic Cylinder Kit |
| 44 | 9169805Y | [1] | Cylinder |
Some Part Number Of John Deere Cyliner Seal Kit:
| AT217906 | AR96273 | AH173457 | AT192075 |
| AT181246 | AT196467 | AH173444 | AT196478 |
| AT264429 | AH158827 | AT260416 | AT45305 |
| AT183658 | AT264438 | AR93238 | TH102798 |
| AT181250 | AT264439 | AT264430 | TH103324 |
| AT191198 | AT264437 | AR96274 | TH110035 |
| AT182708 | AH155040 | AR93239 | AT154868 |
| AR96583 | AR90892 | AH143519 | AT154869 |
| AR88791 | AT196470 | AH140198 | AT192098 |
| AR105293 | TH102827 | AT114822 | AT264443 |
| AR105637 | TH103347 | AT114836 | AT264444 |
| AT37322 | AT37323 | AT114831 | AT192095 |
| AT43470 | AR96524 | AH143521 | AT194335 |
| AT32943 | AT36451 | AT314427 | AH215765 |
Welcome OEM/ODM order. Please click "ask a question", or call us if you have a parts need that you do not see listed here.
