4614118 Boom Excavator Service Kit Cylinder Repair Kit Fits John Deere 210 Models
4614118 Boom Excavator Service Kit Cylinder Repair Kit Fits John Deere 210 Models
| Product Name | John Deere Boom Cylinder Repair Kit |
| Models | John Deere 210 |
| Part Number | 4614118 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| Size | OEM standard size |
| Position | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Feature | Sealing performance/ wear resistance |
| AppliC.A.Tion | Arm |
Parts on group Right Boom Cylinder:
| Pos. | Part No | Qty | Parts name |
| 0 | 9211142 | [1] | Hydraulic Cylinder |
| 1 | 875801 | [1] | Structural Tubing |
| 1A. | ........ | [1] | Tube |
| 1B. | 4352398 | [2] | Bushing |
| 2 | 875803 | [1] | Rod |
| 2A. | ........ | [1] | Rod |
| 2B. | 4355875 | [2] | Bushing |
| 3 | 875805 | [1] | Cylinder Head |
| 4 | AT264272 | [1] | Bushing |
| 5 | TH104944 | [1] | Snap Ring |
| 6 | H227911 | [1] | Seal |
| 7 | H227912 | [1] | Seal |
| 8 | AT309614 | [1] | Back-Up Ring |
| 9 | H155911 | [1] | Seal |
| 10 | AT264339 | [1] | O-Ring |
| 11 | AT264363 | [1] | Back-Up Ring |
| 12 | 19M8931 | [12] | Screw |
| 13 | H155920 | [1] | Ring |
| 14 | H155919 | [1] | Seal |
| 15 | 737505 | [1] | Piston |
| 16 | AT264361 | [1] | Seal |
| 17 | 496706 | [2] | Back-Up Ring |
| 18 | 926604 | [2] | O-Ring |
| 19 | AT264362 | [2] | Piston Ring |
| 20 | 400909 | [1] | Shim |
| 21 | 776406 | [1] | Nut |
| 22 | 22M6684 | [1] | Set Screw |
| 23 | T13624 | [1] | Ball |
| 25 | TH102446 | [2] | Seal |
| 27 | TH102445 | [2] | Seal |
| 28 | AH233833 | [1] | Oil Line |
| 29 | 875809 | [1] | Line |
| 30 | AT264348 | [1] | O-Ring |
| 31 | M800636 | [4] | Screw |
| 31 | 19M8444 | [4] | Screw |
| 32 | AT264360 | [1] | O-Ring |
| 33 | 19M8213 | [4] | Screw |
| 33 | 19M8337 | [4] | Screw |
| 34 | 875808 | [1] | Band |
| 35 | 309017 | [1] | Clamp |
| 36 | 19M7550 | [2] | Cap Screw |
| 37 | 12M7066 | [2] | Lock Washer |
| 38 | 0236915J | [2] | Holder |
| 39 | 19M4789 | [1] | Cap Screw |
| 40 | 12H317 | [1] | Lock Washer |
| 41 | TH100074 | [1] | LubriC.A.Tion Fitting |
| 45 | ........ | [1] | Kit |
| 50 | 4614118 | [1] | Seal Kit |
Basic Requirements For Sealing Materials:
- The performance of the sealing material is an important factor to ensure effective sealing. The selection of the sealing material is mainly based on the working environment of the sealing element, such as the temperature, the working pressure, the working medium used, and the movement mode. The basic requirements for sealing materials are as follows:
1. Have certain mechanical properties, such as tensile strength, elongation, etc.;
2. Appropriate elasticity and hardness, small compression set;
3. High temperature and low temperature resistance, no decomposition or softening at high temperature, and no hardening at low temperature;
4. It is compatible with the working medium, without swelling, decomposition, hardening, etc.;
5. Good oxygen resistance and aging resistance, durable;
6. Abrasion resistance, no corrosion to metal;
7. Easy to shape and process, low price.
Product C.A.Tegories:
| Hydraulic cylinder seal kit | Center joint seal kit |
| Transmission Seal Kit | Control valve seal kit |
| breaker hammer seal kit | Hydraulic pump seal kit |
| Travel motor seal kit | Main pump seal kit |
| Swing motor seal kit | Gear pump seal repair kit |
| Adjuster seal kit | Pilot valve seal kit |
| O-ring kit box | Hydraulic seal |
| Pump gasket | Regulator valve seal kit |

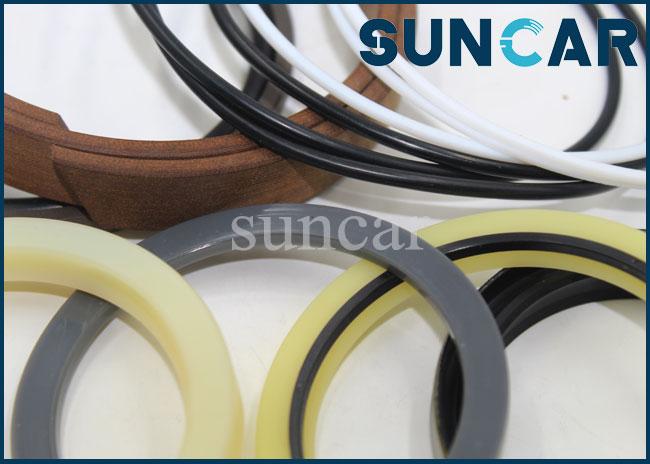

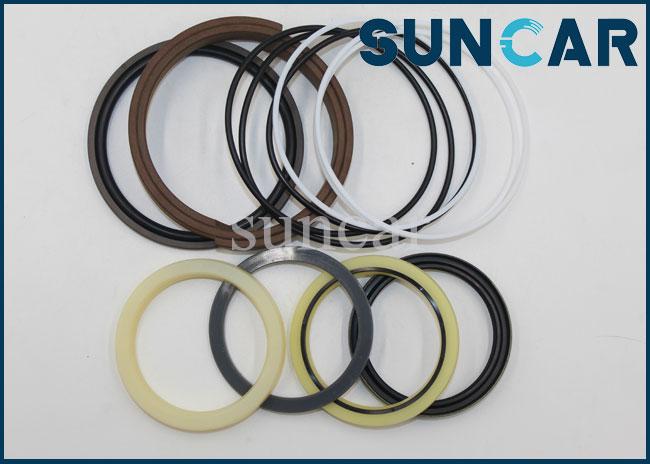

Product Show:
