4654422 Arm Cylinder Seal Repair Service Kit For Models 220DW John Deere Construction Machinery
4654422 Arm Cylinder Seal Repair Service Kit For Models 220DW John Deere Construction Machinery
| Product Name | John Deere Arm Cylinder Seal Repair Service Kit |
| Models | John Deere 220DW |
| Part Number | 4654422 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| Size | OEM standard size |
| Position | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Feature | Sealing performance/ wear resistance |
| AppliC.A.Tion | Arm |
Our Product Range:
* Hydraulic pump seal kit
* Control valve seal kit
* O ring kit box
* Gear pump seal kit
* Travel motor seal kit
* Swing motor seal kit
* Pilot valve seal kit/PPC seal
* Adjuster seal kit
* Center joint seal kit
* Boom cylinder seal kit
* Arm cylinder seal kit
* Bucket cylinder seal kit
* Breaker hammer seal kit
Related Parts:
| Pos. | Part No | Qty | Parts name |
| 0 | 9234748G | [1] | Hydraulic Cylinder |
| 1 | 1100501G | [1] | Hydraulic Cylinder Barrel |
| 1 | PG201203 | [1] | Hyd Cylinder Barrel Reman |
| 1A. | ........ | [1] | Hydraulic Cylinder Barrel |
| 1B. | 4352399 | [2] | Bushing |
| 2 | AH225127G | [1] | Rod |
| 2 | AH234560 | [1] | Rod |
| 2A. | PG201204 | [1] | Hydraulic Cylinder Rod |
| 2B. | 4352399 | [2] | Bushing |
| 3 | H178686 | [1] | Hydr. Cylinder Rod Guide |
| 4 | T108050 | [1] | Wear Ring |
| 5 | TH102766 | [1] | Snap Ring |
| 6 | H227909 | [1] | Seal |
| 7 | H227910 | [1] | Seal |
| 8 | H155310 | [1] | Back-Up Ring |
| 9 | H155311 | [1] | Seal |
| 10 | H178690 | [1] | O-Ring |
| 11 | H178691 | [1] | Back-Up Ring |
| 12 | 19M8913 | [12] | Screw |
| 13 | H227903 | [1] | Ring |
| 14 | H227908 | [1] | Seal |
| 15 | H227625 | [1] | Piston |
| 16 | AH173446 | [1] | Ring |
| 17 | H178694 | [2] | Back-Up Ring |
| 18 | H227905 | [2] | Ring |
| 19 | H178696 | [2] | Back-Up Ring |
| 20 | H228111 | [1] | Set Screw |
| 21 | R26552 | [1] | Ball |
| 22 | H227904 | [1] | Ring |
| 23 | H155322 | [1] | Seal |
| 24 | H155329 | [2] | Ring |
| 25 | H155330 | [1] | Piston Ring |
| 27 | TH102446 | [4] | Seal |
| 28 | H227915 | [1] | Hydraulic Cylinder Port |
| 29 | AH234566 | [1] | Oil Line |
| 30 | AT264348 | [2] | O-Ring |
| 31 | 19M8448 | [8] | Screw |
| 32 | AH234562 | [1] | Clamp |
| 33 | H227901G | [1] | Clamp |
| 34 | 19M7550 | [2] | Cap Screw |
| 35 | 12M7066 | [2] | Lock Washer |
| 36 | 0309219G | [1] | Half Clamp |
| 37 | 19M8348 | [1] | Cap Screw |
| 38 | 12M7067 | [1] | Lock Washer |
| 39 | AH226482 | [1] | LubriC.A.Tion Fitting |
| 60 | PG200114G | [1] | Hydraulic Cylinder Reman |
| 80 | 962110 | [1] | Clamp Kit |
| 90 | 4654422 | [1] | Seal Kit |
| 90 | AH225135 | [1] | Hydraulic Cylinder Kit |
Hydraulic Seal Installation Requirements:
1. The sealing surface of hydraulic seal gasket and flange should be clean.
2. The outer diameter of the hydraulic seal gasket should be smaller than the flange sealing surface, and the inner diameter should be slightly larger than the pipe inner diameter.
3. The pretension of the gasket shall not exceed the design requirements.
4. Torque wrenches are best used when packing asbestos gaskets.
5. When installing the gasket, tighten the nuts one by one.
6. In case of leakage, step-down treatment must be carried out after installation, and the sealing gasket must be replaced or adjusted.
Guarantee:
If you find any quality problems when the goods arrive, please contact us. If this is indeed our responsibility, we will resend the same parts for you free of charge in the next batch of orders. We hope to cooperate with you for a long time. With careful consideration, we can help you win a good reputation from consumers in terms of quality, delivery speed, packaging, etc.

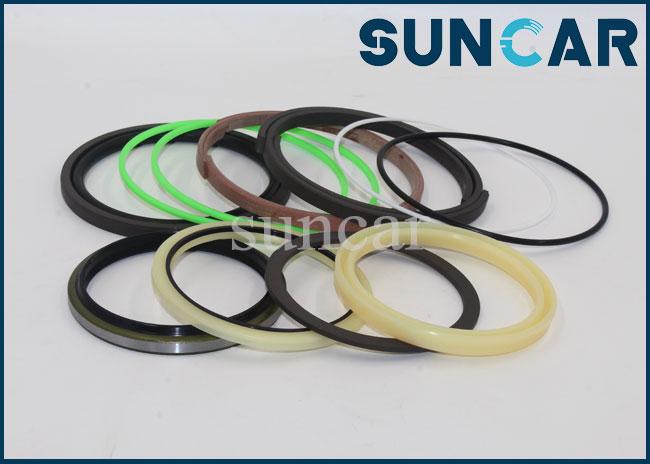

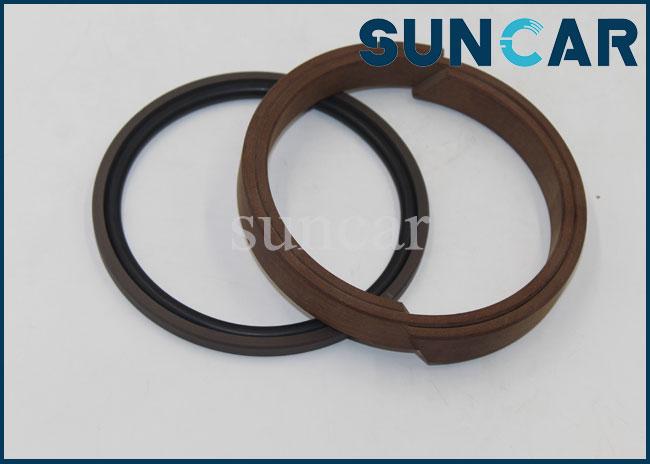

Product Image:
