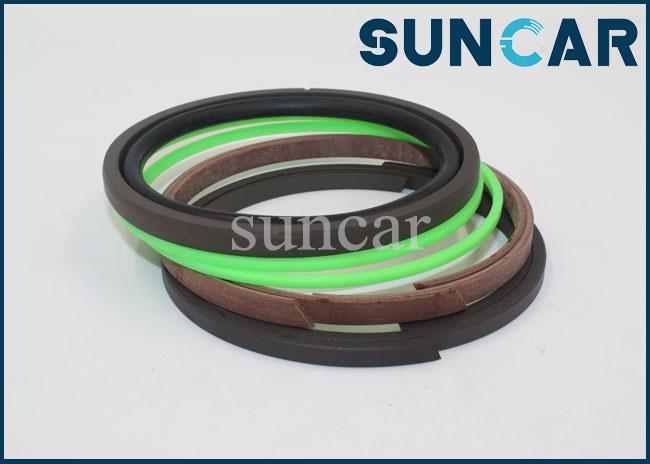

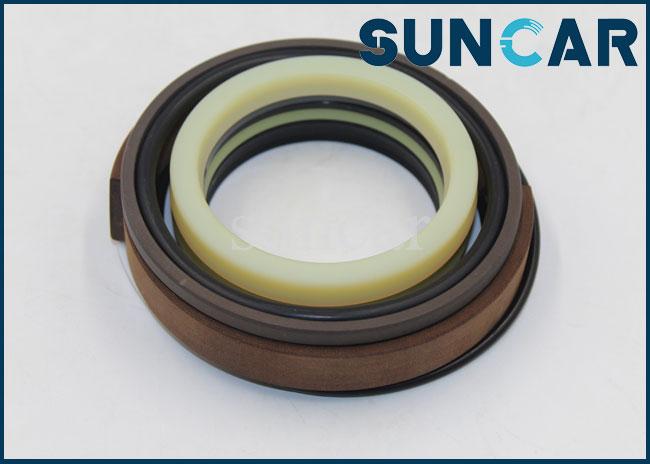

Boom Cylinder Kits 4662889 Hydraulic Repair Sealing Kit Fits John Deere 220DW
Boom Cylinder Kits 4662889 Hydraulic Repair Sealing Kit Fits John Deere 220DW
| Product Name | John Deere Boom Cylinder Sealing Kit |
| Models | John Deere 220DW |
| Part Number | 4662889 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| Size | OEM standard size |
| Position | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Feature | Sealing performance/ wear resistance |
| AppliC.A.Tion | Boom |
Related Parts:
| Pos. | Part No | Qty | Parts name |
| 0 | ........ | [1] | Cylinder |
| 1 | 1134801 | [1] | Tube |
| 1 | PG201173 | [1] | Hyd Cylinder Barrel Reman |
| 1A. | ........ | [1] | Tube |
| 1B. | 4352398 | [2] | Bushing |
| 2 | 1134802 | [1] | Hydraulic Cylinder Rod |
| 2 | PG201174 | [1] | Hyd Cylinder Rod Reman |
| 2A. | ........ | [1] | Rod |
| 2B. | 4355875 | [2] | Bushing |
| 3 | 875805 | [1] | Cylinder Head |
| 4 | AT264272 | [1] | Bushing |
| 5 | TH104944 | [1] | Snap Ring |
| 6 | H227911 | [1] | Seal |
| 7 | 4S00660 | [1] | Packing |
| 8 | AT309614 | [1] | Back-Up Ring |
| 9 | H155911 | [1] | Seal |
| 10 | AT264339 | [1] | O-Ring |
| 11 | TH104956 | [1] | Back-Up Ring |
| 12 | 19M8931 | [12] | Screw |
| 13 | H155920 | [1] | Ring |
| 14 | H155919 | [1] | Seal |
| 15 | 1134804 | [1] | Set Screw |
| 16 | AT264361 | [1] | Seal |
| 17 | 4S00778 | [2] | Back-Up Ring |
| 18 | 4S00708 | [2] | Ring |
| 19 | TH104949 | [2] | Piston Ring |
| 20 | 1134804 | [1] | Set Screw |
| 21 | T13624 | [1] | Ball |
| 23 | TH102446 | [2] | Seal |
| 25 | TH102445 | [2] | Seal |
| 26 | 4680378G | [1] | Oil Line |
| 27 | 4680379G | [1] | Oil Line |
| 28 | AT264348 | [1] | O-Ring |
| 29 | 19M8448 | [4] | Screw |
| 30 | AT264360 | [1] | O-Ring |
| 31 | 19M7662 | [4] | Cap Screw |
| 32 | 875808 | [1] | Band |
| 33 | 309017 | [1] | Clamp |
| 34 | 19M7550 | [2] | Cap Screw |
| 35 | 12M7066 | [2] | Lock Washer |
| 36 | 0236915G | [2] | Half Clamp |
| 37 | 19M4789 | [1] | Cap Screw |
| 38 | 12H317 | [1] | Lock Washer |
| 39 | TH100074 | [1] | LubriC.A.Tion Fitting |
| 60 | PG200502G | [1] | Hydraulic Cylinder Reman |
| 80 | ........ | [1] | Kit |
| 90 | 4662889 | [1] | Seal Kit |
ClassifiC.A.Tion And Function Of Hydraulic Cylinder Seal Kit:
- Hydraulic cylinder seal kits are used to seal the gap between different parts of the hydraulic cylinder. Within the system, there are 2 main types of hydraulic seals:
- Dynamic seals: Designed to seal various parts in relative motion. They can be utilized in high pressure and even when rod and hydraulic cylinder seals are in reciprocal motion between the head and the connecting rod.
- Static seals: Our static seal kit seal parts that are not in relative motion. These are used in various loC.A.Tions as per the construction and look of the hydraulic cylinder. The connection rod and piston is the primary area where these seals are used.
When You Open And Repair The Cylinder, Please Follow Below Operation:
1. Take off the cylinder from the machine.
2. Remove the head assembly and the rod assembly from the stick cylinder group.
3. If it always happens that the seal kit not perform well soon after it fitted, there maybe problem of the cylinder assembly itself. It is better to check the cylinder assembly whether need to change it.
4. Measure the seal kits before fitting.
5. Install the seals: after fix the cylinder assy, test it first before re-install the stick cylinder group on the machine.
Customer Service:
- If you are interested in our products or have any questions, you can send us an email through the mail system or contact us on social media.
- Normally, the email will be replied within 24 hours; except every Sunday and holiday. When we return to the office, we will reply as soon as possible
- If you do not find the product you need, please send us an email with a picture, and we will be happy to help you.
- Positive feedback is very important to us.
The pictures are for reference only and the physical drawings shall prevail. If you have any questions, please contact our technical support team.
