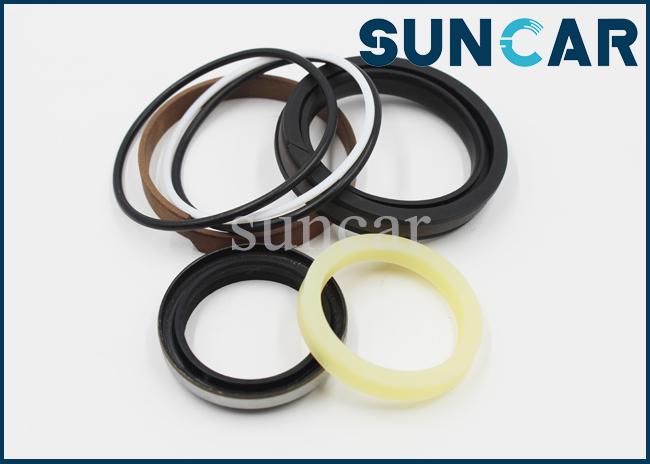

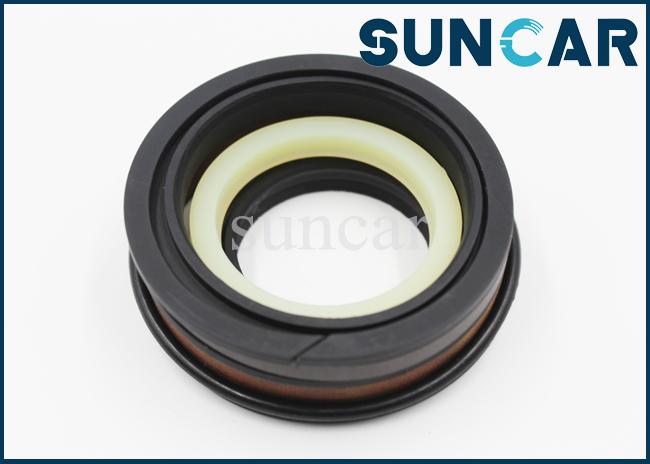

707-98-12790 Blade Cylinder Sealing Kit Cylinder Service Kit For Komatsu excavator PC16R-3
707-98-12790 Blade Cylinder Sealing Kit Cylinder Service Kit For Komatsu Excavator PC16R-3
| 707-98-12790 Blade Cylinder Sealing Kit Cylinder Service Kit For Komatsu Excavator PC16R-3 | |||
| Model No. | Komatsu PC16R-3 Excavator | Packing | PP bag,Carton,Wooden case or as Required |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ | MOQ | 1SET |
| Size | Standard size | Brand | SUNCAR |
| Hardness | 70-90 Shore A | Temperature | -35~220℃ |
| Pressure | 0~0.05Mpa | Feature | High pressure resistance, durability, corrosion resistance |
| Color | Black Brown Bule yellow and more | Loading Port | Huangpu Port, China |
| AppliC.A.Tion | Hydraulic cylinder system | Payment terms | T/T, Western union, paypal, |
| trade assurance or as require | |||
| CertifiC.A.Tes | ISO9001 | Delivery time | Within 5-7 days |
| Warranty | Unavailable | Shipment | By sea, by air, by express or as required |
Cause Of The Problem:
The Main Factors Causing Oil Seal Leakage
Loose Oil Seal Is The Main Cause Of Oil Leakage.When The Shaft Is Worn And Grooves Are Formed, Even If The Oil Seal Is Replaced, It Can Not Be Sealed, Because The Contact Pressure Between The Oil Seal Lip And The Shaft Drops, Resulting In Too Small Interference Between The Diameter Of The Oil Seal Lip And The Shaft Diameter After Installation.
1. The Oil Seal Manufacturing Quality Is Poor;
2. Poor Shaft Or Bearing Quality;
3. Improper Use And Maintenance;
4. Improper Installation;
5. Improper Storage, Caused By Environmental Pollution
PC16R-3 CYLINDER INNER PARTS:
| Pos. | Part Number | Part Name | QTY |
| 707-00-0X190 | BLADE CYLINDER ASSEMBLY | 1 | |
| 1 | 721-11-70A50 | CYLINDER | 1 |
| 2 | 707-76-35370 | BUSHING | 1 |
| 3 | 707-29-70821 | CYLINDER HEAD | 1 |
| 4 | 07177-03525 | BUSHING | 1 |
| 5 | 07179-12047 | RING, SNAP | 1 |
| 6 | 721-58-35510 | PISTON ROD | 1 |
| 7 | 707-76-35370 | BUSHING | 1 |
| 8 | 707-81-35120 | SPACER | 1 |
| 9 | 707-40-70580 | STOPPER | 1 |
| 10 | 707-36-70560 | PISTON | 1 |
| 11 | 707-67-27020 | NUT | 1 |
| 707-98-12790 | KIT, GASKET | 1 | |
| 12 | 02896-11008 | O-RING | 2 |
| 13 | 20A-70-12231 | SEAL, DUST | 2 |
| 14 | 707-51-35210 | GASKET | 1 |
| 15 | 175-63-75190 | RING, SEAL | 1 |
| 16 | 07000-12065 | O-RING | 1 |
| 17 | 07146-02066 | RING, BACK-UP | 1 |
| 18 | 07000-12070 | O-RING | 1 |
| 19 | 20A-70-12231 | SEAL, DUST | 2 |
| 20 | 07000-13035 | O-RING | 1 |
| 21 | 707-44-70180 | GASKET | 1 |
| 22 | 07156-00710 | PACKING, ROD | 1 |
