AH155040 Hydraulic Bucket Cylinder Kit Deere Seal Kits Fits 160LC 350GLC 350DLC Excavator
AH155040 Hydraulic Bucket Cylinder Kit Deere Seal Kits Fits 160LC 350GLC 350DLC Excavator
| Product Name | John Deere Hydraulic Bucket Cylinder Kit |
| Models | John Deere 160LC, 350GLC, 370C, 350DLC |
| Part Number | AH155040 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| Size | OEM standard size |
| Position | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Rod | 75 MM |
| Bore | 105 MM |
| Cylinder Number | AH155037 |
| Feature | Sealing performance/ wear resistance |
| AppliC.A.Tion | Bucket |
When You Open And Repair The Cylinder, Please Follow Below Operation:
1. Take off the cylinder from the machine.
2. Remove the head assembly and the rod assembly from the stick cylinder group.
3. If it always happens that the seal kit not perform well soon after it fitted, there maybe problem of the cylinder assembly itself. It is better to check the cylinder assembly whether need to change it.
4. Measure the seal kits before fitting.
5. Install the seals: after fix the cylinder assy, test it first before re-install the stick cylinder group on the machine.
Parts On Group Bucket Cylinder:
| Pos. | Part No | Qty | Parts name |
| 0 | ........ | [1] | Hydraulic Cylinder |
| 1 | AH155038 | [1] | Hydraulic Cylinder Barrel |
| 1 | PG201438 | [1] | Hyd Cylinder Barrel Reman |
| 1B. | H158235 | [1] | Bushing |
| 2 | AH234896 | [1] | Rod |
| 2 | PG201440 | [1] | Hyd Cylinder Rod Reman |
| 2B. | 140808 | [1] | Bushing |
| 3 | H158027 | [1] | Hydr. Cylinder Rod Guide |
| 4 | TH109311 | [1] | Wear Ring |
| 5 | TH109312 | [1] | Snap Ring |
| 6 | AH148777 | [1] | Ring |
| 7 | 240911 | [1] | Packing |
| 8 | 240912 | [1] | Back-Up Ring |
| 9 | H155867 | [1] | Seal |
| 10 | AT264319 | [1] | O-Ring |
| 11 | TH109318 | [1] | Back-Up Ring |
| 12 | 19M8930 | [12] | Screw |
| 13 | H163452 | [1] | Ring |
| 14 | H158463 | [1] | Piston |
| 15 | AT264387 | [1] | Ring |
| 16 | AT153919 | [2] | Back-Up Ring |
| 17 | H158459 | [2] | Scraper Ring |
| 18 | AT264388 | [2] | Ring |
| 19 | TH109328 | [1] | Shim |
| 20 | H158465 | [1] | Nut |
| 21 | 22M7009 | [1] | Set Screw |
| 22 | T13624 | [1] | Ball |
| 24 | TH100374 | [2] | Seal |
| 26 | TH104472 | [2] | Seal |
| 27 | 8086114J | [1] | Oil Line |
| 28 | AH234869 | [1] | Oil Line |
| 29 | 19M8337 | [8] | Screw |
| 30 | AT264360 | [2] | O-Ring |
| 31 | AH152929 | [1] | Clamp |
| 32 | H159705 | [1] | Band |
| 33 | 19M7550 | [2] | Cap Screw |
| 34 | 12M7066 | [2] | Lock Washer |
| 35 | H238070 | [1] | Clamp |
| 36 | 19M7362 | [1] | Cap Screw |
| 37 | 12M7058 | [1] | Lock Washer |
| 38 | TH100074 | [2] | LubriC.A.Tion Fitting |
| 51 | 4370785JEX | [1] | Hydraulic Cylinder Reman |
| 90 | AH155040 | [1] | Hydraulic Cylinder Kit |
Our Product Range:
- We set up the PTFE polymer materials, PU polyurethane and NBR materials seals producing line. All sealing products are widely used in different kinds of excavator and breaker hammer installation and maintenance systems, wining high reputation from the customers at home and abroad. Our factory :The following seal kits we also can supply:
* Hydraulic pump seal kit
* Control valve seal kit
* O ring kit box
* Gear pump seal kit
* Travel motor seal kit
* Swing motor seal kit
* Pilot valve seal kit/PPC seal
* Adjuster seal kit
* Center joint seal kit
* Boom cylinder seal kit
* Arm cylinder seal kit
* Bucket cylinder seal kit
* Breaker hammer seal kit

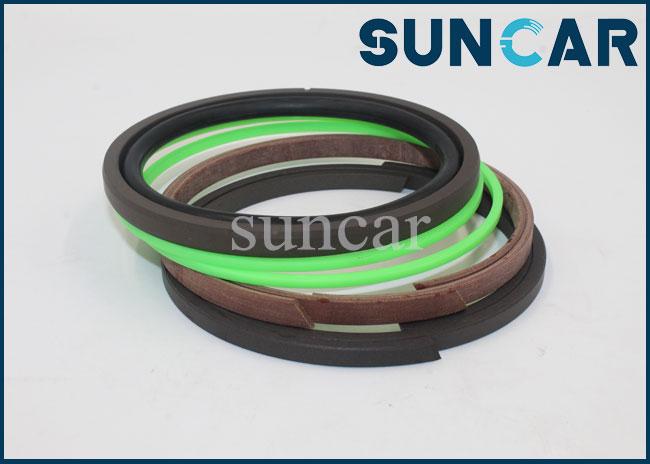

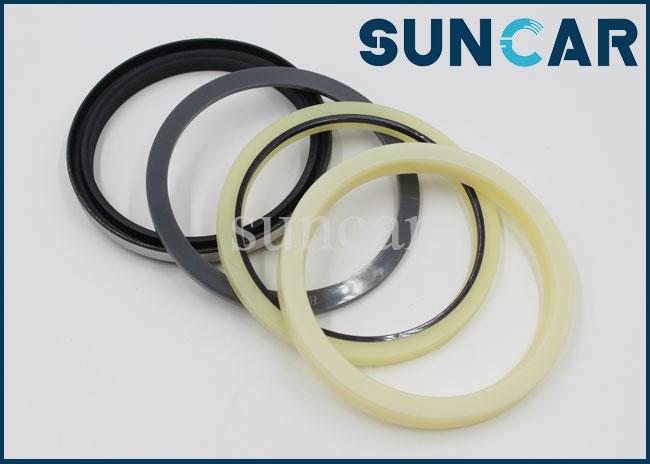

Product Show:
