Hydraulic Oil Seal Kits 4S00956 Arm Cylinder Repair Kit For John Deere 450LC 200LC 450CLC
Hydraulic Oil Seal Kits 4S00956 Arm Cylinder Repair Kit For John Deere 450LC 200LC 450CLC
| Product Name | John Deere Arm Cylinder Repair Kit |
| Models | John Deere 450LC, 750, 200LC, 450CLC |
| Part Number | 4S00956 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, L/C, T/T, D/A, D/P |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| Size | OEM standard size |
| Position | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Feature | Sealing performance/ wear resistance |
| AppliC.A.Tion | Arm |
Order Process:
1. Getting your inquiry (Including: machine model, part name, order quantity, data of items, delivery term)
2. Quoting our competitive price for you
3. Place an order after approving the quotation or products
4. We will send Proforma Invoice or sales confirmation
5. You prepay by T/T or L/C or Western Union through bank
6. We will starting to produce after we get your kind payment
7. Packing
8. Shipping the goods to your(our)forwarder
9. Sending all doc for your custom clearance
10. Time to reorder
Parts on group Arm Cylinder Components:
| Pos. | Part No | Qty | Parts name |
| 0 | 4340512JEX | [1] | Hydraulic Cylinder Reman |
| 1 | 420301 | [1] | Hydraulic Cylinder Barrel |
| 1 | PG201232 | [1] | Hyd Cylinder Barrel Reman |
| 1B. | 4660855 | [1] | Bushing |
| 2 | 420302 | [1] | Rod |
| 2B. | 4660855 | [1] | Bushing |
| 3 | 420303 | [1] | Cylinder Head |
| 4 | AT264250 | [1] | Bushing |
| 5 | 133709 | [1] | Snap Ring |
| 6 | AT264251 | [1] | Ring |
| 7 | AT264242 | [1] | Seal |
| 8 | AT264246 | [1] | Back-Up Ring |
| 9 | 417605 | [1] | Ring |
| 10 | AT264282 | [1] | Ring |
| 11 | AT264241 | [1] | O-Ring |
| 12 | AT264243 | [1] | Back-Up Ring |
| 13 | 4104472 | [8] | Bolt |
| 14 | 420304 | [1] | Bearing |
| 15 | ........ | [1] | Seal |
| 16 | 420306 | [1] | Piston |
| 17 | T201905 | [1] | Seal |
| 18 | AT264290 | [2] | Ring |
| 19 | AT264245 | [2] | Wear Ring |
| 20 | 353009 | [1] | Nut |
| 21 | 353010 | [1] | Shim |
| 22 | 353011 | [1] | Ball |
| 23 | 353012 | [1] | Set Screw |
| 25 | AT201578 | [4] | Ring |
| 56 | 4S00352J | [1] | Oil Line |
| 57 | 0420311J | [1] | Oil Line |
| 58 | AT264254 | [2] | O-Ring |
| 60 | 972307 | [2] | Clamp |
| 61 | 19M4789 | [2] | Cap Screw |
| 62 | 12H317 | [2] | Lock Washer |
| 63 | 19M7550 | [4] | Cap Screw |
| 64 | 12M7066 | [4] | Lock Washer |
| 65 | 353017 | [2] | Band |
| 66 | 353018 | Band | |
| 67 | 19M8803 | [8] | Screw |
| 89 | AT302758 | [1] | Seal Kit |
| 90 | 4438679 | [1] | Hydraulic Cylinder Kit |
| 90 | 4700430 | [1] | Seal Kit |
| 91 | 4S00956 | [1] | Seal Kit |
Some Part Number Of John Deere Cylinder Seal Kit:
| 4S00715 | RE21212 | RE11569 | RE14033 |
| 4S00961 | RE17342 | RE21201 | RE14032 |
| 4S00960 | RE18949 | RE11568 | RE11587 |
| 4S00959 | RE21400 | RE21195 | RE21196 |
| 4S00849 | RE21406 | RE12314 | 0843808 |
| 4S00847 | RE15906 | RE21394 | 0843907 |
| 4S00784 | RE21401 | RE18950 | 0844807 |
| 4S00956 | RE15907 | RE18951 | 0843613 |
| 4S00930 | RE12315 | RE15905 | 0844705 |
| 4S00783 | RE21210 | RE21214 | 0265107 |

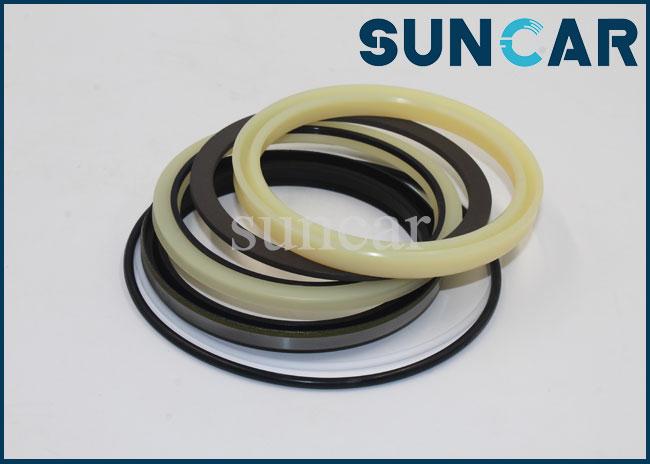

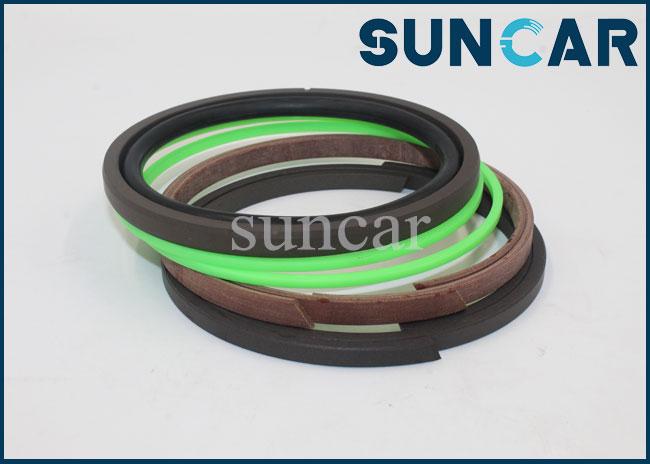

Product Image:
