707-99-57200 Komatsu Arm Cylinder Seal Kit For PC200-6 Overseas Version Excavator Inner Parts
707-99-57200 Komatsu Arm Cylinder Seal Kit For PC200-6 Overseas Version Excavator Inner Parts
| Product Name | Arm Cylinder Seal Kit |
| Part No. |
707-99-57200, 7079957200 |
| Model |
KOMATSU PC200-5Z, PC200-6, PC200-5, PC200-6H, PC200-6Z, PC200-5X, PC200-5T, PC400LC-6, PC400LC-6Z, PC410LC-5, PC410-5, PC200LC-6, PC210-6, PC220-5C, PC400-6, PC410-5, PC400-5... |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Feature | Resistance to high pressure, oil, weather, abrasion, solvent |
| Hardness | 70-95 Shore A |
| Color | Black, Blue, White or other |
| Size | Standard Size |
| MOQ | Trial order acceptable |
| Packing | PP bag inside, carton box outside(According to your requirements) |
| Delivery Time | 3-5 days after payment received(public holiday excluded) |
| Payment | Western Union, L/C, T/T, , D/A, D/P |
| Port | HUAGNPU,China (Mainland) |
| Express | Fedex, TNT, UPS, DHL |
| Customized | OEM & ODM are welcomed |
| AppliC.A.Tion | Arm |
| Condition | New |

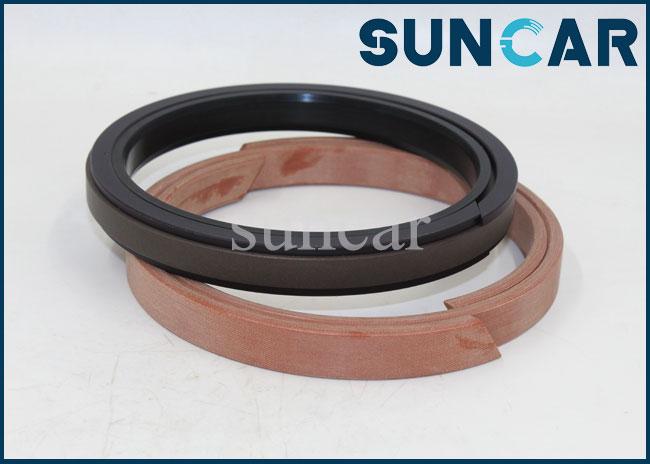

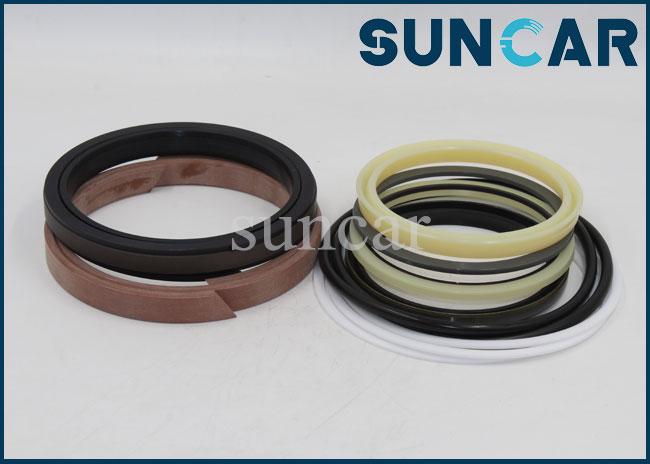

Product Show:
The Role Of The Seal:
(1) Each of the dynamic seals confine a hydraulic cylinder, which contains a specific perform that contribute towards the system’s performance:
(2) Rod seal: Acts a pressure barrier and helps the operational fluid inside of the cylinder to regulate the fluid film extending with the connecting rod’s surface. This is essential in inhibiting the corrosion of the rod and the lubriC.A.Tion of the wiper seal.
(3) Piston seal: Acts as a barrier to the pressure and prevents the fluid from passing the piston. Necessary for maintaining the position when at rest or for the cylinder’s dominant motion.
(4) Buffer seal: The rod seal is protected against fluid pressure peaks that can lead to fluctuating the system pressure with the help of buffer seals.
(5) Wiper seal: It is designed to prevent external contaminants from coming inside the assembly of the cylinder.
(6) (Rod and piston) functions: Prevents contact of metal-to-metal between parts, leading to keeping the piston and connecting rod accurately centered within the assembly of the cylinder. Helps in improving performance of the piston and rod waterproofing system.

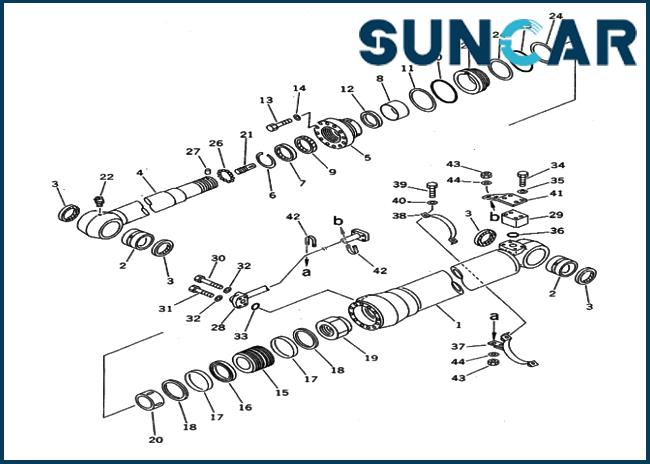

Related Parts:
| Pos. | Part No. | Parts Name | QTY. |
| 3 | 707-99-57200 | SERVICE KIT,ARM | 1 |
| 3 | 07145-00080 | • SEAL,DUST | 4 |
| 3 | 707-56-95510 | • SEAL,DUST | 1 |
| 3 | 707-51-95030 | • PACKING,ROD | 1 |
| 3 | 07000-15130 | • O-RING | 2 |
| 3 | 07001-05130 | • RING,BACK-UP | 3 |
| 3 | 707-51-95630 | • RING,BUFFER | 1 |
| 3 | 707-44-13280 | • RING,PISTON | 1 |
| 3 | 707-39-13510 | • RING,WEAR | 2 |
| 3 | 07000-13030 | • O-RING | 1 |
| 3 | 07000-13035 | • O-RING | 1 |
Thanks for viewing our listings. Please click "ask a question", or call us if you have a parts need that you do not see listed here. We will do our best to loC.A.Te the parts you need, and make every effort to save you money.
