AT264445 Bucket Hydraulic Seal Repair Kit 495D 490 John Deere Mechanical Sealing Parts
AT264445 Bucket Hydraulic Seal Repair Kit 495D 490 John Deere Mechanical Sealing Parts
| Product Name | John Deere Bucket Hydraulic Seal Repair Kit |
| Models | John Deere 495D, 490 |
| Part Number | AT264445 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, L/C, T/T, D/A, D/P |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| Size | OEM standard size |
| Position | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Rod | 65 MM |
| Bore | 95 MM |
| Cylinder Number | AT1842468 |
| Feature | Sealing performance/ wear resistance |
| AppliC.A.Tion | Bucket |
Types Of Seals:
Piston Seal: SPGW, SPGW2, SPGWV, SPGO, SPGA, OK, GKS/YS, KDAS/DAS, SPG, SPGM, SPGN, SPGC, OHM, CPI, CPH, ODI, OSI, OUIS, OUHR, OKH, OUY.
Piston Rod Seal: IDI, ISI, IUIS, IUH, PTB, H605, SPNO, SPN, SPNS, SPNC, U-CUP.
Piston And Piston Rod Seal: UPI, USI, UPH, USH, V99F, V96H, UN, UHS, UNS.
Buffer Seal: HBY, HBTS, HBTY, URE.
Dust seal for ReciproC.A.Ting Motion: DKI, DWI, DWIR, DKBI, DKBI3, DKBZ, DKH, DKB, GA, DSI, LBI, LBH, LBHK, DSPB, DHS, FA, LPI, A1, GHP, DKC.
Dust Seal for Shake: DLI, DLI2, VAY.
Oil Seal: SC, SB, TC, TB, TCK, VC, VB, KC, KB, TCZ, TCV, TCN, TC4, TB4, TCJ, SA1J, VAJ, KA3J, DC, DB, OC, etc.
Product C.A.Tegories:
| Hydraulic cylinder seal kit | Center joint seal kit |
| Transmission Seal Kit | Control valve seal kit |
| breaker hammer seal kit | Hydraulic pump seal kit |
| Travel motor seal kit | Main pump seal kit |
| Swing motor seal kit | Gear pump seal repair kit |
| Adjuster seal kit | Pilot valve seal kit |
| O-ring kit box | Hydraulic seal |
| Pump gasket | Regulator valve seal kit |
Related Parts:
| Pos. | Part No | Qty | Parts name |
| 1 | 4227371 | [1] | Hydraulic Cylinder Barrel |
| 1A. | 310513 | [1] | Bushing |
| 2 | 4227372 | [1] | Rod |
| 2A. | 174403 | [1] | Bushing |
| 3 | 310603 | [1] | Cylinder Head |
| 4 | AT264389 | [1] | Wear Ring |
| 5 | 4510494 | [1] | Snap Ring |
| 6 | AT264376 | [1] | Ring |
| 7 | AT264374 | [1] | Seal |
| 8 | AT264375 | [1] | Back-Up Ring |
| 9 | AT264390 | [1] | Ring |
| 10 | H158164 | [1] | Scraper Ring |
| 11 | CH18696 | [1] | Packing |
| 12 | AT264391 | [1] | Back-Up Ring |
| 13 | M341656 | [8] | Bolt |
| 14 | 310607 | [1] | Piston |
| 15 | AT264392 | [1] | Ring |
| 16 | AT264393 | [2] | Ring |
| 17 | AT264394 | [2] | Ring |
| 18 | 310611 | [1] | Nut |
| 19 | 22M7139 | [1] | Set Screw |
| 20 | 400R | [1] | Ball |
| 21 | 310613 | [1] | Shim |
| 22 | AT264445 | [1] | Seal Kit |
| 31 | TH100074 | [1] | LubriC.A.Tion Fitting |
| 32 | T116334 | [1] | LubriC.A.Tion Fitting |
| 33 | ........ | [1] | Cylinder |
| 33 | AT182453 | [1] | Cylinder |
| 54 | 4S00336 | [1] | Line |
| 55 | 310615 | [1] | Line |
| 56 | ........ | [2] | O-Ring |
| 57 | 19M8439 | [8] | Screw |
| 58 | 310616 | [2] | Clamp |
| 59 | 19M7493 | [2] | Cap Screw |
| 60 | 12M7058 | [2] | Lock Washer |
| 63 | 19M7550 | [4] | Cap Screw |
| 64 | 12M7066 | [4] | Lock Washer |
| 65 | 310618 | [2] | Band |
| 66 | 310619 | [2] | Band |
| 67 | ........ | [2] | Seal |

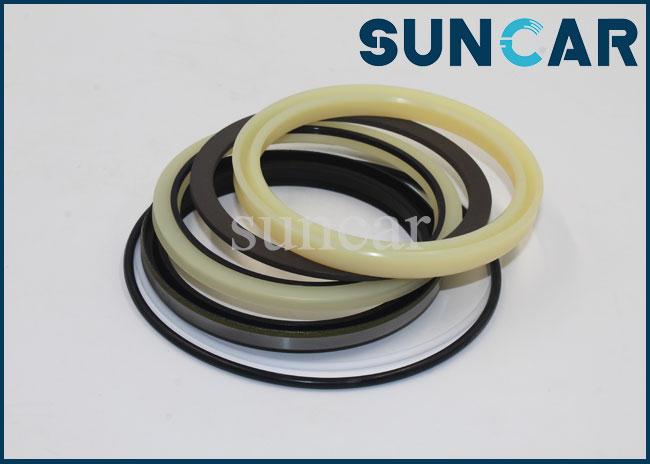

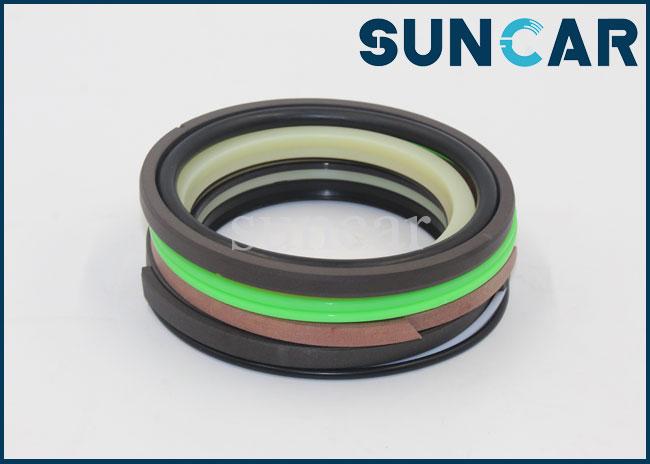

Product Image:
