4369892 Arm Cylinder Repair Service Kit 490E JOHN DEEERE Excavator Seal Kits
Price:
Negotiation
MOQ:
Trial order acceptable
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
4369892 Arm Cylinder Repair Service Kit 490E JOHN DEEERE Excavator Seal Kits
| Product Name | John Deere Arm Cylinder Repair Service Kit |
| Models | John Deere 490E |
| Part Number | 4369892 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, L/C, T/T, D/A, D/P |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| Size | OEM standard size |
| Position | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Rod | 70 MM |
| Bore | 105 MM |
| Feature | Sealing performance/ wear resistance |
| AppliC.A.Tion | Arm |
Parts On Group Arm Cylinder:
| Pos. | Part No | Qty | Parts name |
| 0 | AT264186 | [1] | Hydraulic Cylinder Reman |
| 1 | 4286461 | [1] | Barrel |
| 1A. | 140808 | [1] | Bushing |
| 2 | 4286462 | [1] | Rod |
| 2B. | 140808 | [1] | Bushing |
| 3 | 409003 | [1] | Cylinder Head |
| 4 | AT264314 | [1] | Wear Ring |
| 5 | AT132690 | [1] | Snap Ring |
| 6 | AT264261 | [1] | Ring |
| 7 | AT264357 | [1] | Seal |
| 8 | AT264358 | [1] | Back-Up Ring |
| 9 | AT264276 | [1] | Ring |
| 10 | AT264223 | [1] | O-Ring |
| 11 | AT264259 | [1] | Back-Up Ring |
| 12 | 408805 | [12] | Screw |
| 13 | 409005 | [1] | Bearing |
| 14 | 409006 | [1] | Seal |
| 15 | H155876 | [1] | Piston |
| 16 | AT264386 | [1] | Ring |
| 17 | AT264262 | [2] | Back-Up Ring |
| 18 | AT264263 | [2] | Ring |
| 19 | AT153830 | [2] | Ring |
| 20 | AT153937 | [1] | Shim |
| 21 | 409011 | [1] | Nut |
| 22 | 22M6684 | [1] | Set Screw |
| 23 | T13624 | [1] | Ball |
| 24 | AT153939 | [1] | Bearing |
| 25 | 409013 | [1] | Seal |
| 26 | AT153941 | [2] | Stop |
| 27 | AT153942 | [1] | Ring |
| 28 | AT264260 | [2] | Ring |
| 40 | TH100074 | [1] | LubriC.A.Tion Fitting |
| 41 | TH104472 | [4] | Seal |
| 59 | ........ | [1] | Universal Joint |
| 59 | 796601 | [1] | Universal Joint |
| 60 | 4S00332 | [1] | Line |
| 61 | AT264360 | [2] | O-Ring |
| 62 | 19M8213 | [8] | Screw |
| 63 | 409018 | [1] | Band |
| 64 | 327410 | [1] | Band |
| 65 | 19M7550 | [2] | Cap Screw |
| 66 | 12M7066 | [2] | Lock Washer |
| 67 | H238070 | [1] | Clamp |
| 68 | 19M7361 | [1] | Cap Screw |
| 69 | 12M7058 | [1] | Lock Washer |
| 70 | 4174542 | [1] | Drain Plug |
| 70A. | AT318035 | [1] | O-Ring |
| 71 | ........ | [1] | Seal Kit |
| 72 | A853166 | [1] | Adapter Fitting |
| 73 | 19M7662 | [4] | Cap Screw |
| 74 | 12M7066 | [4] | Lock Washer |
| 75 | 4369892 | [1] | Seal Kit |
Product C.A.Tegories:
| Hydraulic cylinder seal kit | Center joint seal kit |
| Transmission Seal Kit | Control valve seal kit |
| breaker hammer seal kit | Hydraulic pump seal kit |
| Travel motor seal kit | Main pump seal kit |
| Swing motor seal kit | Gear pump seal repair kit |
| Adjuster seal kit | Pilot valve seal kit |
| O-ring kit box | Hydraulic seal |
| Pump gasket | Regulator valve seal kit |
Seal ClassifiC.A.Tion:
- Static seal: There are three main C.A.Tegories: gasket seal, sealant seal and direct contact seal. According to the working pressure, static sealing can be divided into medium and low pressure static sealing and high pressure static sealing. Medium and low pressure static seals usually use softer and wider gasket seals, while high-pressure static seals use harder metal gaskets with a narrow contact width.
- Dynamic seal: It can be divided into two basic types: rotary seal and reciproC.A.Ting seal.

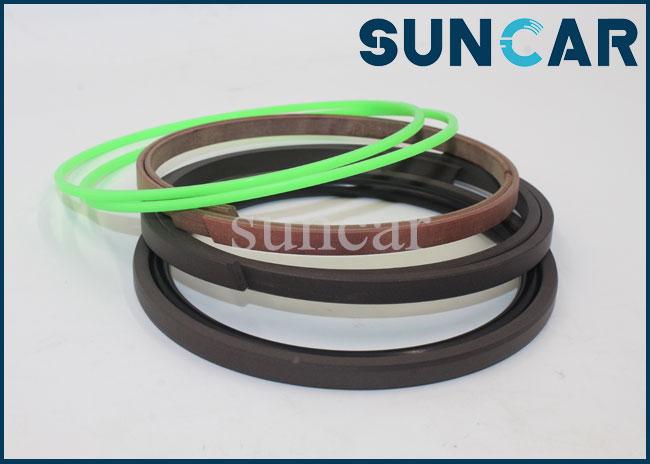

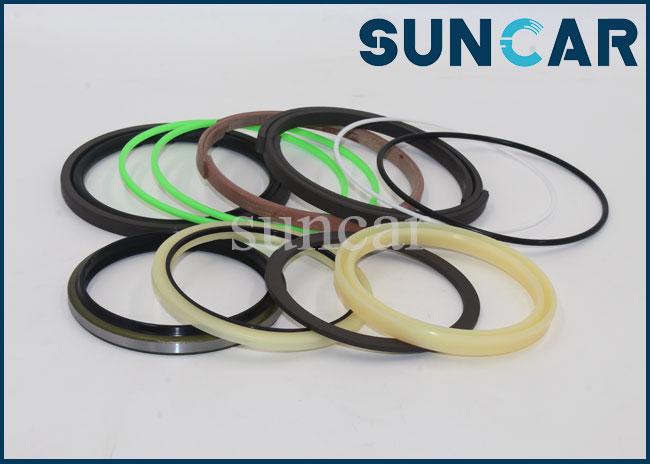

Product Image:
