AT192075 Hydraulic Repair Oil Seal Kit Fits John Deere Excavator Arm Cylinder 590D
AT192075 Hydraulic Repair Oil Seal Kit Fits John Deere Excavator Arm Cylinder 590D
| Product Name | John Deere Hydraulic Repair Seal Kit |
| Models | John Deere 595D, 590D |
| Part Number | AT192075 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, L/C, T/T, D/A, D/P |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| Size | OEM standard size |
| Position | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Feature | Sealing performance/ wear resistance |
| AppliC.A.Tion | Arm |
|
Rod |
85 MM |
|
Bore |
120 MM |
About Oil Seal Use Guides:
- Oil seals that are not used temporarily should be kept properly to prevent contamination with oil, dust or sun exposure.
- When the shaft diameter is worn into a "V"-shaped groove, so that the contact pressure between the new oil seal lip and the shaft cannot be reduced, the displacement method can be used to make up.
- When the lubriC.A.Ting oil volume of the reducer is less than or equal to 7 liters, the amount of lubricant added per liter is 20-30ml;
- When 7-15 liters, the amount added is 15-20ml per liter of lubriC.A.Ting oil;
- When>15 liters, add 10ml per liter of lubriC.A.Ting oil.
Hydraulic Seal Installation Requirements:
1. The sealing surface of hydraulic seal gasket and flange should be clean.
2. The outer diameter of the hydraulic seal gasket should be smaller than the flange sealing surface, and the inner diameter should be slightly larger than the pipe inner diameter.
3. The pretension of the gasket shall not exceed the design requirements.
4. Torque wrenches are best used when packing asbestos gaskets.
5. When installing the gasket, tighten the nuts one by one.
6. In case of leakage, step-down treatment must be carried out after installation, and the sealing gasket must be replaced or adjusted.
Related Parts:
| Pos. | Part No | Qty | Parts name |
| 1 | ........ | [1] | Hydraulic Cylinder Barrel |
| 2 | 140808 | [1] | Bushing |
| 3 | 4228674 | [1] | Rod |
| 4 | 174403 | [1] | Bushing |
| 5 | 327603 | [1] | Cylinder Head |
| 6 | H155911 | [1] | Seal |
| 7 | 19M8131 | [8] | Screw |
| 8 | T108021 | [1] | Ring |
| 9 | AT309614 | [1] | Back-Up Ring |
| 10 | H227912 | [1] | Seal |
| 11 | AT309612 | [1] | Ring |
| 12 | AT264272 | [1] | Bushing |
| 13 | TH104944 | [1] | Snap Ring |
| 14 | AT264359 | [1] | Back-Up Ring |
| 15 | AT264342 | [1] | O-Ring |
| 16 | 327604 | [1] | Sleeve |
| 17 | AT264356 | [2] | Wear Ring |
| 18 | AT264317 | [2] | Wear Ring |
| 19 | 309308 | [1] | Piston |
| 20 | AT264355 | [1] | Seal |
| 21 | T108030 | [1] | Shim |
| 22 | 309010 | [1] | Nut |
| 23 | T13624 | [1] | Ball |
| 24 | 22M6684 | [1] | Set Screw |
| 25 | TH100074 | [1] | LubriC.A.Tion Fitting |
| 26 | ........ | [1] | Hydraulic Cylinder |
| 27 | 327605 | [1] | Line |
| 27 | 327608 | [1] | Tube |
| 28 | AT264360 | [2] | O-Ring |
| 29 | 19M8213 | [8] | Screw |
| 29 | 19M8337 | [8] | Screw |
| 30 | 309313 | [1] | Clamp |
| 31 | H238070 | [3] | Clamp |
| 32 | 12M7058 | [3] | Lock Washer |
| 33 | 19M7361 | [3] | Cap Screw |
| 34 | 327607 | [2] | Band |
| 35 | T108048 | [1] | Clamp |
| 36 | 19M7550 | [4] | Cap Screw |
| 37 | 12M7066 | [4] | Lock Washer |
| 38 | ........ | [1] | Pipe |
| 38 | 327609 | [1] | Line |
| 39 | AT192075 | [1] | Seal Kit |

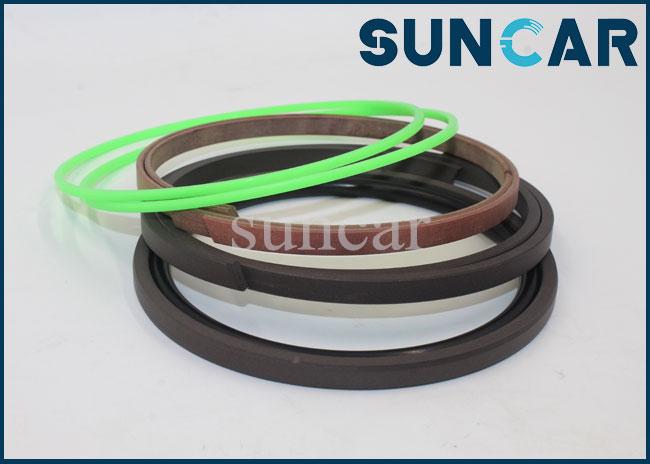

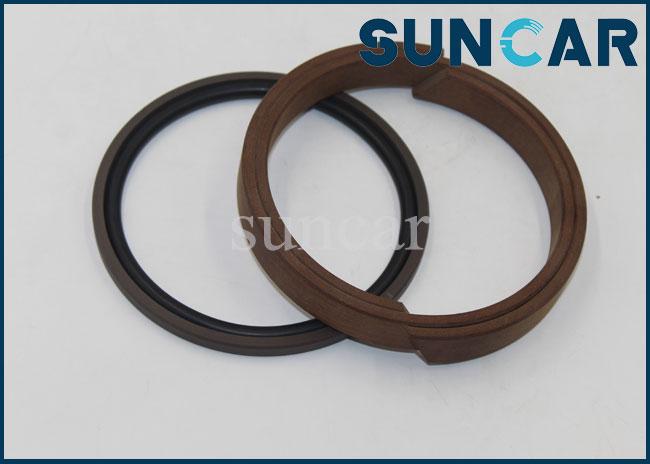

Product Show:
